• Preferred ACL — Indicates if packets are first matched to an IP based ACL or a MAC based ACL.
The possible field values are:
– IP Based ACLs — Matches packets to IP based ACLs first, then matches packets to MAC
based ACLs.
– MAC Based ACLs — Matches packets to MAC based ACLs first, then matches packets to IP
based ACLs.
• IP ACL — Matches packets to IP based ACLs first, then matches packets to MAC based ACLs.
• Match — Criteria used to match IP addresses and /or MAC addresses with an ACL’s address.The
possible field values are:
– And — Both the MAC-based and the IP-based ACL must match a packet.
– Or — Either the MAC-based or the IP-based ACL must match a packet.
• MAC ACL — Matches packets to MAC based ACLs first, then matches packets to IP based ACLs.
3. Define the relevant fields.
4. Click Apply. QoS mapping is added, and the device is updated.
Defining Aggregate Policer
1. Click Quality of Service > Advanced > Aggregate Policer. The Aggregate Policer Page opens:

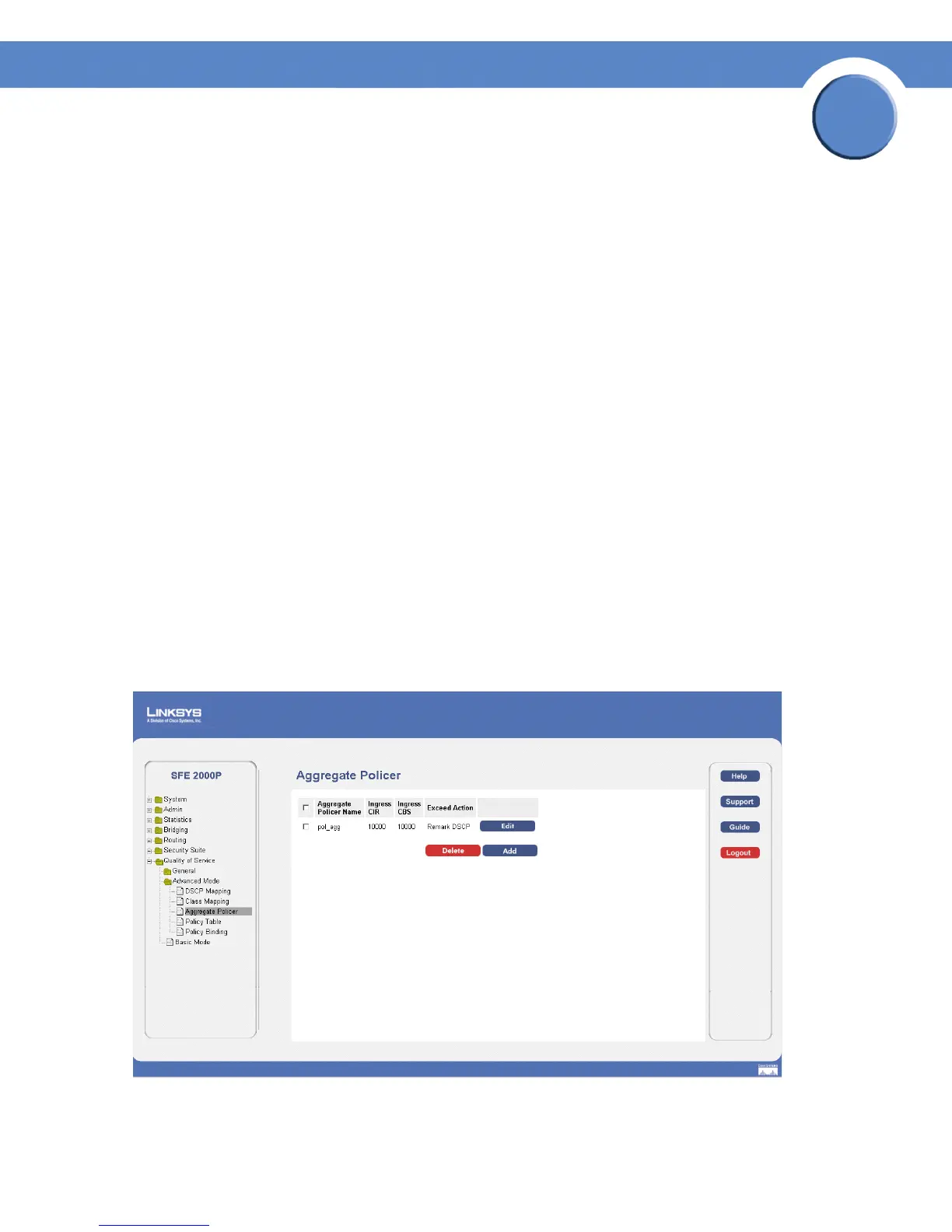

Aggregate Policer Page
The Aggregate Policer Page contains the following fields.
