210
Chapter 12: Configuring Quality of Service
Defining Advanced Mode
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
12

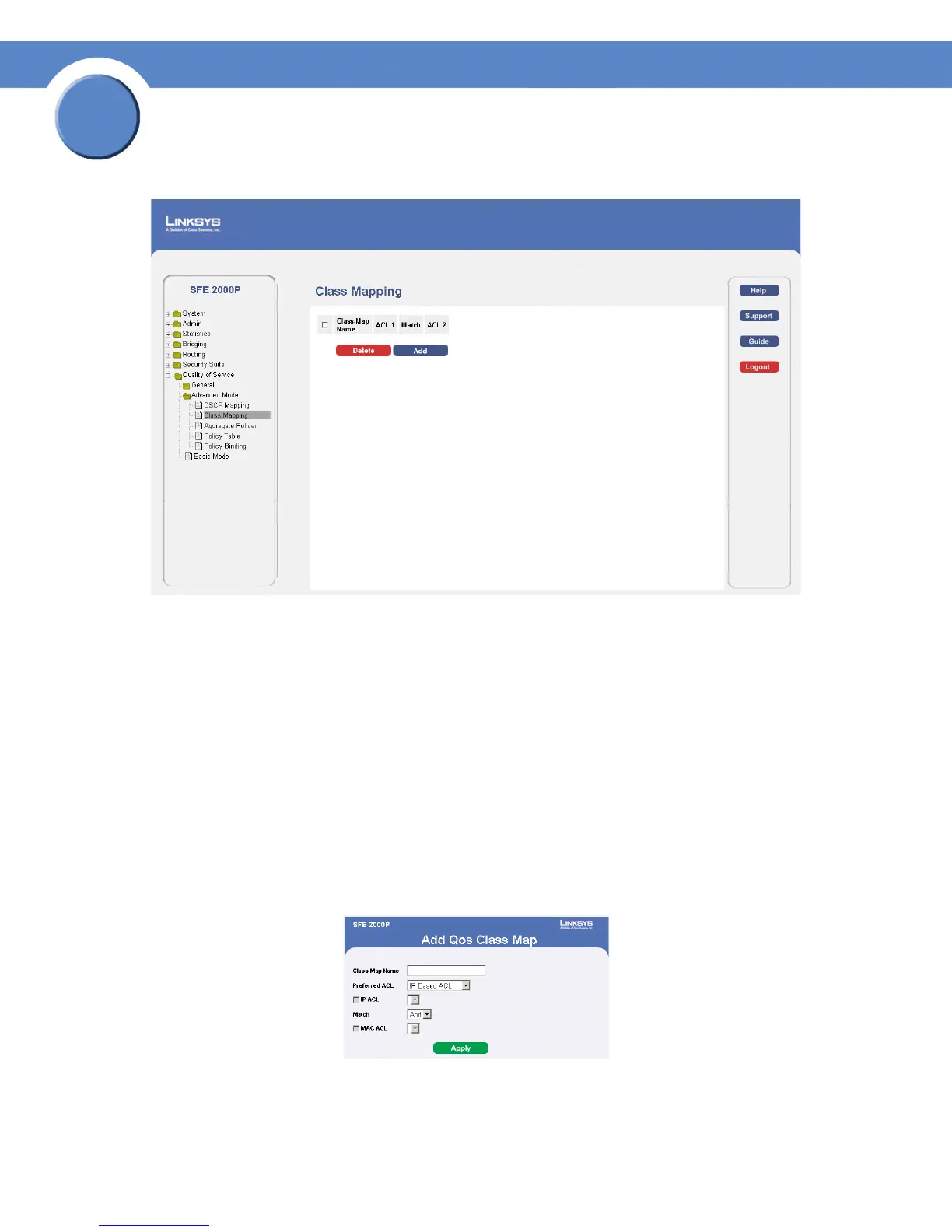

Class Mapping Page
The Class Mapping Page contains the following fields:
Class Map Name — Selects an existing Class Map by name.
ACL1 — Contains a list of the user-defined ACLs.
Match —Criteria used to match IP addresses and /or MAC addresses with an ACLs address.The
possible field values are:
And — Both the MAC-based and the IP-based ACL must match a packet.
Or — Either the MAC-based or the IP-based ACL must match a packet.
ACL2 — Contains a list of the user-defined ACLs.
2. Click he Add button. The Add QoS Class Map Page opens:
Add QoS Class Map Page
The Add QoS Class Map Page contains the following fields.
Class Map Name — Defines a new Class Map name
