106
Chapter 6: Configuring VLANs
Defining VLAN Membership
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
6
Defining VLAN Membership
The VLAN Membership Page contains a table that maps VLAN parameters to ports. Ports are assigned
VLAN membership by toggling through the Port Control settings.
1.

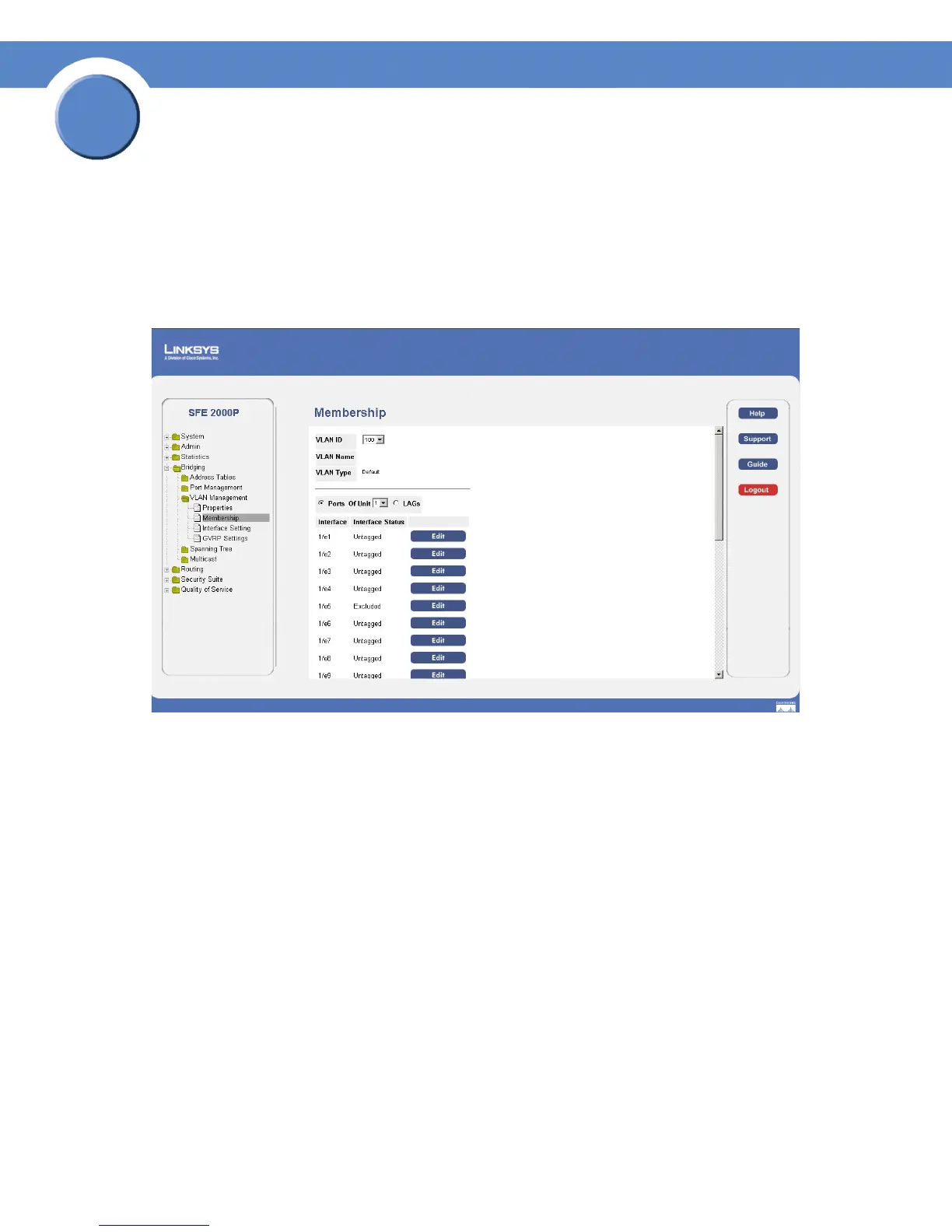

Click Bridging > VLAN Management > Membership. The VLAN Membership Page opens:
Membership Page
The Membership Page contains the following fields:
• VLAN ID — Displays the VLAN ID.
• VLAN Name — Displays the VLAN name.
• VLAN Type — Indicates the VLAN type. The possible field values are:
– Dynamic — Indicates the VLAN was dynamically created through GARP.
– Static — Indicates the VLAN is user-defined.
– Default — Indicates the VLAN is the default VLAN.
• Port — Indicates that ports are indicated in the page.
• LAG — Indicates that LAGs are indicated in the page.
• Of Unit — Displays the stacking member for which the VLAN parameters are displayed.
• Interface — Displays the interface configuration being displayed.
• Interface Status — Indicates the interface status. the options areas follows:
