Chapter 12: Configuring Quality of Service
Defining Advanced Mode
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
12

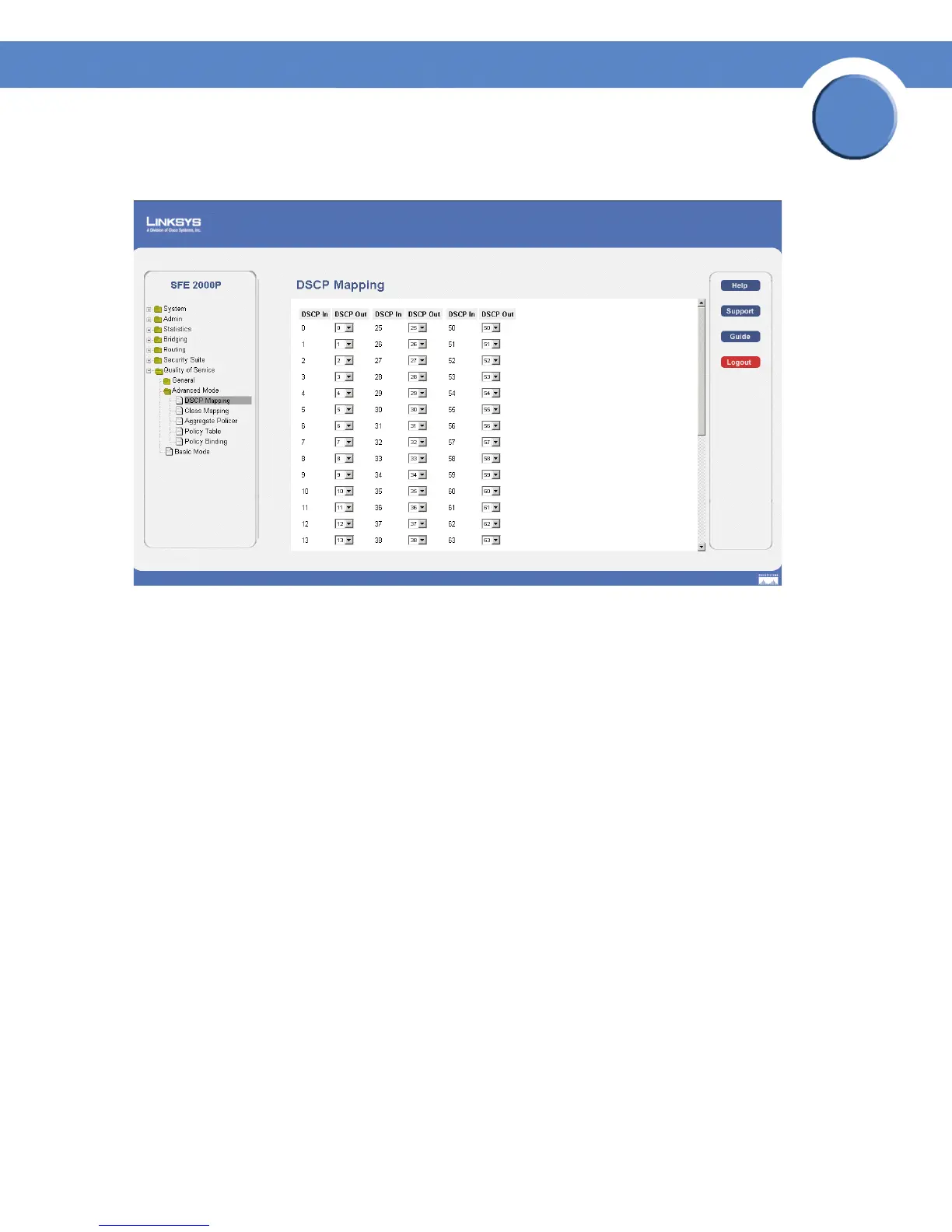

DSCP Mapping Page
The DSCP Mapping Page contains the following fields:
• DSCP In — Indicates the Differentiated Services Code Point value in the incoming packet.
• DSCP Out — Indicates the Differentiated Services Code Point value in the outgoing packet.
Defining Class Mapping
The Defining Class Mapping page enables mapping DSCP values from incoming packets to DSCP
values in outgoing packets.
1. Click Quality of Service > Advanced > Class Mapping. The Class Mapping Page opens:

Cisco SGE2000 Specifications

General

Jumbo Frame Support	9KB
VLANs	Up to 256
Management	Web-based, SNMP, CLI
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w
Dimensions	440 x 44 x 257 mm
Power Supply	100 to 240V AC, 50-60 Hz
Operating Temperature	0°C to 40°C
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Weight	3.2 kg
