• Aggregate Policer Name— Specifies the Aggregate Policer Name
• Ingress Committed Information Rate (CIR) — Defines the CIR in bits per second. This field is
only relevant when the Police value is Single.
• Ingress Committed Burst Size (CBS) — Defines the CBS in bytes per second. This field is only
relevant when the Police value is Single.
• Exceed Action — Action assigned to incoming packets exceeding the CIR. This field is only
relevant when the Police value is Single. Possible values are:
– Drop — Drops packets exceeding the defined CIR value.
– Remark DSCP —Remarks packet’s DSCP values exceeding the defined CIR value.
– None —Forwards packets exceeding the defined CIR value.
2. Click the Add button. The Add QoS Aggregate Policer Page opens:

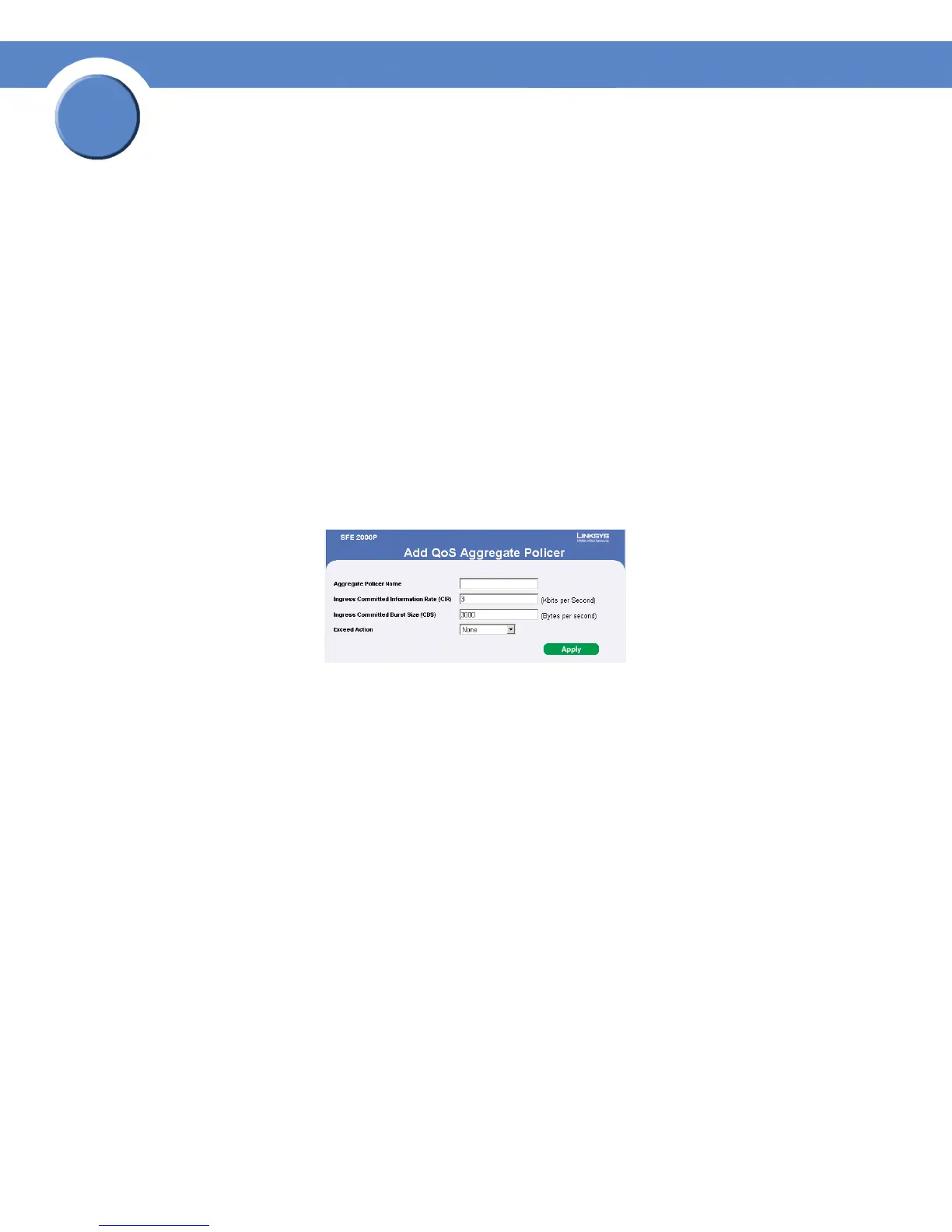

Add QoS Aggregate Policer Page
The Add QoS Aggregate Policer Page contains the following fields.
• Aggregate Policer Name— Specifies the Aggregate Policer Name
• Ingress Committed Information Rate (CIR) — Defines the CIR in bits per second. This field is
only relevant when the Police value is Single.
• Ingress Committed Burst Size (CBS) — Defines the CBS in bytes per second. This field is only
relevant when the Police value is Single.
• Exceed Action — Action assigned to incoming packets exceeding the CIR. This field is only
relevant when the Police value is Single. Possible values are:
– Drop — Drops packets exceeding the defined CIR value.
– Remark DSCP —Remarks packet’s DSCP values exceeding the defined CIR value.
– None —Forwards packets exceeding the defined CIR value.
3. Define the relevant fields.
4. Click Apply. The Aggregate policer is added, and the device is updated.
