Chapter 12: Configuring Quality of Service
Defining QoS Basic Mode
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
12

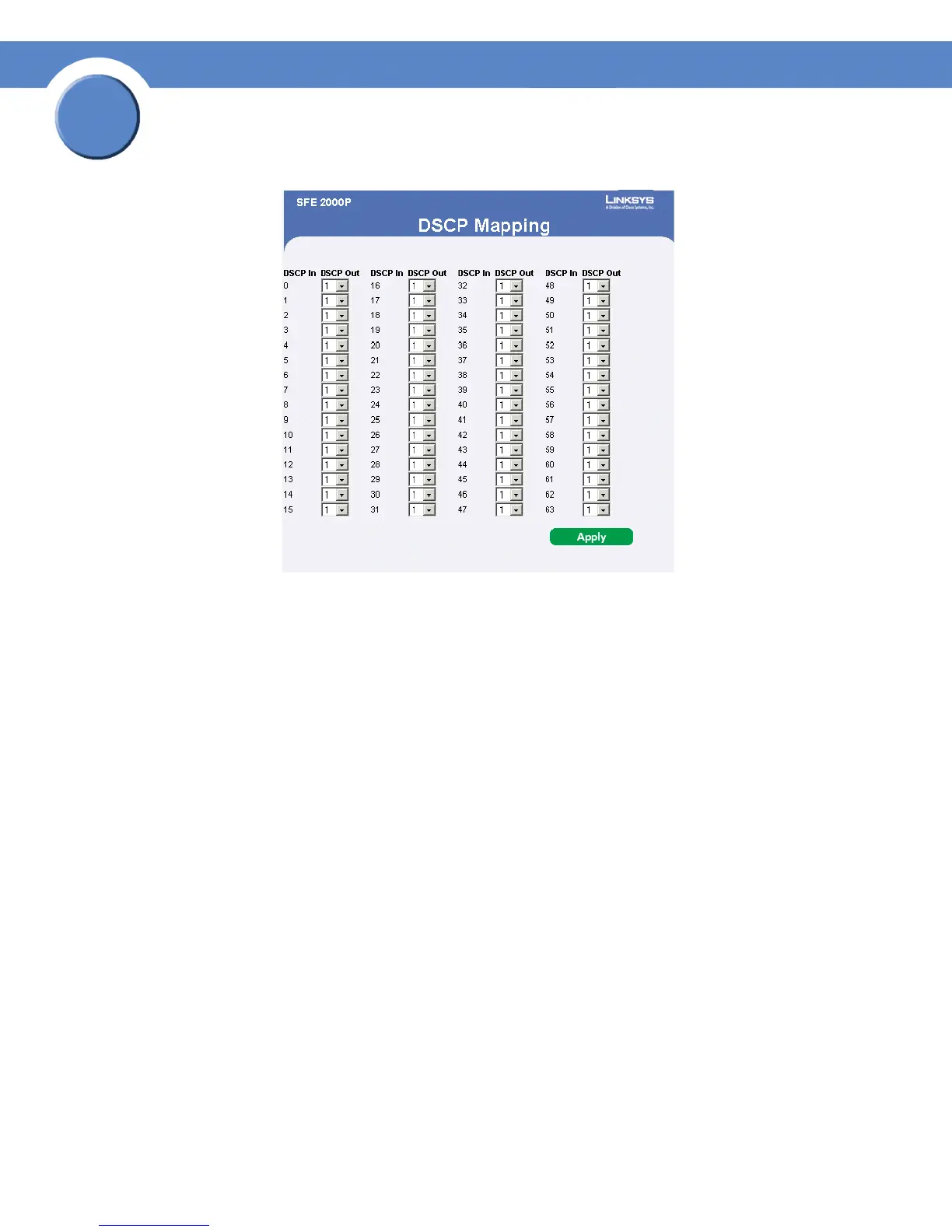

DSCP Mapping Page
The DSCP Mapping Page enables mapping DSCP values from incoming packets to DSCP values in
outgoing packets. The DSCP Mapping Page contains the following fields:
• DSCP In — Indicates the Differentiated Services Code Point value in the incoming packet.
• DSCP Out — Indicates the Differentiated Services Code Point value in the outgoing packet.
3. Define the DSCP mappings.
4. Click Apply. The DSCP mappings are defined, and the device is updated.
