Chapter 6: Configuring VLANs
Protocol Port
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
6
The Add Protocol Port to VLAN Page provides information for editing protocol port configurations.

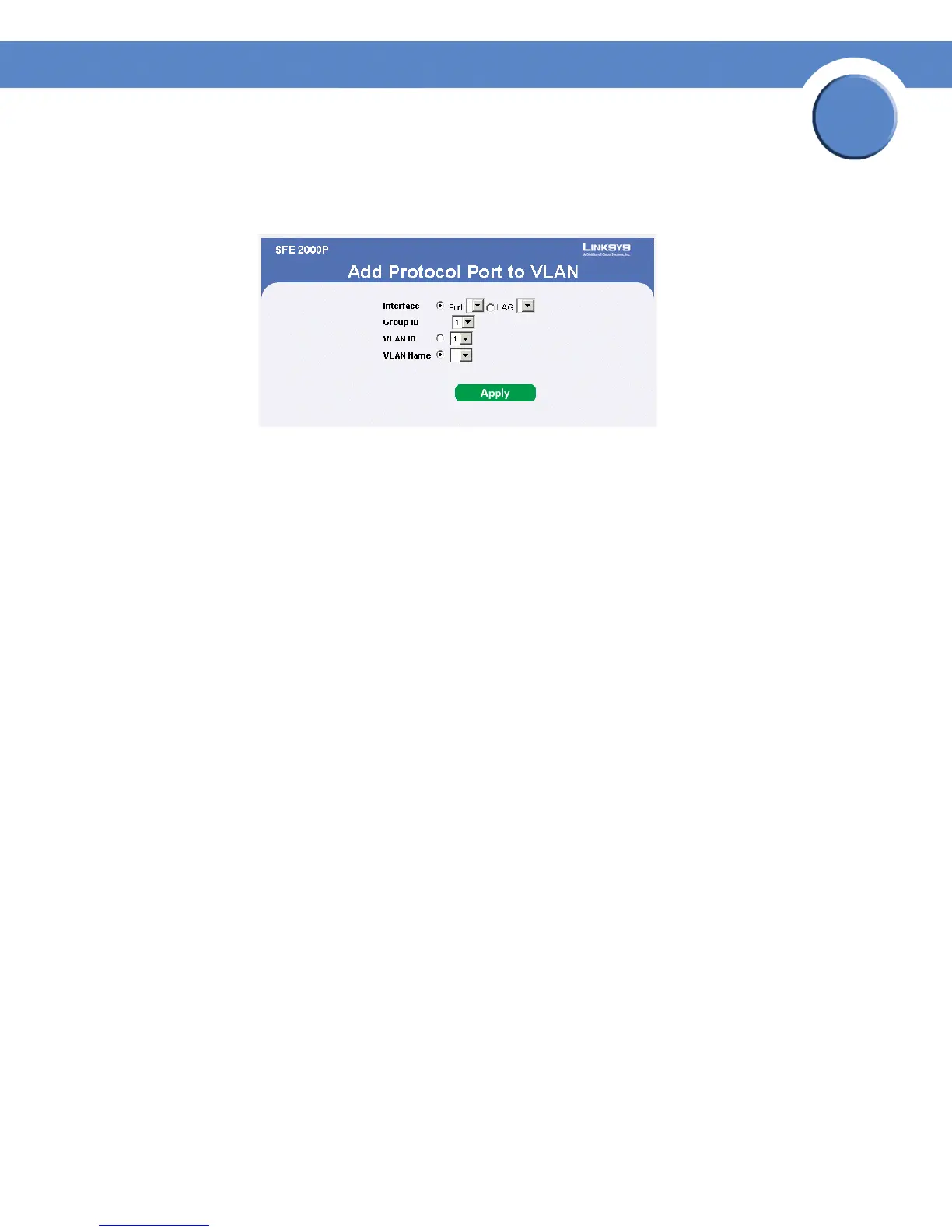

Add Protocol Port to VLAN Page
The Add Protocol Port to VLAN Page contains the following fields.
• Interface — Port or LAG number added to a protocol group.
• Group ID — Protocol group ID to which the interface is added. Protocol group IDs are defined in
the Protocol Group Table.
• VLAN ID — Attaches the interface to a user-defined VLAN ID.
• VLAN Name — Attaches the interface to a user-defined VLAN Name.
3. Define the relevant fields.
4. Click Apply. The protocol ports are mapped to VLANs, and the device is updated.

Cisco SGE2000 Specifications

General

Jumbo Frame Support	9KB
VLANs	Up to 256
Management	Web-based, SNMP, CLI
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w
Dimensions	440 x 44 x 257 mm
Power Supply	100 to 240V AC, 50-60 Hz
Operating Temperature	0°C to 40°C
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Weight	3.2 kg
