Chapter 4: Configuring Device Security

Defining Access Control

SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide

Chapter

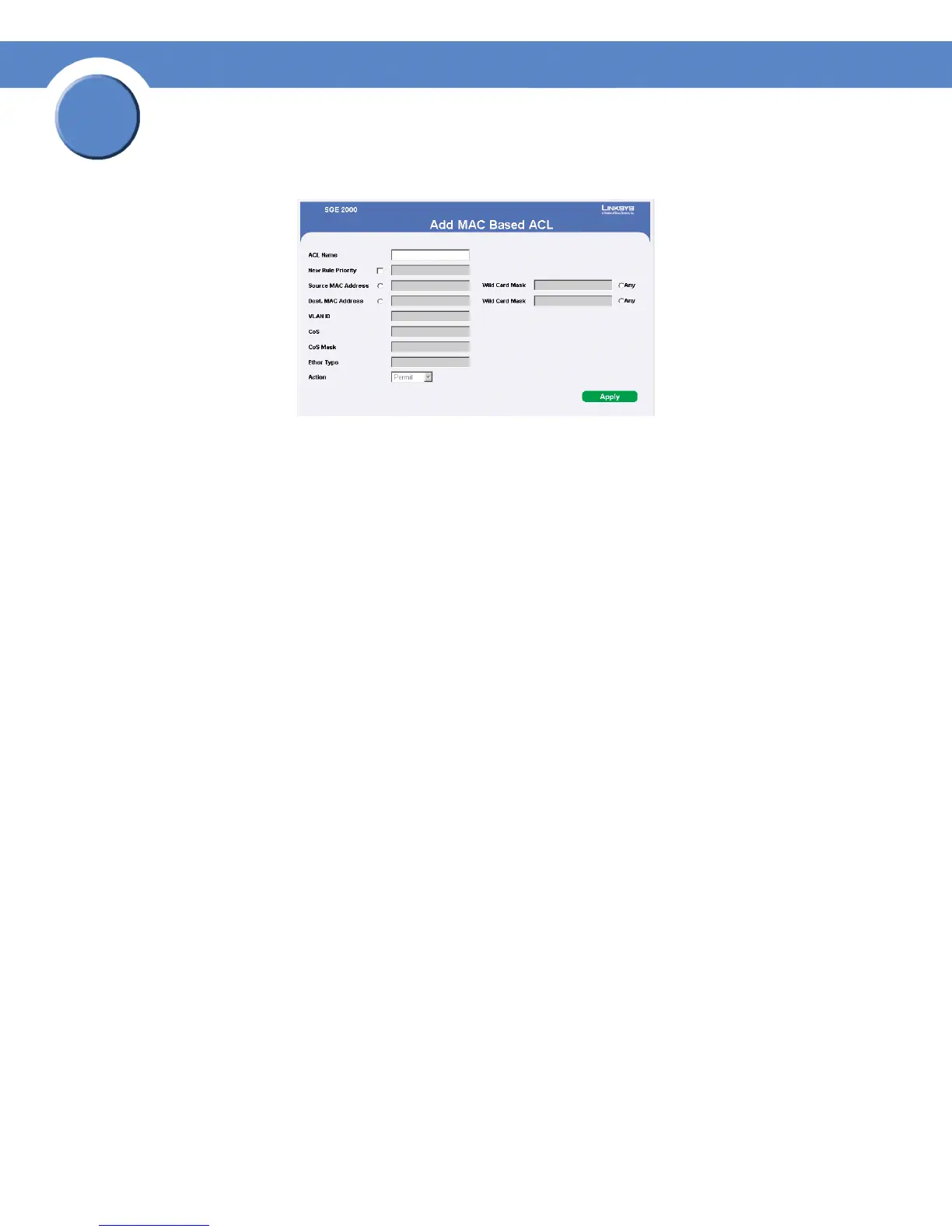

Add MAC Based ACL Page

The Add MAC Based ACL Page contains the following fields:

• ACL Name — Displays the user-defined MAC based ACLs.

• New Rule Priority —

Indicates the ACE priority, which determines which ACE is matched to a packet on a

first-match basis. The possible field values are 1-2147483647.

• Source Address

– MAC Address — Matches the source MAC address to which packets are addressed to the

ACE.

– Mask — Indicates the source MAC Address wild card mask. Wildcards are used to mask all

or part of a source IP Address. Wild card masks specify which bits are used and which bits

are ignored. A wild card

mask of ff: ff:ff:ff:ff:ff indicates that no bit is important. A wildcard of

00.00.00.00.00.00 indicates that all the bits are important. For example, if the source IP address

14.36.18.19.1.1 and the wildcard mask is 255.36.184.00.00.00, the middle two bits of the IP address

are used, while the last three bits are ignored.

• Destination Address

– MAC Address — Matches the destination MAC address to which packets are addressed to the ACE.

– Mask — Indicates the destination MAC Address wild card mask. Wildcards are used to mask all or

part

of a destination IP Address. Wild card masks specify which bits are used and which bits

are ignored. A wild card mask of ff: ff:ff:ff:ff:ff indicates that no bit is important. A wildcard

of 00.00.00.00.00.00 indicates that all the bits are important. For example, if the source IP

address 14.36.18.19.1.1 and the wildcard mask is 255.36.184.00.00.00, the middle two bits

of the IP address are used, while the last three bits are ignored.

• VLAN ID —

Matches the packet’s VLAN ID to the ACE. The possible field values are 1 to 4095.

• CoS — Class of Service of the packet.

• CoS Mask — Wildcard bits to be applied to the CoS.

• Ether Type — The Ethernet type of the packet.

• Action — Indicates the ACL forwarding action. The possible field values are:
