78
Chapter 4: Configuring Device Security
Defining Access Control
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
4

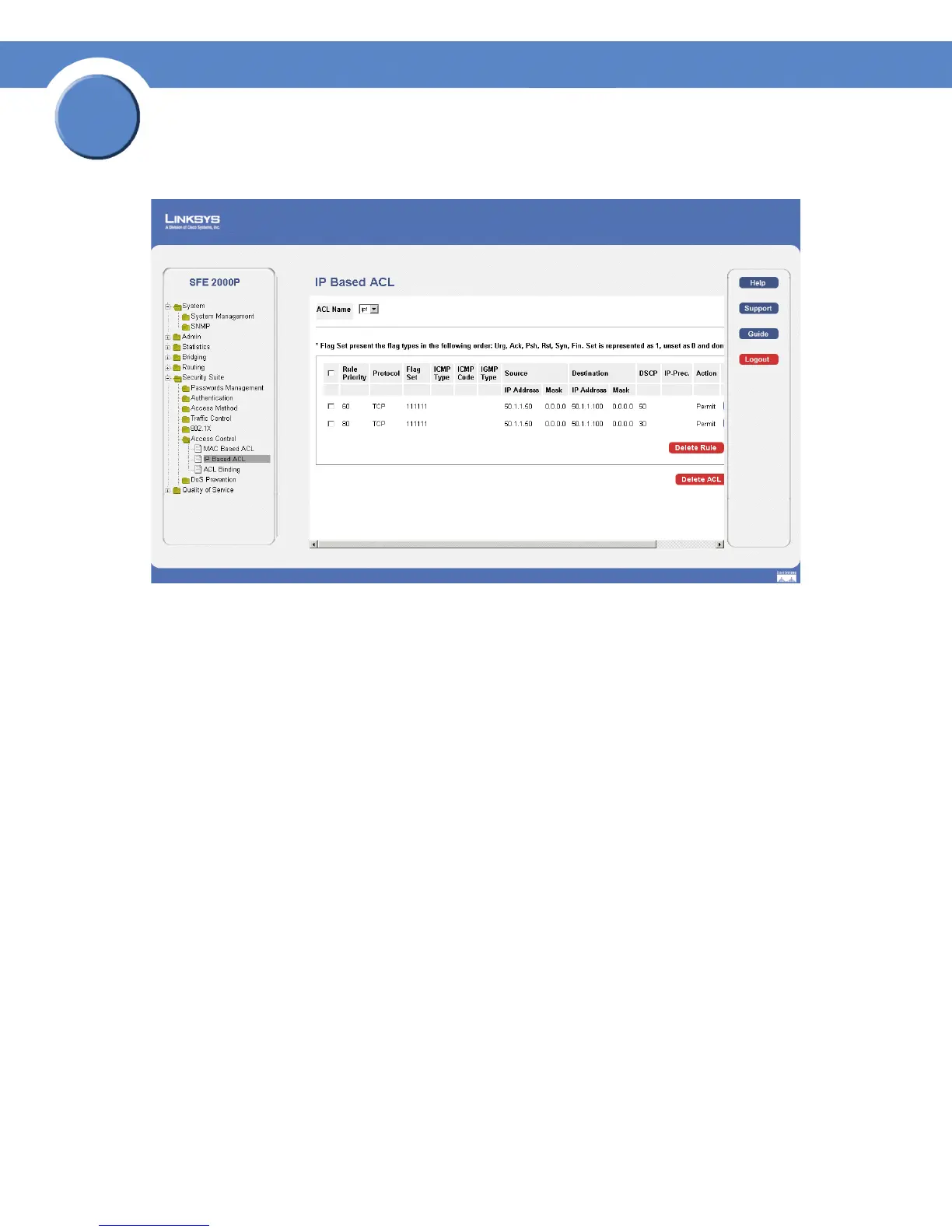

IP Based ACL Page
The IP Based ACL Page contains the following fields:
• ACL Name — Displays the user-defined IP based ACLs.
• Remove ACL — Deletes the selected ACL.
• Rule Priority — Indicates the rule priority, which determines which rule is matched to a packet on a
first-match basis.
• Protocol — Creates an ACE based on a specific protocol.
– Any — Matches the protocol to any protocol.
– IDRP — Matches the packet to the Inter-Domain Routing Protocol (IDRP).
– IDPR — Matches the packet to the Inter-Domain Policy Routing Protocol (IDPR).
– RVSP — Matches the packet to the ReSerVation Protocol (RSVP).
– AH — Indicates that the Authentication Header (AH) protocol is used to classify network
flows.
– EIGRP — Indicates that the Enhanced Interior Gateway Routing Protocol (EIGRP) is used
to classify network flows.
– OSPF — Matches the packet to the Open Shortest Path First (OSPF) protocol.
– IPIP — Matches the packet to the IP Protocol
– PIM — Matches the packet to Protocol Independent Multicast (PIM).

Cisco SGE2000 Specifications

General

Jumbo Frame Support	9KB
VLANs	Up to 256
Management	Web-based, SNMP, CLI
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w
Dimensions	440 x 44 x 257 mm
Power Supply	100 to 240V AC, 50-60 Hz
Operating Temperature	0°C to 40°C
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Weight	3.2 kg
