Chapter 10: Configuring Spanning Tree
Defining Multiple Spanning Tree
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
10
1. Click Bridging > Spanning Tree > MSTP > Interface Settings. The MSTP Interface Settings Page
opens:

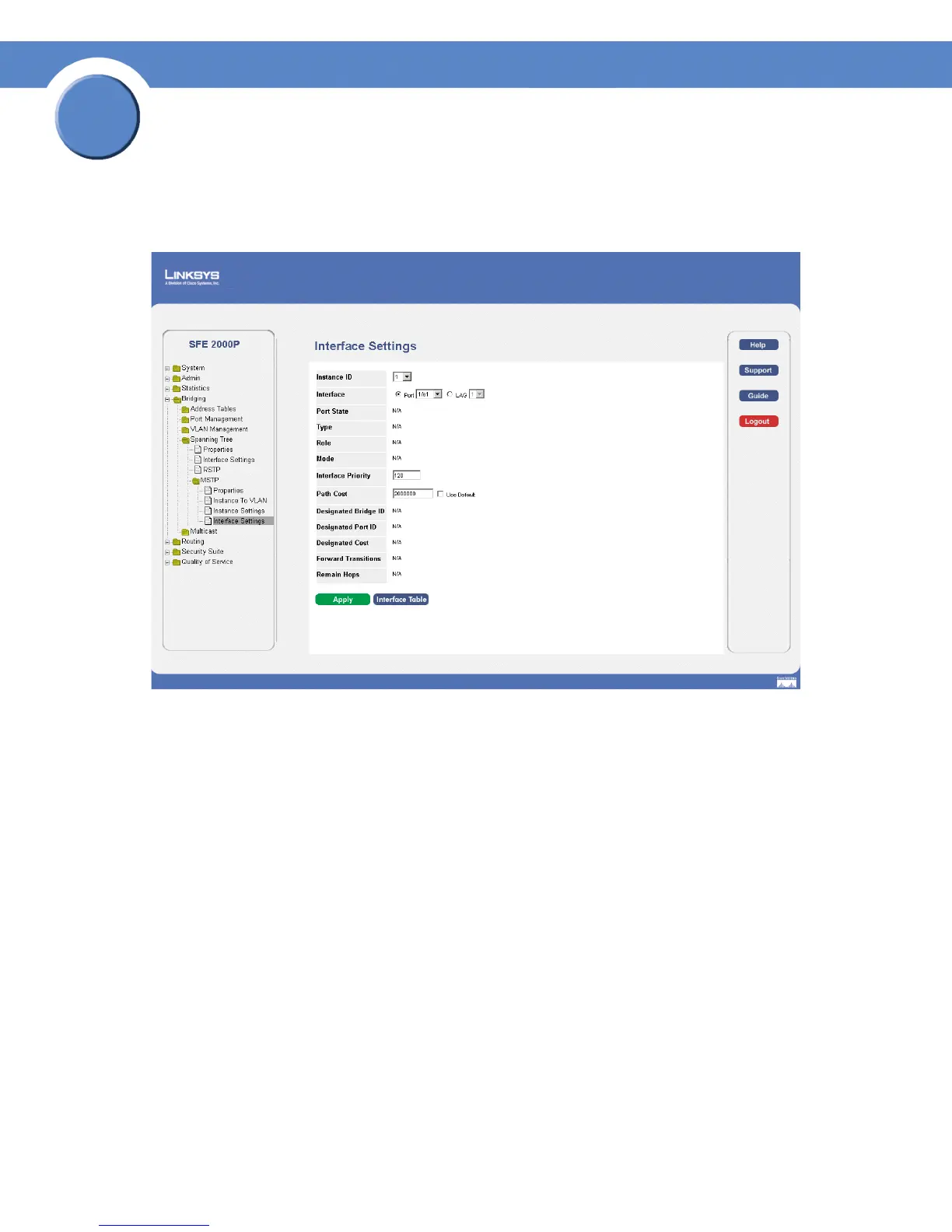

MSTP Interface Settings Page
The MSTP Instance Settings Page contains the following fields:
• Instance ID — Lists the MSTP instances configured on the device. Possible field range is 0-15.
• Interface — Displays the interface for which the MSTP settings are displayed. The possible field
values are:
– Port — Specifies the port for which the MSTP settings are displayed.
– LAG — Specifies the LAG for which the MSTP settings are displayed.
• Port State— Indicates whether the port is enabled for the specific instance. The possible field values
are:
– Enable — Enables the port for the specific instance.
– Disable — Disables the port for the specific instance.
– Forwarding — Enables forwarding all multicast packets on a port.
• Type — Indicates if the port is a point-to-point port, or a port connected to a hub. The possible field
values are:
