Chapter 17: Managing Device Diagnostics
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
17
• Port — Specifies port to which the cable is connected.
• Test Result — Displays the cable test results. Possible values are:
– No Cable — Indicates that a cable is not connected to the port.
– Open Cable — Indicates that a cable is connected on only one side.
– Short Cable — Indicates that a short has occurred in the cable.
– OK — Indicates that a cable passed the test.
• Cable Fault Distance — Indicates the distance from the port where the cable error occurred.
• Last Update — Indicates the last time the port was tested.
• Cable Length — Indicates the approximate cable length. This test can only be performed when the
port is up and operating at 1 Gbps.

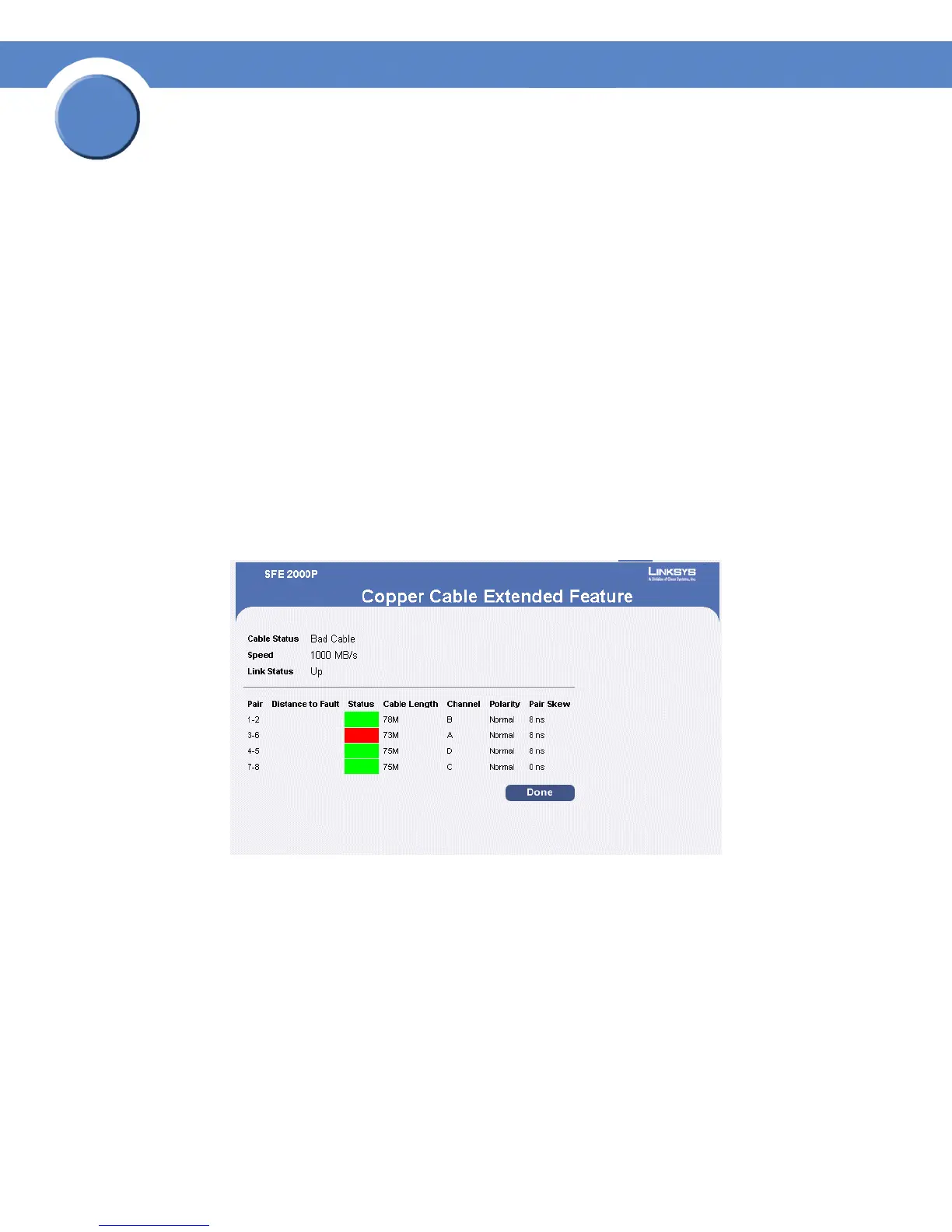

2. Click the Advanced button. The Copper Cable Extended Feature Page opens:
Copper Cable Extended Feature Page
The Copper Cable Extended Feature Page contains the following fields.
• Cable Status — Displays the cable status.
• Speed — Indicates the speed at which the cable is transmitting packets.
• Link Status — Displays the current link status.
• Pair — The pair of cables under test.
• Distance to Fault — Indicates the distance from the port where the cable error occurred.
• Status — Displays the cable status.

Cisco SGE2000 Specifications

General

Jumbo Frame Support	9KB
VLANs	Up to 256
Management	Web-based, SNMP, CLI
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w
Dimensions	440 x 44 x 257 mm
Power Supply	100 to 240V AC, 50-60 Hz
Operating Temperature	0°C to 40°C
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Weight	3.2 kg
