Chapter 3: Managing Power-over-Ethernet Devices
DefiningPoE System Information
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
3

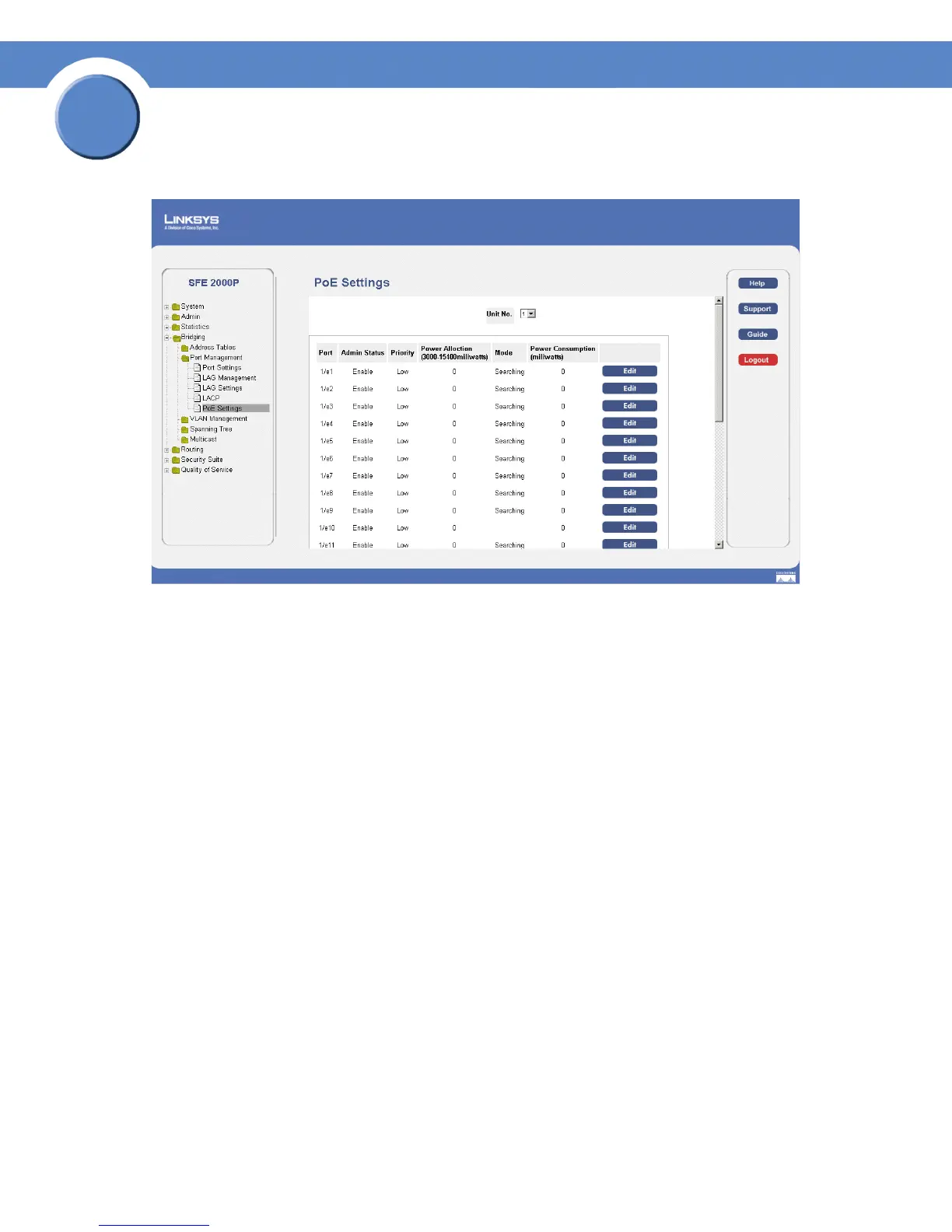

PoE Settings Page
The PoE Settings Page displays the currently configured PoE ports and contains the following
information:
• Port — Displays the selected port’s number.
• Admin Status — Indicates whether PoE is enabled or disabled on the port. The possible values are:
– Enable — Enables PoE on the port. This is the default setting.
– Disable — Disables PoE on the port.
• Priority — Indicates the PoE ports’ priority. The possible values are: Critical, High and Low. The
default is Low.
• Power Allocation (3000-15400 milliwatts) — Indicates the power allocated to the port. The range
is 3000-15400 milliwatts.
• Mode — Indicates if the port is enabled to work on PoE. The possible field values are:
– On — Indicates the device is delivering power to the interface.
– Off — Indicates the device is not delivering power to the interface.
– Test Fa il — Indicates the powered device test has failed. For example, a port could not be
enabled and cannot be used to deliver power to the powered device.
– Testing — Indicates the powered device is being tested. For example, a powered device is
tested to confirm it is receiving power from the power supply.
