The beaconing function for an individual server may get turned on or off by pressing the combination button
and LED. See Interpreting LEDs, on page 36 for details.
The power button and LED allows you to manually take a server temporarily out of service but leave it in a
state where it can be restarted quickly.
Connectors
A console port gives a direct connection to a blade server to allow operating system installation and other
management tasks to be done directly rather than remotely. The port uses the KVM dongle device included
in the chassis accessory kit. See KVM Cable, on page 85 for more information.
Cisco UCS B420 M4 Blade Server
For full service and installation instructions, see the Cisco UCS B420 M4 Blade Server Installation and Service
Note. You can install up to four UCS B420 M4 High Performance Blade Servers in a chassis.

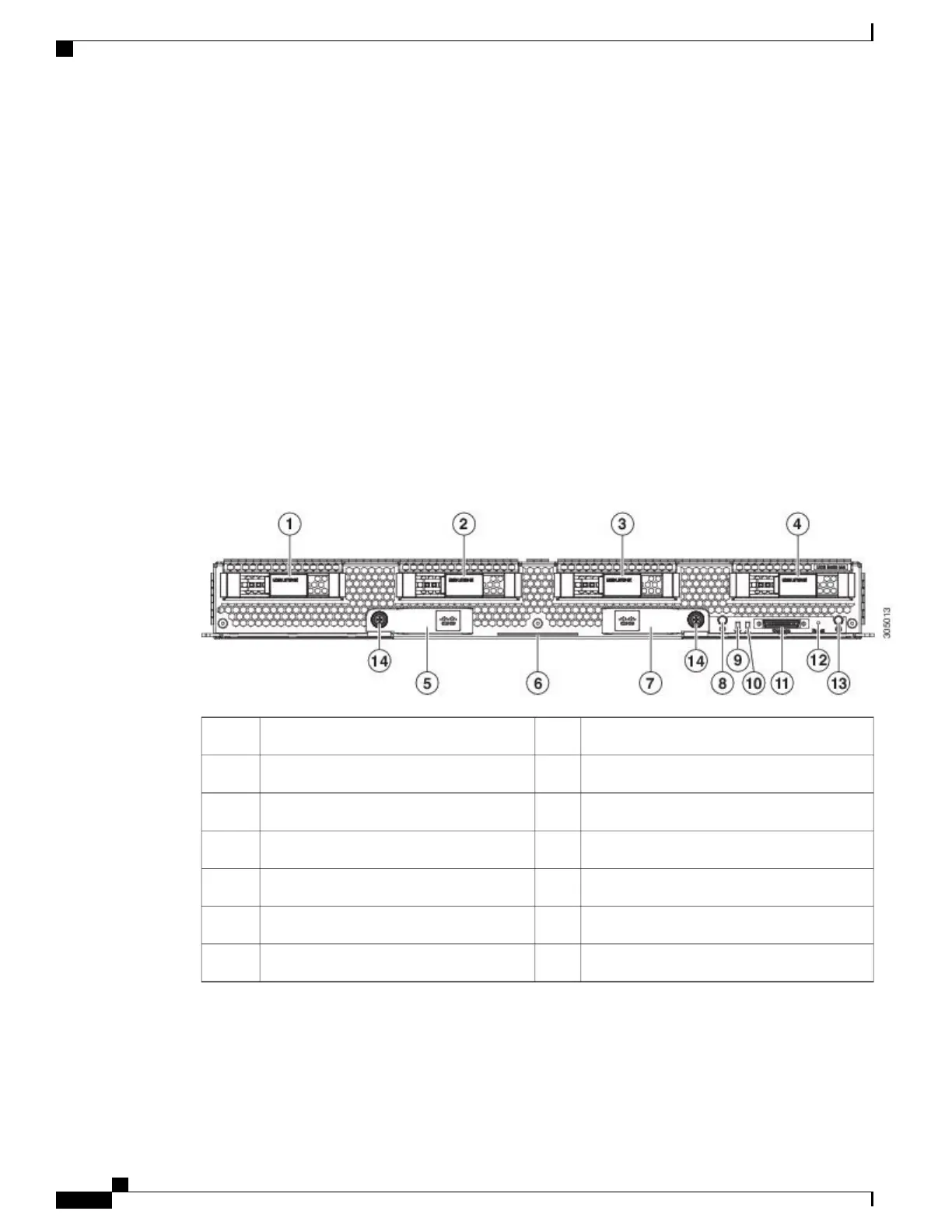

Figure 9: Cisco UCS B420 M4 Blade Server Front Panel
Power button and LED8Hard drive bay 11
Network link status button9Hard drive bay 22
Blade health LED10Hard drive bay 33
Local console connection11Hard drive bay 44
Reset button access12Left ejector handle5
Locate button13Serial pull tab6
Ejector thumb screw14Right ejector handle7
Cisco UCS 5108 Server Chassis Installation Guide
16
Overview
Cisco UCS B420 M4 Blade Server

Cisco UCS 5108 Specifications

General

Number of Blade Slots	8
I/O Module Bays	2
Supported Blade Servers	Cisco UCS B-Series Blade Servers
Power Supply Options	Up to four hot-swappable power supplies (AC or DC)
Cooling	Redundant hot-swappable fans
Management	Cisco UCS Manager
Blade Slots	8
Fabric Interconnects	Cisco UCS 6100 or 6200 Series
Power Supplies	Up to 4 hot-pluggable power supplies
Form Factor	6RU rack-mountable
