Cisco UCS 5108 Installation Guide

LEDs
The front of the IOM has a system status LED and port activity LEDs.
Buttons
There are no buttons on the IOM.
Connectors
There are four QSFP, 40-Gigabit uplink ports on the front of the IOM. The Ethernet management port and
console connector use an HDMI connector that connects to a special Y dongle to expose the 10/100 RJ45
port and console connections.
Cisco UCS 2200 Series FEXes

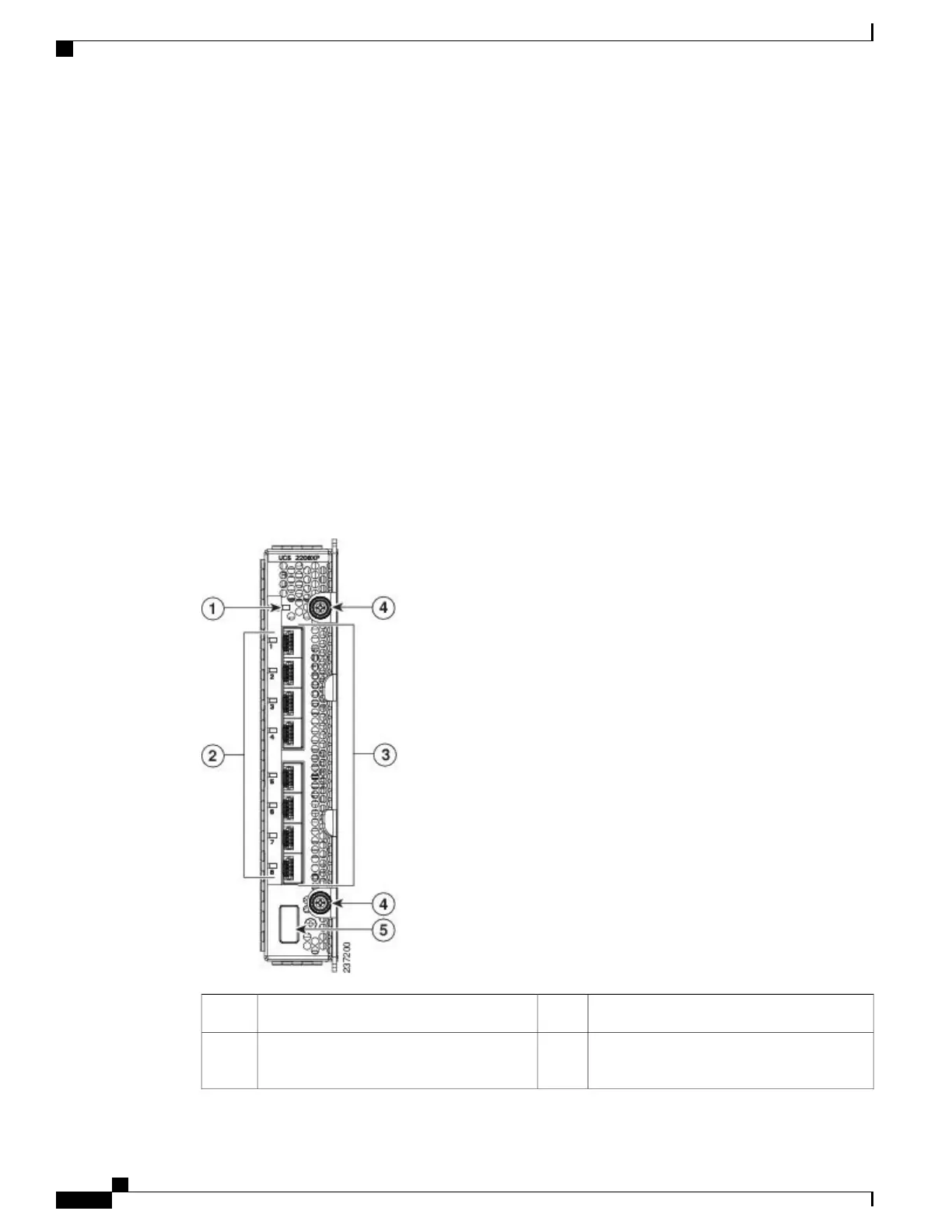

Figure 14: Cisco UCS 2208 FEX (UCS-IOM-2208XP)
Captive screws for the insertion latches4Fabric extender status indicator LED1
HDMI console connector for use by Cisco
service technicians
5Link status indicator LEDs2
Cisco UCS 5108 Server Chassis Installation Guide
26
Overview
Cisco UCS 2200 Series FEXes

Cisco UCS 5108 Specifications

General

Number of Blade Slots	8
I/O Module Bays	2
Supported Blade Servers	Cisco UCS B-Series Blade Servers
Power Supply Options	Up to four hot-swappable power supplies (AC or DC)
Cooling	Redundant hot-swappable fans
Management	Cisco UCS Manager
Blade Slots	8
Fabric Interconnects	Cisco UCS 6100 or 6200 Series
Power Supplies	Up to 4 hot-pluggable power supplies
Form Factor	6RU rack-mountable
