Installing the Rails
Procedure
Step 1
Remove the mounting template (Cisco 78-19093-01) from the accessory box. The template is designed to
show you the proper holes within which the rails and cage nuts should be placed. Once the rack holes line up
with the template, you should mark the holes so that their position is known after removing the template.
Step 2
Adjust the length of the rail by sliding the ends of the rail back and forth until they match the depth of the
rack.

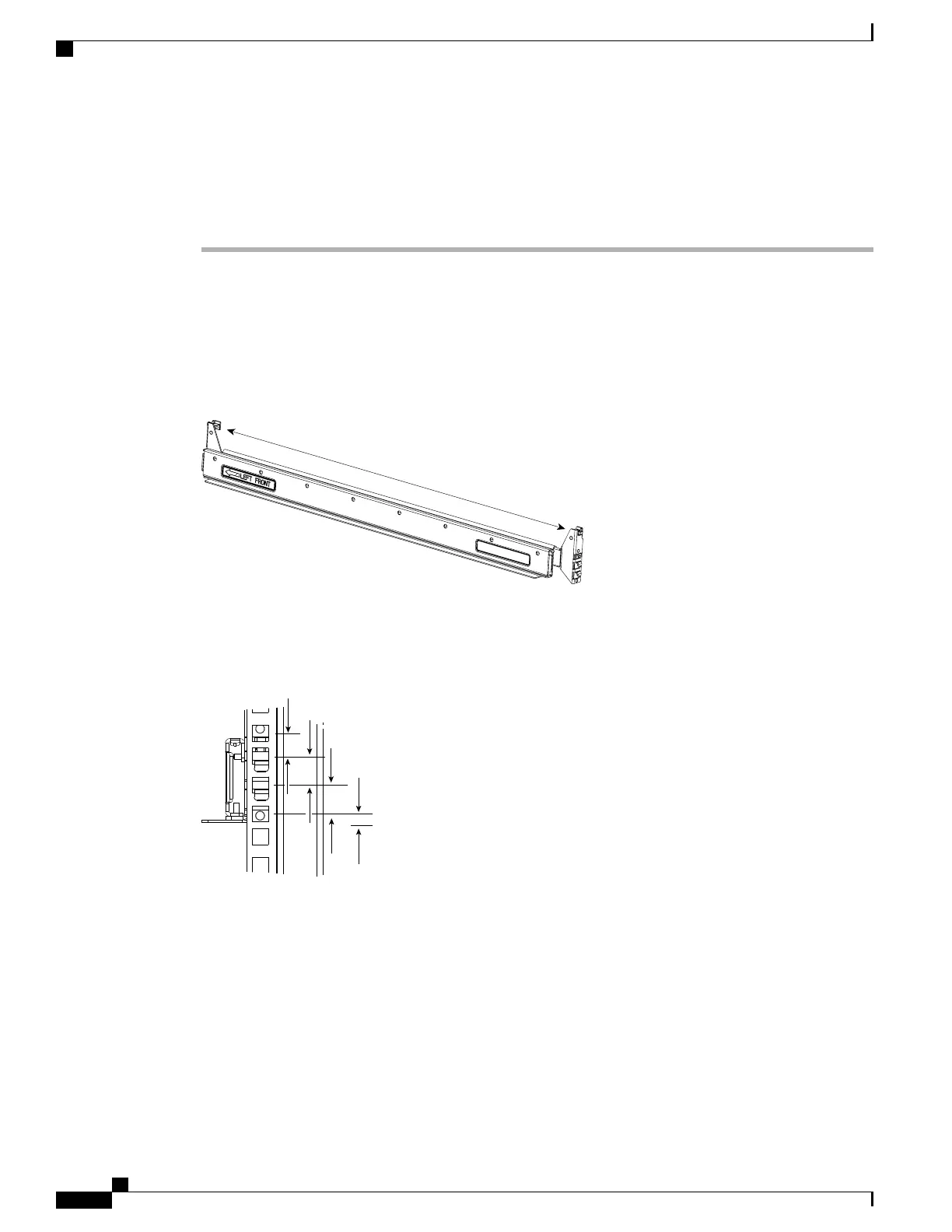

Figure 23: Adjusting the Tool-less Rack Mount Rail
192517
Sl
i
de-adjust
Step 3
Place the two hooks at each end of the rail into the first two holes at a rack unit boundary.
Figure 24: Hole Spacing for the Tool-less Rails in Relationship to a Rack Unit
192731
.250
.625
.625
.500
Cisco UCS 5108 Server Chassis Installation Guide
48
Installation
Installing the Rails

Cisco UCS 5108 Specifications

General

Number of Blade Slots	8
I/O Module Bays	2
Supported Blade Servers	Cisco UCS B-Series Blade Servers
Power Supply Options	Up to four hot-swappable power supplies (AC or DC)
Cooling	Redundant hot-swappable fans
Management	Cisco UCS Manager
Blade Slots	8
Fabric Interconnects	Cisco UCS 6100 or 6200 Series
Power Supplies	Up to 4 hot-pluggable power supplies
Form Factor	6RU rack-mountable
