Removing a Blade Server Hard Drive
Procedure
Step 1
Push the button to release the ejector, and then pull the hard drive from its slot.

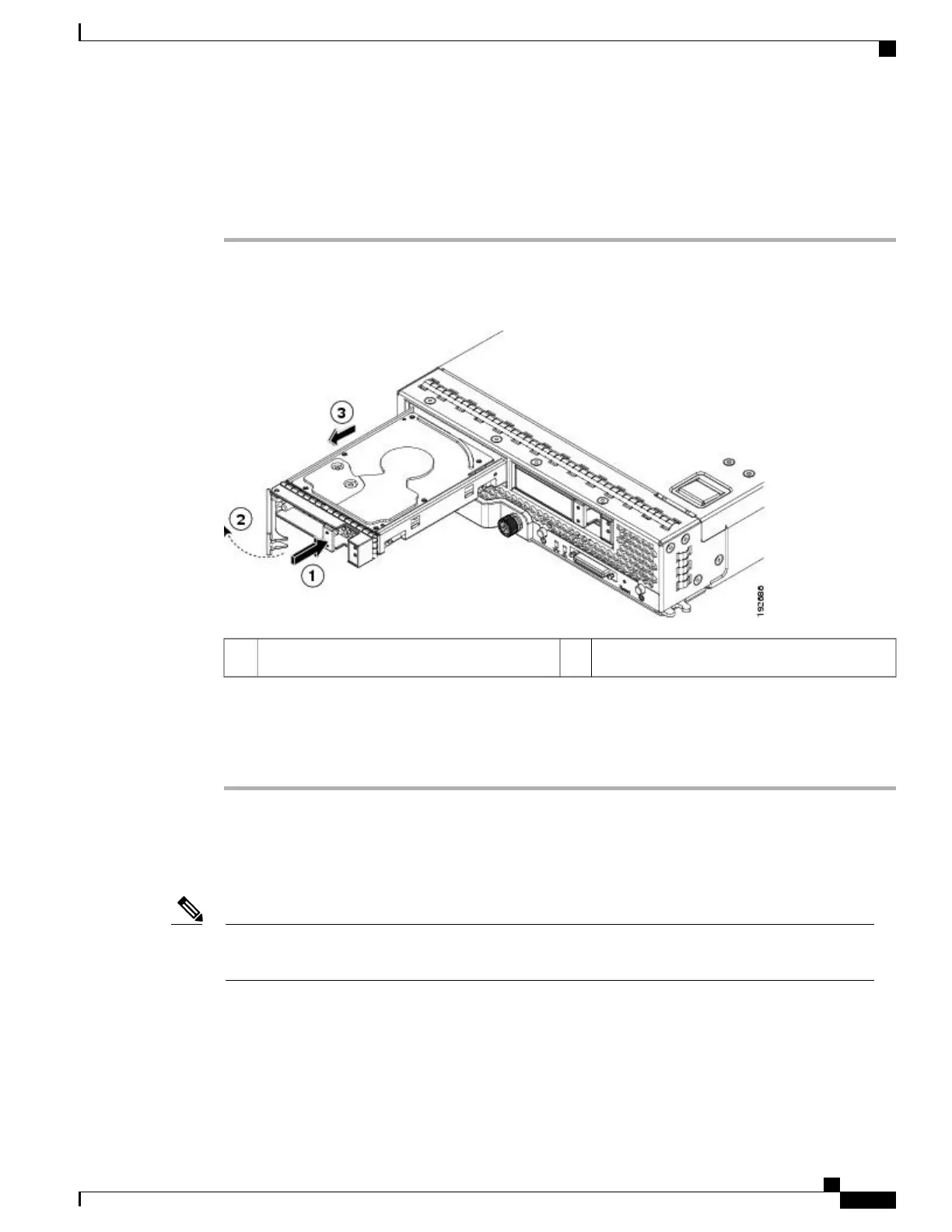

Figure 44: Pressing the Button on the Front of the Hard Drive to Deploy the Lever (Cisco UCS B200 M1 shown)
Hard drive lever2Release button1
Step 2
Place the hard drive on an antistatic mat or antistatic foam if you are not immediately reinstalling it in another
blade server.
Step 3
Install a blank faceplate (N20-BBLKD) to keep dust out of the blade server if the slot will remain empty.
Installing and Removing Power Supplies
The AC and DC power supplies are keyed to work only with the power distribution system in their
respective chassis version. Mixing AC and DC in a given chassis is not supported.
Note
Cisco UCS 5108 Server Chassis Installation Guide
73
Installing and Removing Components
Installing and Removing Power Supplies

Cisco UCS 5108 Specifications

General

Number of Blade Slots	8
I/O Module Bays	2
Supported Blade Servers	Cisco UCS B-Series Blade Servers
Power Supply Options	Up to four hot-swappable power supplies (AC or DC)
Cooling	Redundant hot-swappable fans
Management	Cisco UCS Manager
Blade Slots	8
Fabric Interconnects	Cisco UCS 6100 or 6200 Series
Power Supplies	Up to 4 hot-pluggable power supplies
Form Factor	6RU rack-mountable
