LED Locations

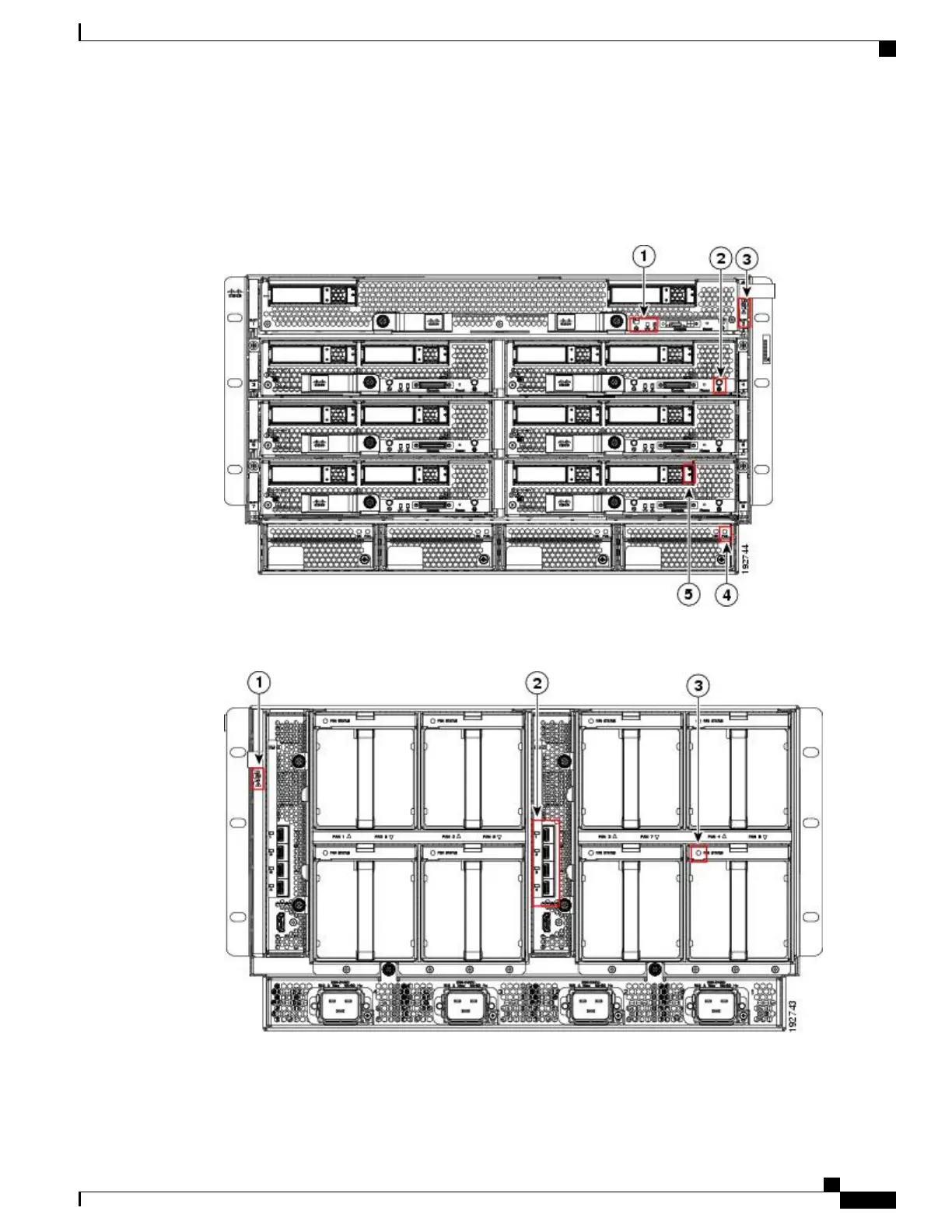

Figure 18: LEDs on a Cisco UCS 5108 Server Chassis — Front View
Figure 19: LEDs on the Cisco UCS 5108 Server Chassis — Rear View
Figure 20: Cisco UCS 5108 Server Chassis — Rear View with the Cisco UCS 6324 Fabric Interconnect
Cisco UCS 5108 Server Chassis Installation Guide
35
Overview
LED Locations

Cisco UCS 5108 Specifications

General

Number of Blade Slots	8
I/O Module Bays	2
Supported Blade Servers	Cisco UCS B-Series Blade Servers
Power Supply Options	Up to four hot-swappable power supplies (AC or DC)
Cooling	Redundant hot-swappable fans
Management	Cisco UCS Manager
Blade Slots	8
Fabric Interconnects	Cisco UCS 6100 or 6200 Series
Power Supplies	Up to 4 hot-pluggable power supplies
Form Factor	6RU rack-mountable
