Cisco UCS 5108 Installation Guide

Cisco UCS B460 M4 Blade Server
For full service and installation instructions, see the Cisco UCS B260 M4 and B460 M4 Scalable Blade Server
Installation and Service Note. Up to two Cisco UCS B460 M4 Blade Servers can be installed in the Cisco
UCS 5108 chassis.

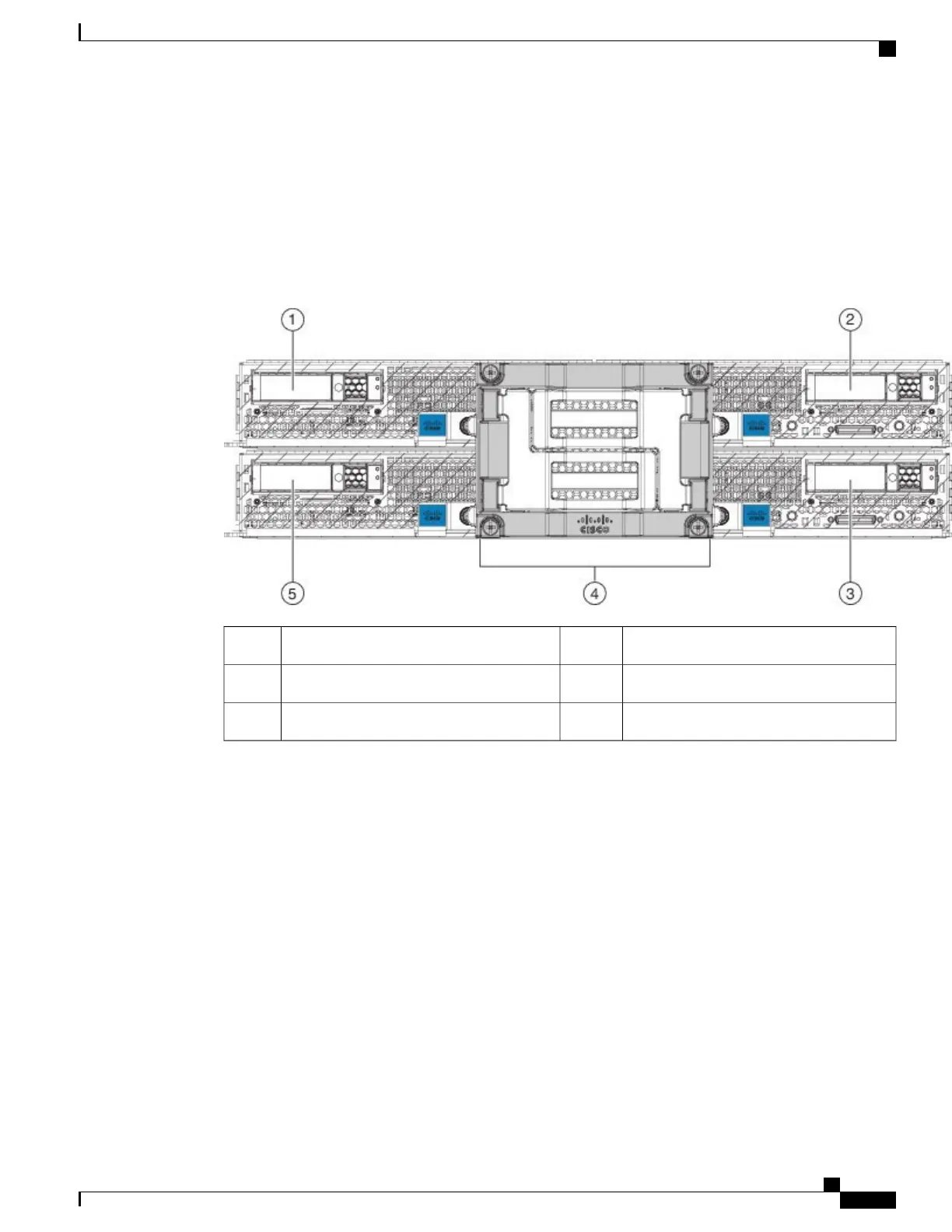

Figure 11: Cisco UCS B460 M4 Blade Server
UCS Scalability Connector4Drive bay 11
Drive bay 45Drive bay 22
Drive bay 33
LEDs
The LED indicators indicate whether the blade server is in active or standby mode, the status of the network
link, the over all health of the blade server, and whether the server is set to give a flashing blue beaconing
indication. See Interpreting LEDs, on page 36 for details.
The removable hard disks also have LEDs indicating hard disk access activity and hard disk health.
Buttons
The Reset button is just inside the chassis and must be pressed using the tip of a paper clip or a similar item.
Hold the button down for five seconds and then release it to restart the server if other methods of restarting
are not working.
The beaconing function for an individual server may get turned on or off by pressing the combination button
and LED. See Interpreting LEDs, on page 36 for details.
Cisco UCS 5108 Server Chassis Installation Guide
19
Overview
Cisco UCS B460 M4 Blade Server

Cisco UCS 5108 Specifications

General

Number of Blade Slots	8
I/O Module Bays	2
Supported Blade Servers	Cisco UCS B-Series Blade Servers
Power Supply Options	Up to four hot-swappable power supplies (AC or DC)
Cooling	Redundant hot-swappable fans
Management	Cisco UCS Manager
Blade Slots	8
Fabric Interconnects	Cisco UCS 6100 or 6200 Series
Power Supplies	Up to 4 hot-pluggable power supplies
Form Factor	6RU rack-mountable
