Cisco UCS 5108 Installation Guide

Step 5
Follow the same procedure to install the other rack rail as shown below.

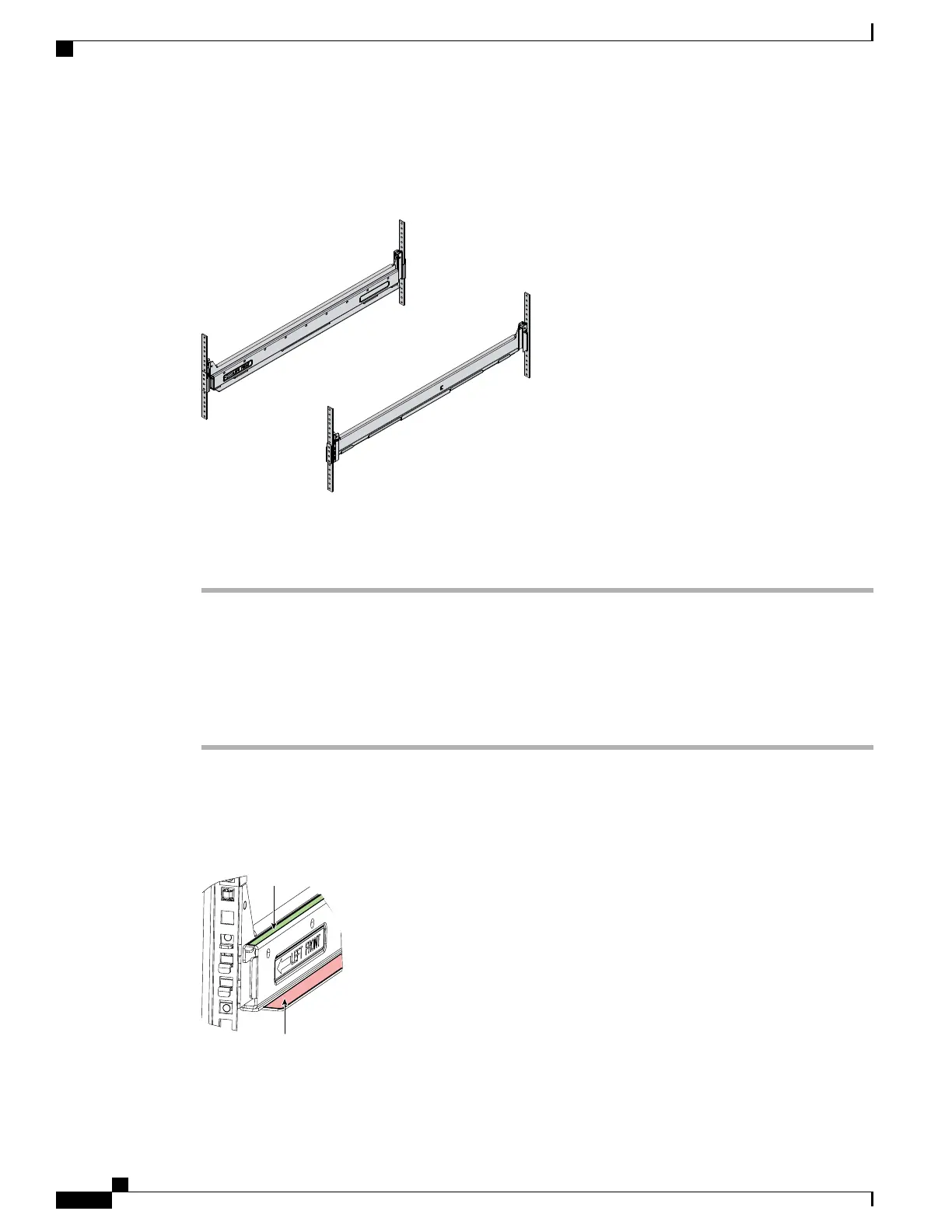

Figure 29: Round Hole Adapter and Rails Installed in a Rack
279774
Step 6
Use a tape measure and level to verify that both rack rails are horizontal and at the same height.
Step 7
Remove all power supplies, fan assemblies, server blades, and I/O modules to lighten the chassis. Even with
devices removed, the chassis weighs 90 lbs (40.83 kg).
Inserting the Chassis into the Rack
Procedure
Step 1
With the help of another person (or special lifting equipment), lift the chassis and place it on the mounting
rail as shown.
Figure 30: Mounting Rail Weight Distribution (Square Hole Mount Shown)
192518
Weight bearing surface.
Chassis should be riding
on this surface.
NON-WEIGHT BEARING SURFACE-
CHASSIS SHOULD NOT BE RIDING
ON THIS SURFACE
Cisco UCS 5108 Server Chassis Installation Guide
52
Installation
Inserting the Chassis into the Rack

Cisco UCS 5108 Specifications

General

Number of Blade Slots	8
I/O Module Bays	2
Supported Blade Servers	Cisco UCS B-Series Blade Servers
Power Supply Options	Up to four hot-swappable power supplies (AC or DC)
Cooling	Redundant hot-swappable fans
Management	Cisco UCS Manager
Blade Slots	8
Fabric Interconnects	Cisco UCS 6100 or 6200 Series
Power Supplies	Up to 4 hot-pluggable power supplies
Form Factor	6RU rack-mountable
