105
ENGINE

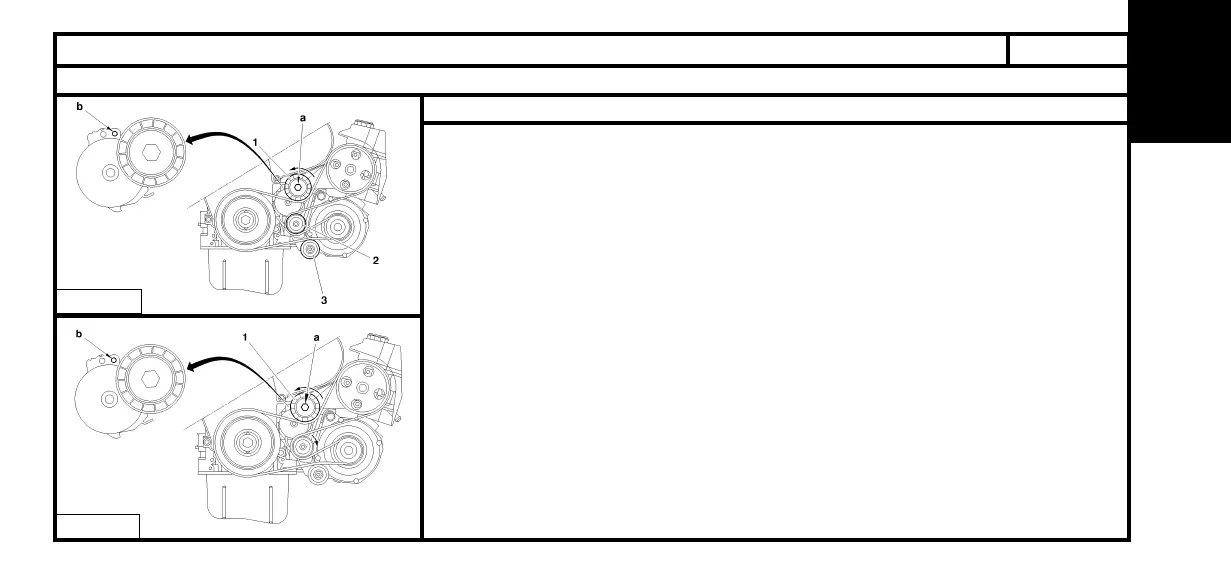

C5AUXILIARY EQUIPMENT DRIVE BELT
Engine: 4HX
Without air conditioning
B1BP270D
B1BP272D
Tools.
[1] Dynamic tensioner compressure lever : (-).0188.Z
[2] Peg Ø 4 mm : (-).0188.Q1
Remove.
WARNING: Mark the direction of fitting in case the belt is to be reused.
Compress the tensioner roller (1) by action at «a» (anti-clockwise), using tool [1].
Peg at «b», using tool [2].
Remove the auxiliaries drive belt.
Refit.
Refit the auxiliaries drive belt.
Compress the tensioner roller (1) by action at «a» (anti-clockwise), using tool [1].
Remove the tool [2] at «b».
Angl.T3-page032-190-2005 4/02/05 15:15 Page 105
