243

CLUTCH

GEARBOX

TRANSMISSION

4 HP 20 GEARBOX: TIGHTENING TORQUES

Engines: 4HX - XFW - 4HW

ightening torques (m.daN).

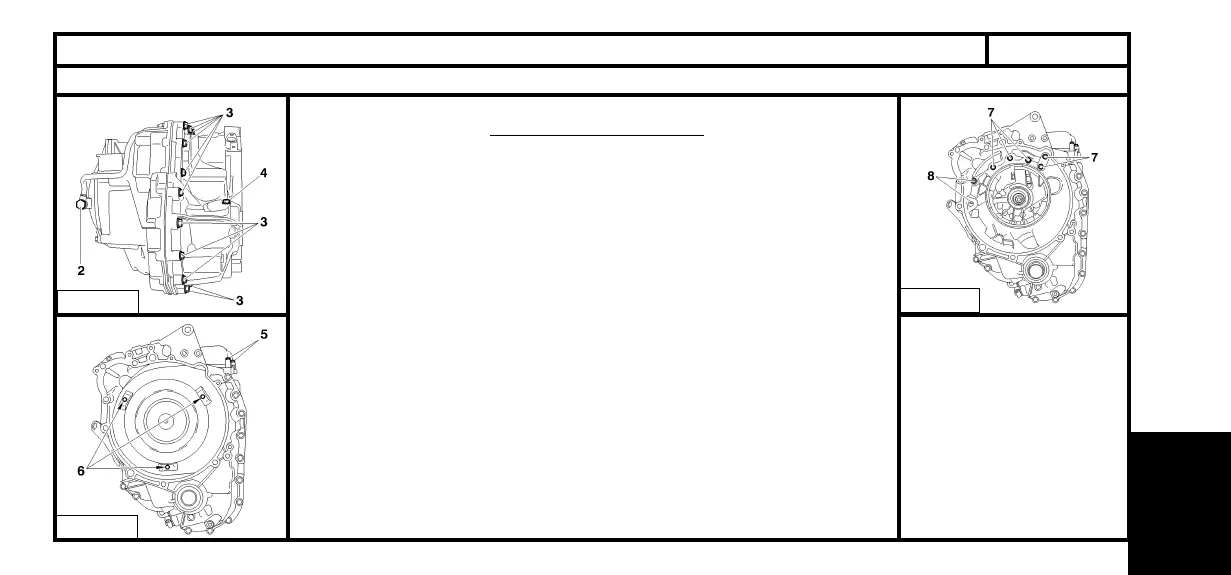

Gearbox exterior.

(2) Oil channel union fixing : 2,5 ± 0,5

(3) Exterior fixing of converter cover on clutch housing : 2,3 ± 0,5

(4) Speedometer take-off aperture plug : 1 ± 0,1

(5) Steel casing fixing : 0,6 ± 0,1

(6) Converter fixing on engine : 6 ± 1

(7) Interior fixing of converter cover on clutch housing : 2,3 ± 0,5

(8) Torx fixing of converter cover on clutch housing : 2,3 ± 0,5

Drain plug : 4,5 ± 0,8

Heat exchanger fixing : 3,5 ± 0,5

Selector lever position switch fixing : 1 ± 0,2

Converter cover fixing on engine cover (XFX engine) : 6,5 ± 1

Converter cover fixing on engine cover (4HX engine) : 5,8 ± 1

B2CP3CZC

B2CP24BC

B2CP24CC

C5 - C8

Angl.T3-page207-255-2005. 4/02/05 15:19 Page 243
