249
CLUTCH
GEARBOX
TRANSMISSION
4 HP 20 GEARBOX CONTROLS: CHECKS AND ADJUSTMENTS
Engines: XFW - 4HW
On refitting.
IMPERATIVE: Fit new clips and collars.
WARNING: Check that the gear control cables are correctly routed.
Proceed in opposite order to removal.

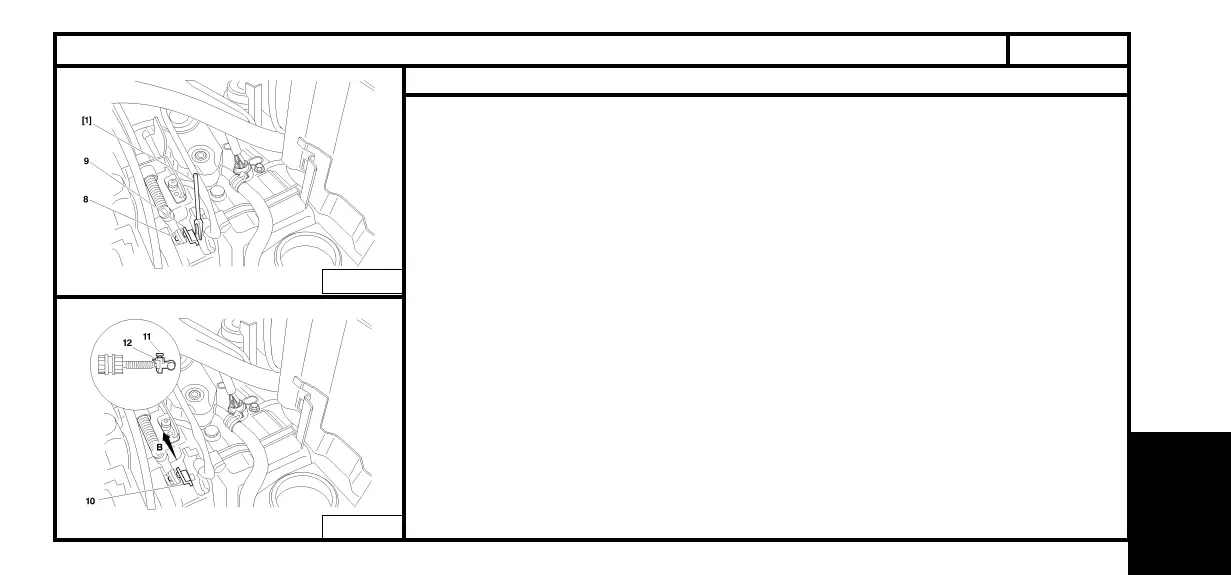

IMPERATIVE: To clip the ball-joint (8) position tool [1] (ball-joint extractor (-).0338.E) under
the selection lever (9).
If necessary, adjust the selection control (if new or maladjusted).
Adjusting the selection control.
Selection lever in position «P».
Engagement lever (10) as far as possible towards the rear of the vehicle (B).
Lock the adjustments of the gears by pressing on the plastic component (11).
The adjustment is complete.
Check all the gear selection control positions.
NOTE: to unlock the gear control adjustment system, press on the plastic component (12).
B2CKUBXD
B2CKUBYD
C8
