CITROEN C8 2005 - Peg for Positioning the Dynamic Tensioner Roller

123
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: RFN
B1EK1T7D
Tools.
[1] Camshaft setting peg : (-) 0189.A
[2] Crankshaft setting peg : (-).0189.R
[3] Timing belt retaining pin : (-).0189.K
[4] Adaptor for angular tightening : 4069-T
[5] Tool for moving and locking the tensioner roller : (-).0189.S
[5a] : (-).0189.S1
[5b] : (-).0189 S2
[6] Peg for positioning the dynamic tensioner roller : (-).0189.J
Removing.
Disconnect the battery.
Remove:
- The under-engine shield.
- The auxiliary drive belt (see corresponding operation).
Move aside:
- The fuel delivery pipe.
- The canister purge electrovalve.
- The expansion chamber.
Remove:

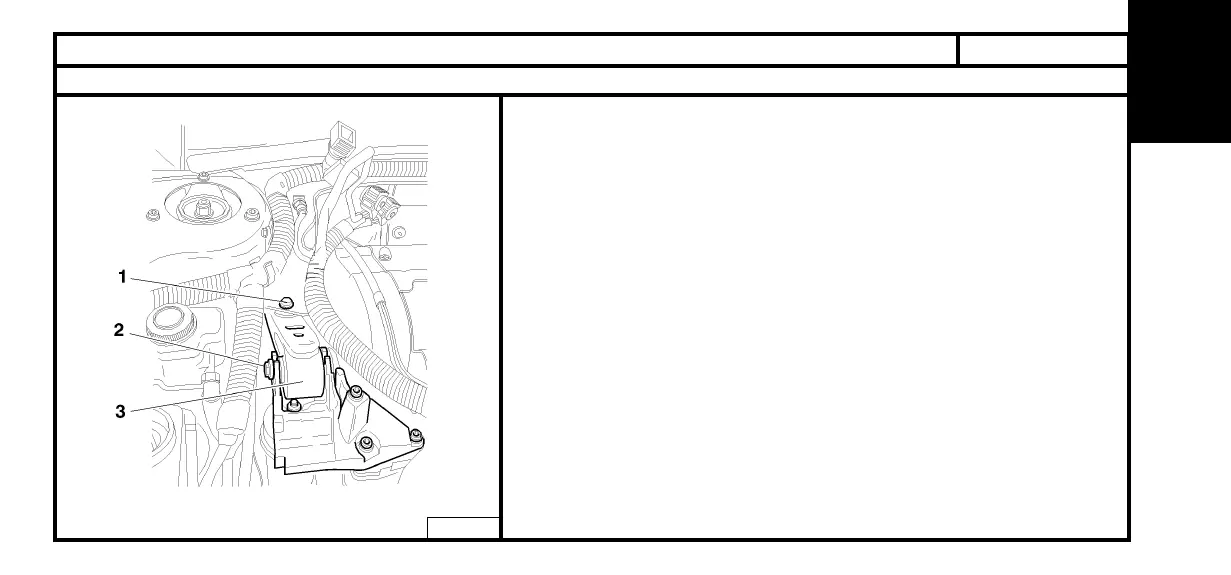

- The screws (1) and (2).
- The torque reaction rod (3).
