CHECKING THE VALVE TIMING
Engine: RFJ

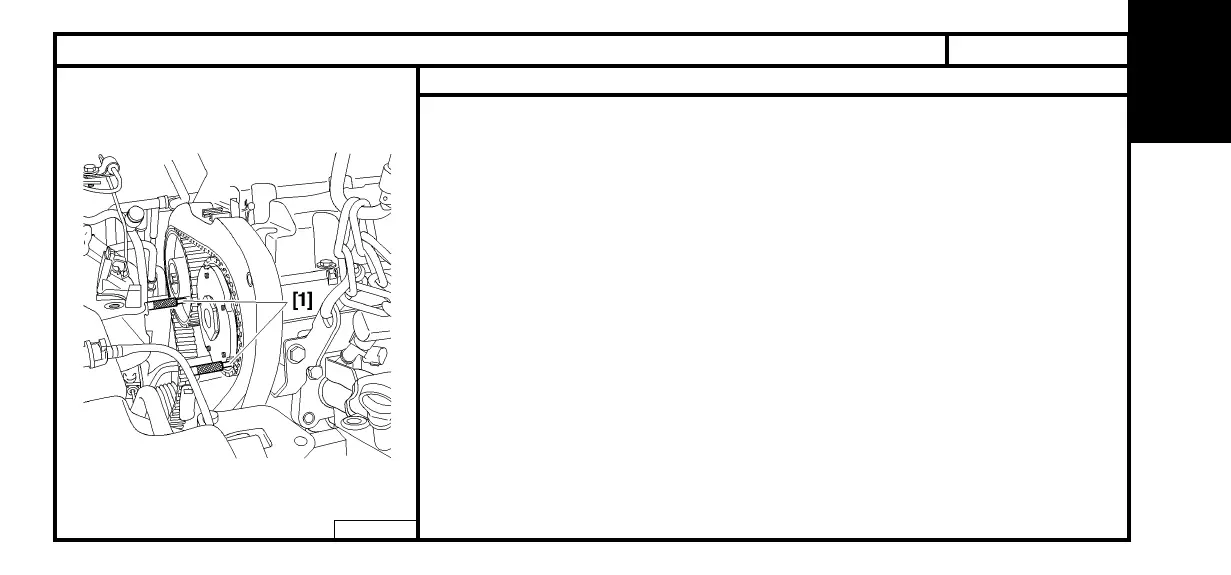

Peg the camshaft pulleys, using tool [1].
NOTE: The pegs [1] should go in without forcing.
WARNING: If the pegs go in only with difficulty, repeat the operation for fitting and tensioning
the timing belt (see corresponding operation).
Refitting.
Remove the pegs [1] and [2].
Refit:
- The upper timing cover.
- The RH engine support.
Remove tool [3].
Refit :
- The splash-shield.
- The plastic pins.
- The front RH wheel.
