119
ENGINE

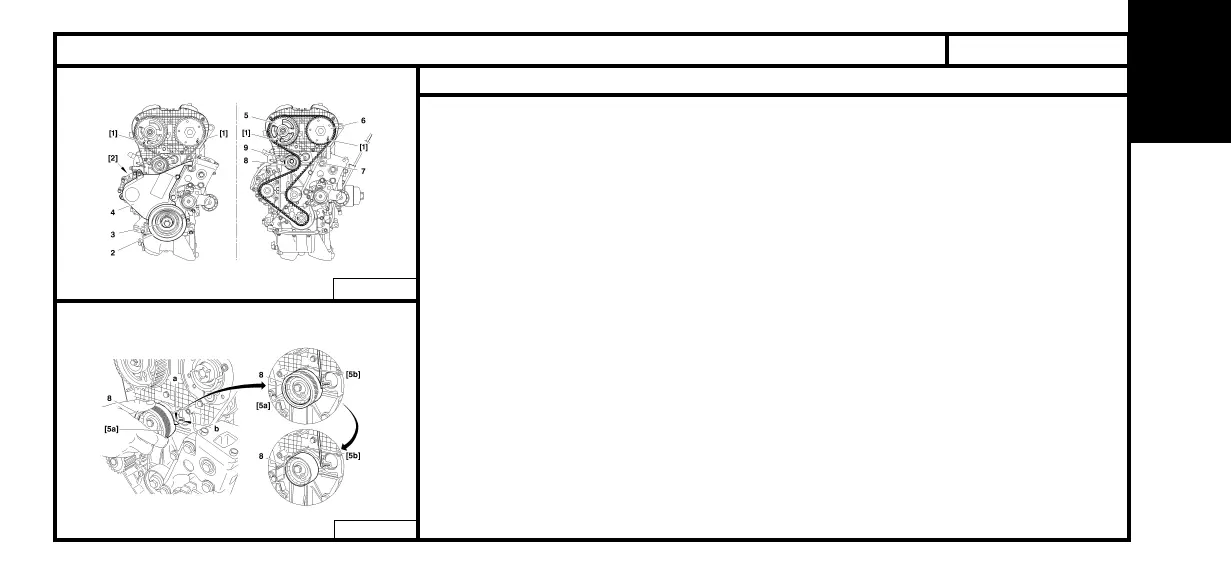

CHECKING AND SETTING THE VALVE TIMING
Engine: RFJ
Peg the camshaft pulleys (5) and (6), using tool [1].
IMPERATIVE: Never remove the crankshaft pulley (2) without pegging the crankshaft and
the camshafts.
Remove:
- The screw (3).
- The crankshaft pulley (2).
- The lower timing cover (4).
Slacken the screw (9) of the tensioner roller (8).
Turn the tensioner roller (8) clockwise.
Remove the timing belt (7).
Refitting.
Turn the tensioner roller (8), using tool [5a], to go past the slot «b».
Position the tool [5b] to lock the index «a» and remove the tool [5a].
B1EP1EVD
C5
B1EP1EUD
Angl.T3-page032-190-2005 4/02/05 15:15 Page 119
