177
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: 4HX
Setting the valve timing (continued).
Refit.

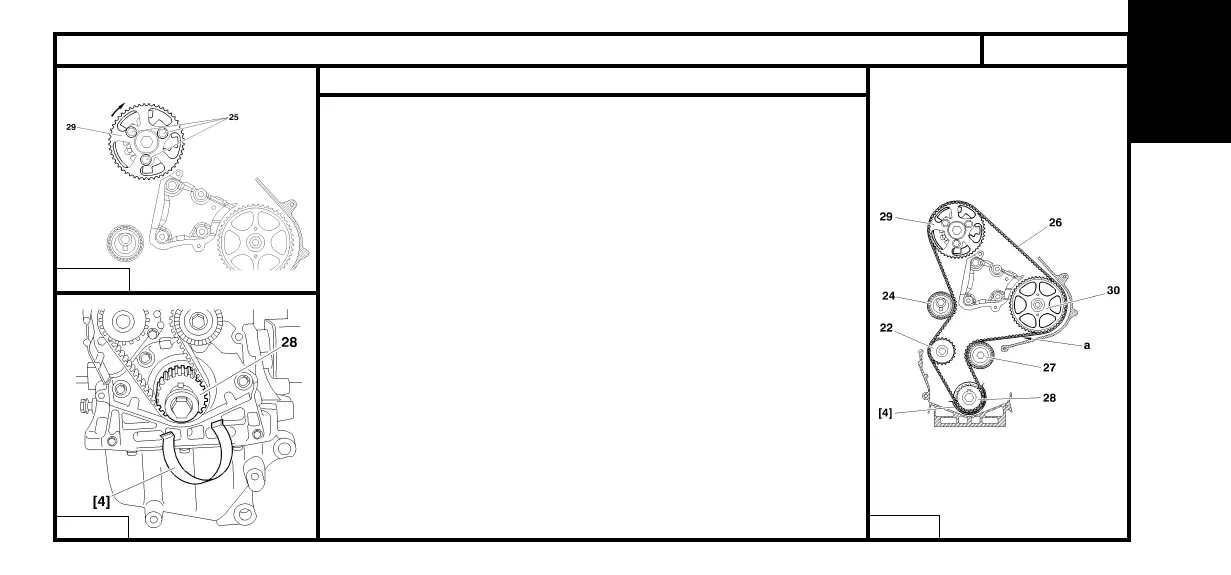

- Retighten the screws (25) by hand.
- Turn the pinion (29) (clockwise) to the bottom of the buttonhole.
- Refit the belt on the crankshaft (28).
- Hold the belt, using tool [4].
Reposition the timing belt, keeping the belt tight at «a», in the following order:
- Guide roller (27).
- Fuel high pressure pump pinion (30).
- Camshaft pinion (29).
- Water pump pinion (22).
- Tensioner roller (24).
NOTE: If needed, slightly turn the pinion (29) anti-clockwise (not by more
than one tooth).
- Remove the tool [4].
B1EP15CC
B1EP15DD
B1EP15BD
C5
