WS2H and WS3 Manual Page 17
SYSTEM SETUP 1
SYSTEM SETUP 2A
SYSTEM SETUP 2B

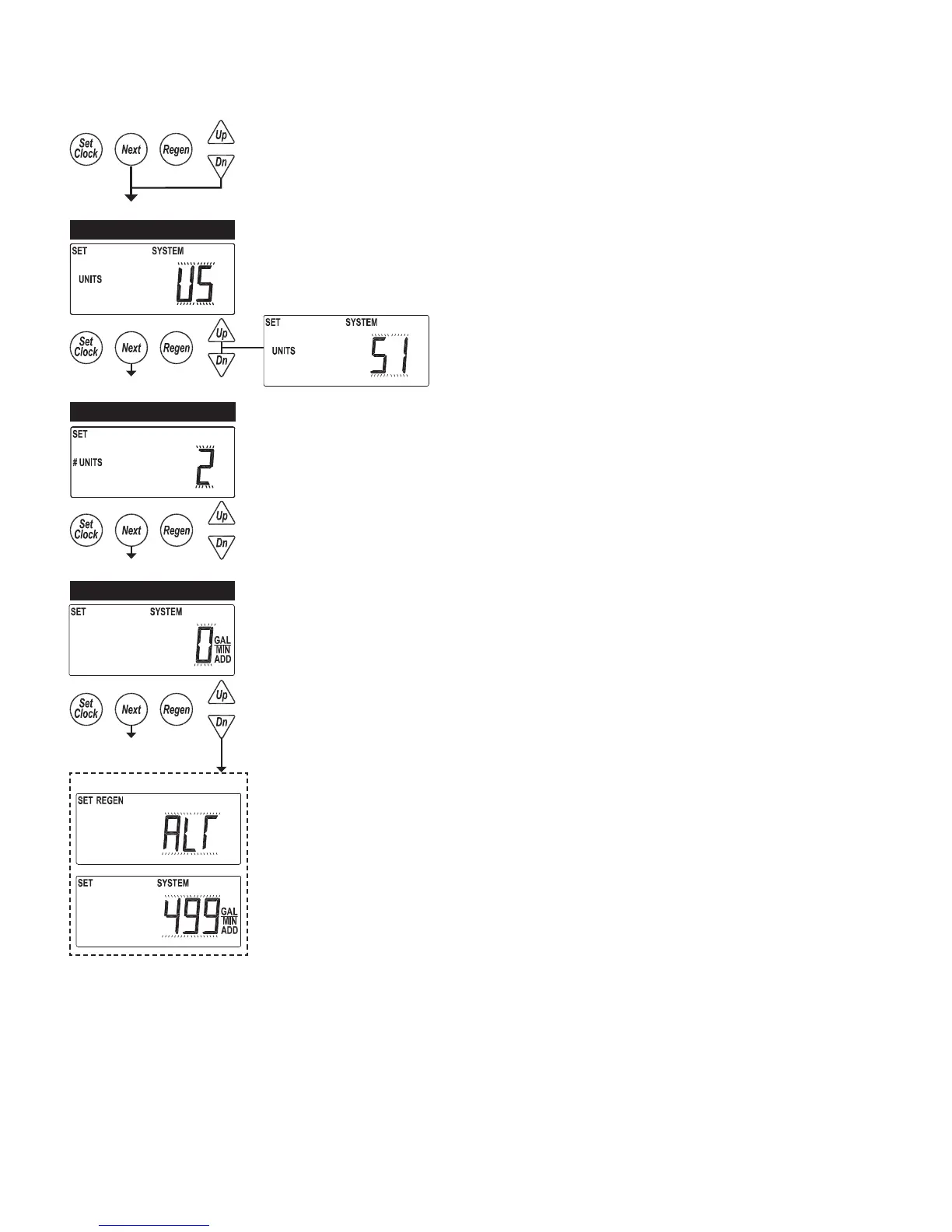

SYSTEM SETUP SCREENS
Accessed by pressing NEXT and DOWN simultaneously for >3 seconds.
• System setup screens will be hidden on units determined to be a slaves of a system
- Slave units need to be reset, “Next” & “Regen”, from the Timer 1 screen to have their
slave status tuned off.
SYSTEM SETUP 1 – Select units of operation
US: Volume measurements are in gallons, time is displayed in 12 hour format, meter
selections are in inches.
SI: Volume measurements are in liters or cubic meters, time is displayed in 24 hour format,
meter selections are in mm.
SYSTEM SETUP 2A - Set number of units
1 – 2 Up to 2 units can be connected off the communicate port of the main board
3 – 4 Requires an optional system board to expand communication ports
SYSTEM SETUP 2B – Select System Type / Operation
• Setting a ow rate adder point determines the system operation
0: Parallel Flow; All units are always online unless they are regenerating.
• Units in a parallel ow system will determine the need to regenerate based on:
- Any one unit reaching 0 capacity
- Day over ride
• Any one units need to regenerate will initiate sequential regenerations of all units (series
regeneration)
• On0 systems will regenerate all units in series at the rst available time slot
• Delayed units will regenerate at each available time slot, one unit per time slot
ALT: Operates the system as an alternator, having one unit off line at all times either
regenerating or fully regenerated.
• A unit in an alternator system will determine the need to regenerate based on:
- The current “lead” unit reaching 0 capacity
• On0 systems immediately regenerate and alternate the exhausted unit with a fully
regenerated standby unit.
• Delayed systems will immediately alternate the exhausted unit with a fully regenerated
standby unit, and regenerate at the next available time slot.
- “Lead” unit regenerates based on “Lag” units
• The rst “lag” unit depleting down to 15% less than its ratio of system capacity
- 1/3 for a 4 unit; ½ for a 3 unit
- The second “lag” unit depleting down to 15% less than its ratio of system capacity
• 2/3 for a 4 unit
• Delayed systems will ag “lead” units based on “lag” capacity, but will not alternate
with remaining capacity until the next available delayed time.
- Day over ride
• 1 day; 1 unit will regen
• Day triggered regens will run at the time set in DEL-1
