Clack WS2H User Manual

Page 46 WS2H and WS3 Manual

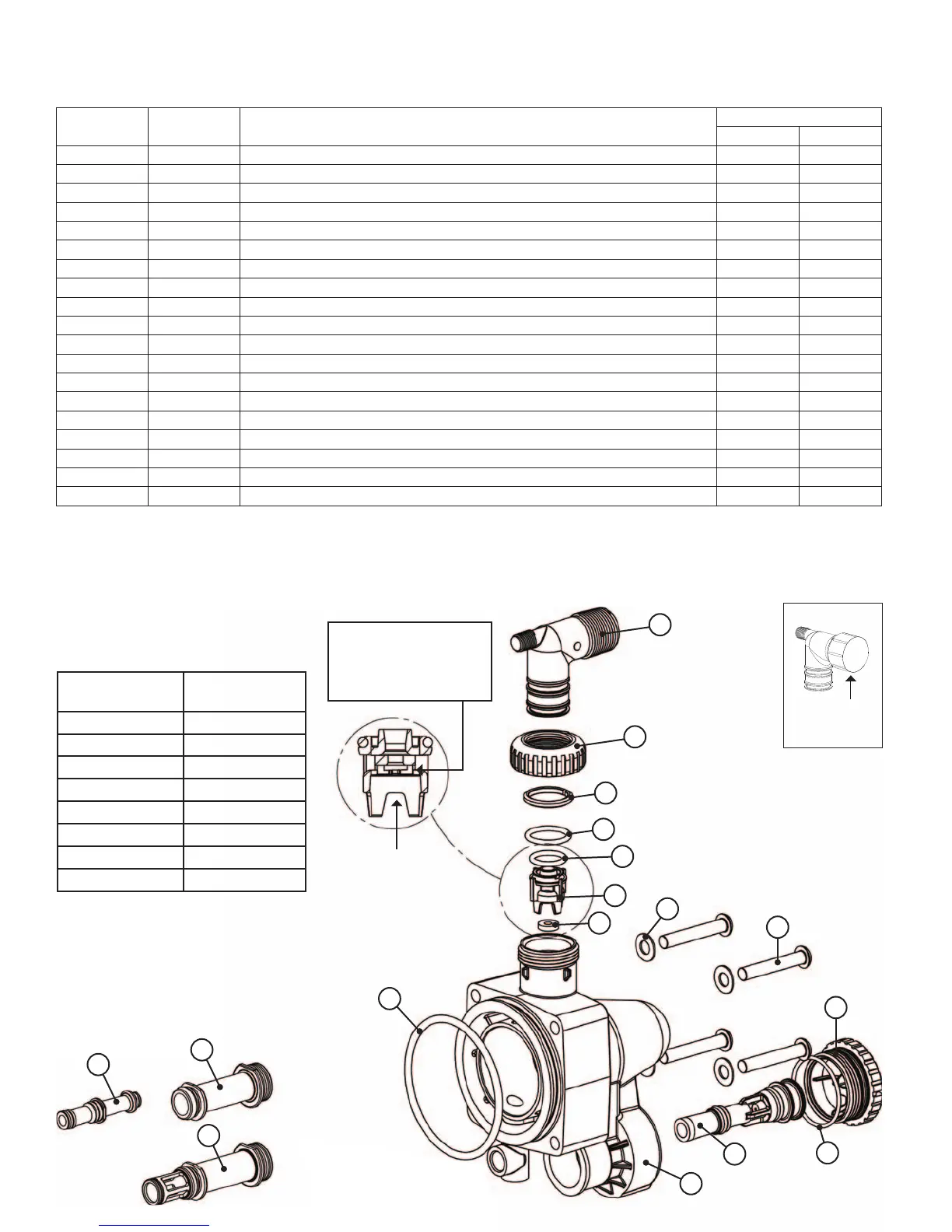

WS2H AND WS3 BRINE VALVE BODY AND INJECTOR COMPONENTS
Drawing No. Order No. Description
Quantity
WS2H WS3
1 V3237-01 WS2H/3 SOFTFILL TUBE ASY 1 1
2a V3236-04* WS2H INJECTOR TUBE ASY FOR A THRU H 1
2b V3670-01** WS3 INJECTOR TUBE DOWNFLOW ASY 1
3 V3289 O-RING 344 1 1
4 V3067 WS2H/3 BRINE BODY ASY 1 1
5 V3477 WS2H/3 INJECTOR CAP 1 1
6 V3152 O-RING 135 1 1
7 V3275 WS2H/3 SCREW BSHD SS 3/8-16X2-1/4 (7/32” hex allen wrench required) 4 4
8 V3291 WS2H/3 WASHER SS 3/8 4 4
9 V3162-022*** WS1 DLFC 022 FOR 3/4 1 1
10 V3231 WS2H/3 REFILL FLOW CNTRL RETAINER 1 1
11 V3277 O-RING 211 1 1
12 V3105 O-RING 215 1 1
13 V3150 WS1 SPLIT RING 1 1
14 V3151 WS1 NUT 1 QC 1 1
15 V3149 WS1 FTG 1 MALE NPT ELBOW 1 1
Not Shown V3189 WS1 FTG 3/4&1 PVC SLVNT 90 Optional Optional
Not Shown V3499***** WS2H/3 FITTING CAP 1 IN THREADED 1 1
Not Shown V3797****** WS1 FTG 1 MALE BSPT ELBOW BSPT Only BSPT Only
*V3236-04 WS2H INJECTOR TUBE ASY A thru H contains a V3285 O-RING 213 and a V3286 O-RING 216.
**V3670-01 WS3 INJECTOR TUBE DOWNFLOW ASY contains a V3285 O-RING 213, V3286 O-RING 216 and a V3163 O-RING 019.
***Any V3162-XXX  ow control may be used. V3237-01 WS2H SOFTFILL TUBE ASY contains a V3155 O-RING 112, V3287 O-RING 110 and a V3288 O-RING 206.
****V3010-2A through V3010-2G injectors contain a V3283 O-RING 117 and a V3284 O-RING 114. V3010-2H injectors use a V3283 O-RING 117 and D1263 O-RING 116.
Backwash Only Valves include a V3499 but do not include the following parts: V3189, V3162-022, V3231 and V3277.
***** Install V3499 on V3149 if valve is to be set up as a backwash only valve.
****** BSPT valves also include a V3797 WS1 FTG 1 MALE BSPT ELBOW
WATER
FLOW
WS2H AND WS3 VALVE INJECTOR
ORDER INFORMATION
Injector Order
Number
Typical Tank
Diameter
1
V3010-2A 18”
V3010-2B 21”
V3010-2C 24”
V3010-2D 30”
V3010-2E 36”
V3010-2F 42”
V3010-2G 48”
V3010-2H 63”
1
Actual injector size used may
vary depending on the design and
application of the system. Injectors in
table are sized for a typical down ow
softener using standard mesh synthetic
cation exchange media regenerating
with sodium chloride.
1
2A
2B
3
4
16
6
5
7
8
15
14
13
Proper RFC orientation
directs re ll water  ow
towards the washer face
with radius and text.
12
11
10
9
Backwash Only
V3499 Cap
installed
from factory
