WS2H and WS3 Manual Page 35
CUSTOM MOTORIZED DRIVE TIMING
• Used to alter the standard timing sequence of the motorized isolation valve for
complete custom timing of the drive circuits
- Setup procedure applies to both the “Bypass” drive of the main board and “Aux
Drive” of the optional expansion board
• Customization needs to be done after de ning the regeneration cycle sequence
• Accessed by pressing the Up & Dn arrows simultaneously while in the No Hard
Water Bypass selection
- Next will scroll through each cycle of the regeneration program
- Arrow buttons toggle Standby and Online indicating the desired position the
drive during that cycle of the regeneration.

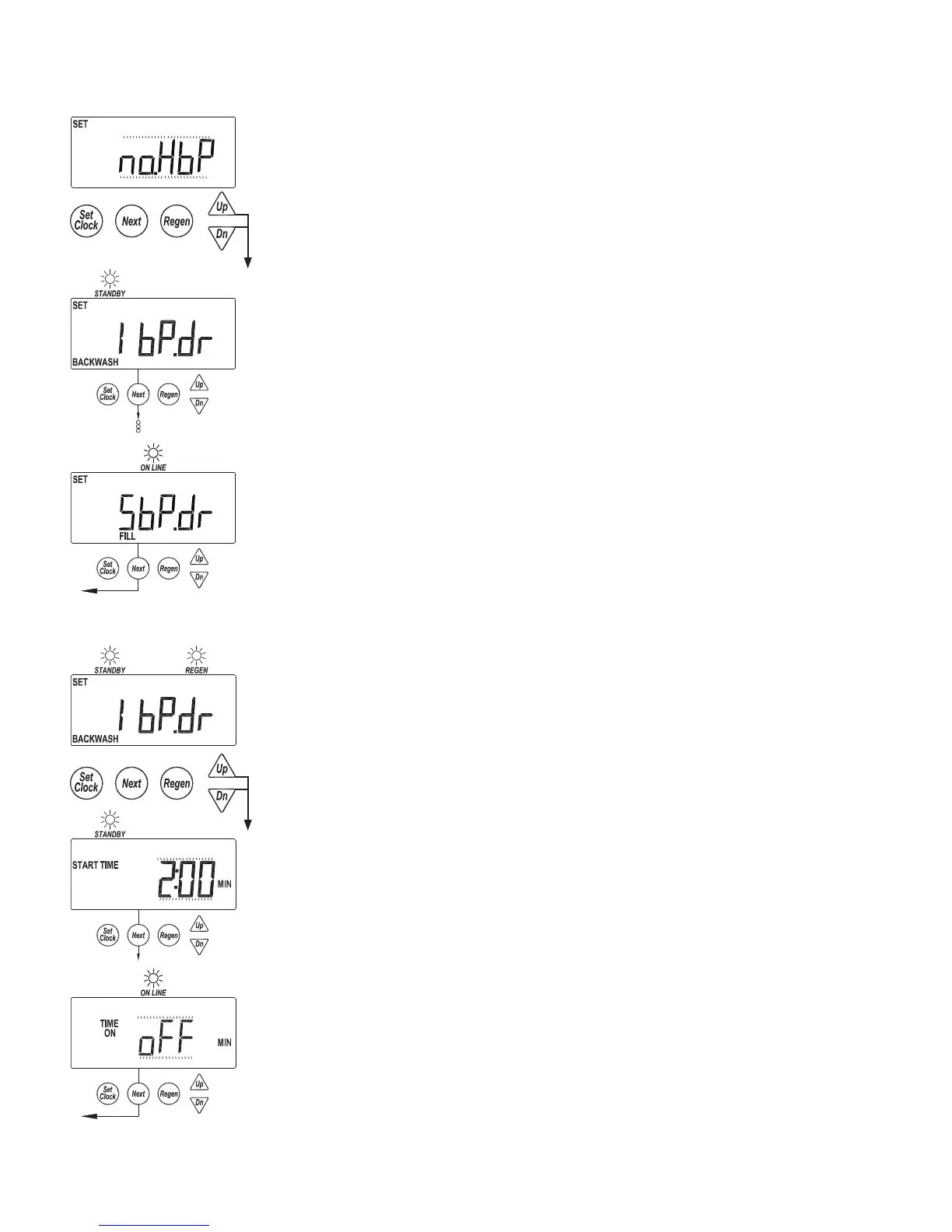

- In the example screens the “Bypass” drive will be transitioning of ine for
Backwash (Cycle 1) and coming online for Fill (Cycle 5).
• Timing can be further customized per cycle by adding a time delay to the
sequence
- Accessed by pressing the Up & Dn arrows simultaneously while in the drive
sequence screens
- Setting a “Start Time” delays the start of that transition after reaching set cycle
- A second time screen then sets the time the drive maintains that set position
before transition back to its previous position.
- “Regen” will be illuminated to identify that a sequence has a time modi er
associated with it
- In the example screens the “Bypass” drive will delay its transition to of ine until 2
minutes into Backwash (Cycle 1) and coming online for Fill (Cycle 5).
