WS2H and WS3 Manual Page 45
Install V3672 upper diffuser (not shown) when using the 6” Flange Base (V3090)

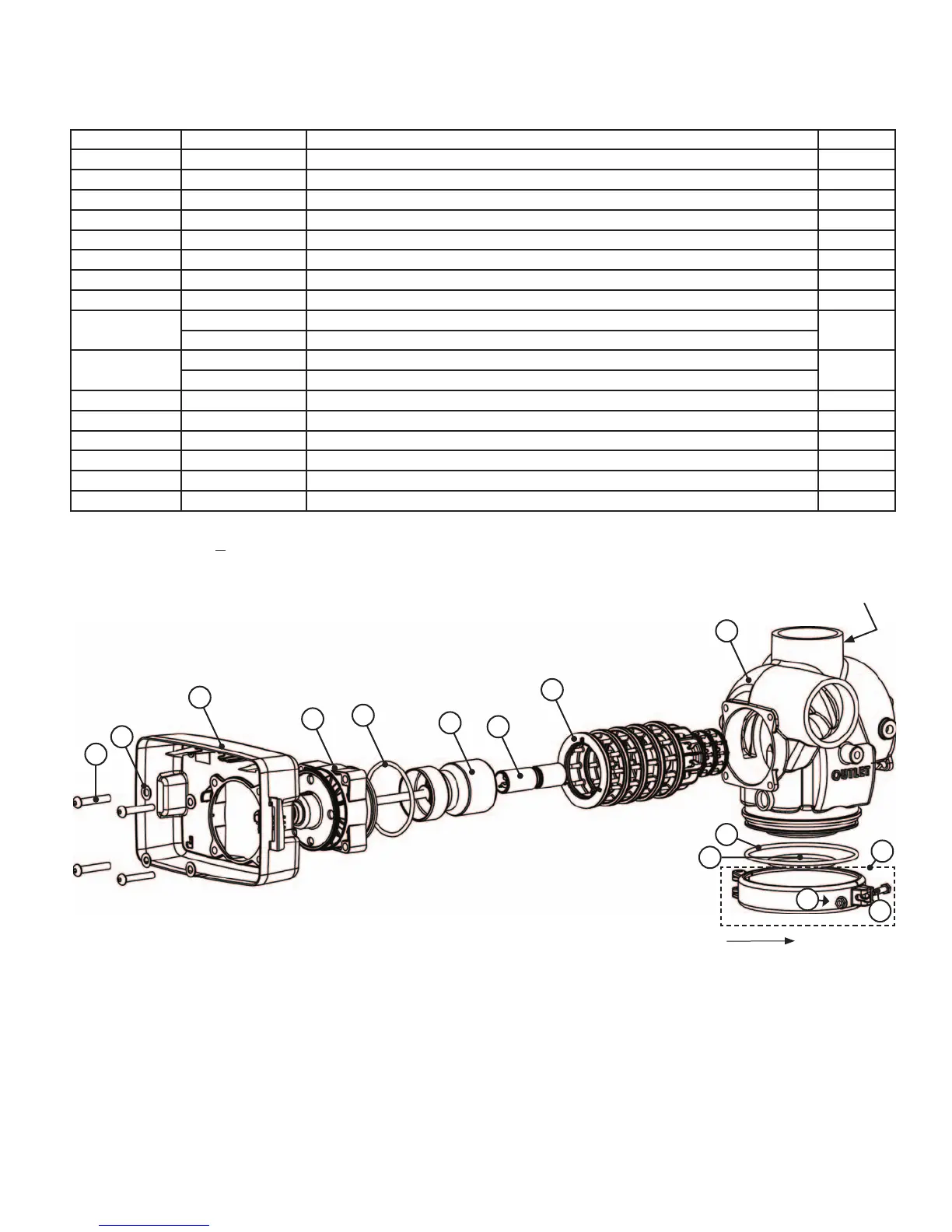

WS3 DRIVE CAP ASSEMBLY, DOWNFLOW PISTON, REGENERANT PISTON, SPACER STACK
ASSEMBLY, DRIVE BACK PLATE AND MAIN BODY
Drawing No. Order No. Description Quantity
1 V3275 WS2H/3 SCW BSHD SS3/8-16X2-1/4 (7/32” hex allen wrench required) 4
2 V3291 WS2H/3 WASHER SS 3/8 4
3 V3225 WS2H/3 BACK PLATE 1
4 V3093 WS3 DRIVE ASY 1
5 V3289 O-RING 344 1
6 V3666-01 WS3 PISTON 1
7 V3238-01** WS2H/3 BRINE PISTON 1
8 V3092 WS3 STACK ASY 1
Not Shown
V3468-04 WS15/2/3 PLUG 1/4NPT PLST TAPE
2
V3465-04 WS15/2/3 PLG 1/4BSPT PLST TAPE
9
V3667-03 WS3 BODY W/V3468 PLUG
1
V3667BSPT-03 WS3 BSPT BODY W/V3465 PLUG
10 V3763 O-RING 361 1
11 V3762 O-RING 341 FOR VALVE BODIES WITH NPT OR BSPT THREADS 1
12 V3091* WS3 BASE CLAMP ASY 1
13 V3276 WS2H/3 BOLT HEX SS 5/16-18X1-3/4 1
14 V3269 WS2H/3 NUT 5/16-18 SS HEX 1
Not Shown V3672 TOP BAFFLE DFSR CLACK 3/90MM 1
*V3091 WS3 BASE CLAMP ASY includes a V3276 WS2H/3 BOLT HEX SS 5/16-18X1-3/4 and V3269 WS2H/3 NUT 5/16-18 SS HEX.
**V3238-01 Brine Piston is used for Backwash Only valves.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
B Indicates BSPT
N Indicates NPT
To Next Page
