WS2H and WS3 Manual Page 43

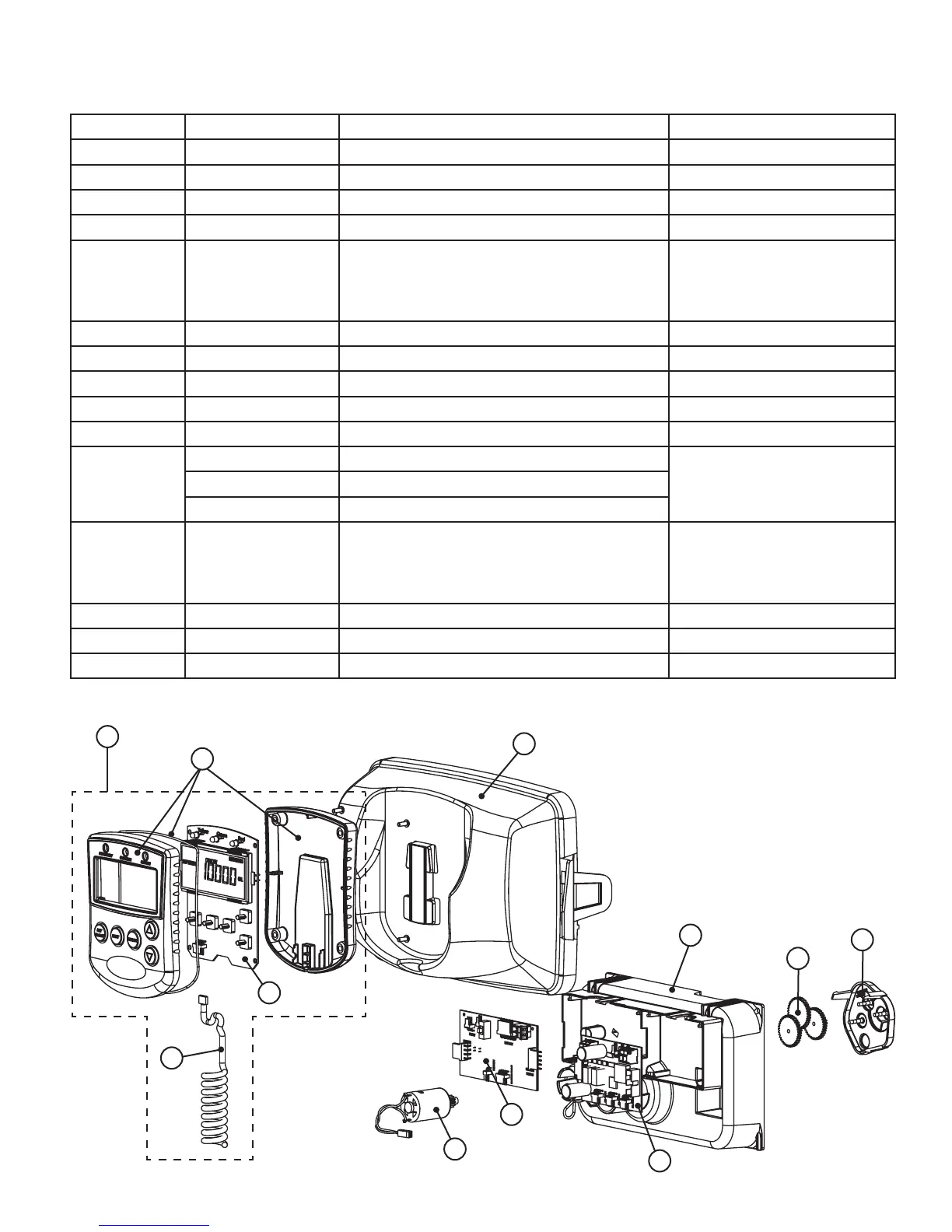

FRONT COVER AND DRIVE ASSEMBLY
1a
Drawing No. Order No. Description Quantity
1 V3068 WS2H/3 POD FRNT-BK COVERS 1
1a V3082 WS2H/3 POD ASY COMPLETE W/BOARD* Optional
2 V3241-01 BOARD WS2H/3 PC BOARD DISPLAY 1
3 V3248 WS2H/3 CABLE DISPLAY POD 1
4 V3242-01BOARD WS2H/3 PC BOARD VALVE
1
See Table 2 Software and
Power Supply Compatibility
for option Selection
5 V3224-01R WS2H/3 COVER ASY PLATINUM 1
6 V3107-01 WS1 MOTOR ASY 1
7 V3226-01 WS2H/3 DRIVE BRACKET ASY 1
8 V3110 WS1 DRIVE GEAR 12X36 3
9 V3109 WS1 DRIVE GEAR COVER 1
Not Shown
V3461-01 WS2H/3 AC ADAPTER 18VAC 1
See Table 2 Software and Power
Supply Compatibility for option
selection
V3461EU-01 WS2H/3 AC ADAPTER EU 18VAC
V3461UK-01 WS2H/3 AC ADAPTER UK 18VAC
10 V3243-01BOARD WS2H/3 PC BOARD SYSTEM
1
See Table 2 Software and
Power Supply Compatibility
for option Selection
Not Shown V3475-12 WS2H/3 SYS CONNECT CORD 12 FT RED Optional
Not Shown V3475-24 WS2H/3 SYS CONNECT CORD 24 FT BL Optional
Not Shown V3475-36 WS2H/3 SYS CONNECT CORD 36 FT YEL Optional
*Contains items 1,2 & 3 Pod Assembly, PC Board and Cable
5
2
3
6
4
1
7
10
8
9
