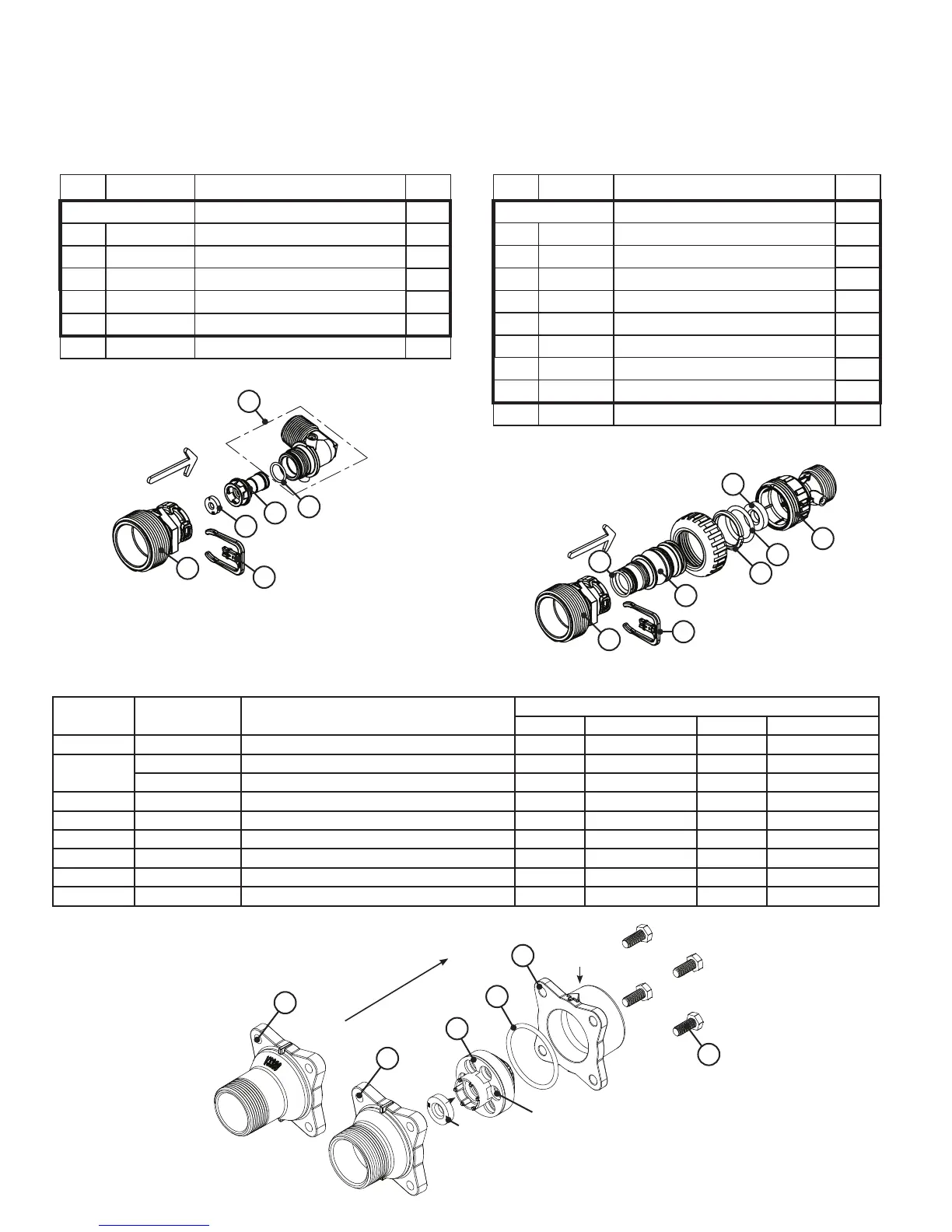

Page 50 WS2H and WS3 Manual
Item Part# Description Qty.
V3158-04 WS Drain Fitting, 3/4” Elbow
1 V3158-03 Drain Elbow, 3/4 NPT 1
2 V3159-01 DLFC Retainer Assembly 1
3 V3163 O-ring, -019 1
4 H4615 Locking Clip 1
5* V3983 WS2 DLFC Adapter 1
6 V3162-xx See DLFC Section 1
*Also available: V3414 WS1.5 DLFC Adapter
PVC Elbow, 0.7 - 10 GPM
Item Part# Description Qty.
V3008-05 WS Drain Fitting, 1” Straight
1 V3167 WS Drain Fitting Adapter, 1” NPT 1
2 V3166-01 Drain Fitting Body 1
3 V3151 WS1 Nut, QC 1
4 V3150 WS1 Split Ring 1
5 V3105 O-ring -215 1
6 V3163 O-ring -019 1
7 H4615 Locking Clip 1
8** V3983 WS2 DLFC Adapter 1
9 V3190-xx See DLFC Section 1
**Also available: V3414 WS1.5 DLFC Adapter
Inline Plastic, 9 - 25 GPM
Stainless Steel, 9 - 85 GPM
Direction of Flow
Direction of Flow
All drain line  ow control housings are shipped without  ow control washers.
See drain line  ow control washer section for available  ow selections.
DRAIN LINE FLOW CONTROLS
DLFC not
supplied.
At least one
V3190-XXX
must be
installed in
center hole.
Plugs may be
knocked out
or drilled to
use up to six
V3162-XXX.
Direction of Flow
B indictates
BSPT
N indicates
NPT
Drawing
No.
Order
No.
Description
Quantity
V3079 V3079BSPT V3080 V3080BSPT
1 V3081 WS15 RETAINER DLFC ASY 1111
2
V3645 WS15 DLFC FLANGE OUTLET FNPT 1 1
V3645BSPT WS15 DLFC FLANGE OUTLET FBSPT 1 1
3 V3646 WS15 DLFC FLANGE INLET MNPT 1 1
4 V3388 WS125 DLFC FLANGE INLET MNPT 1 1
5 V3652 B S 5/16-18x3/4 4444
6 V3441 O-RING 226 1111
7 V3162-xx See DLFC Table 0-6 0-6 0-6 0-6
8 V3190-xx See DLFC Table 1111
1
3
2
6
4
5*
1
4
5
2
7
1
3
8**
1
6
2
5
3
4
