Page 6 WS2H and WS3 Manual
1) Terminate end with a Molex series 2695 housing, part num-
ber 22-01-3037 and (3) Molex series 41572 (or 40445) pins,
part number 08-65-0805 (or 97-00-44).
2) Auxilliary meter must be able to operate on 5VDC
Pin 1 = +5VDC,
Pin 2 (Center) = Signal
Pin 3 = Ground
3) Acceptable pulse input is .1 – 999 pulses/gallon, or
.4 –519 pulses / liter.

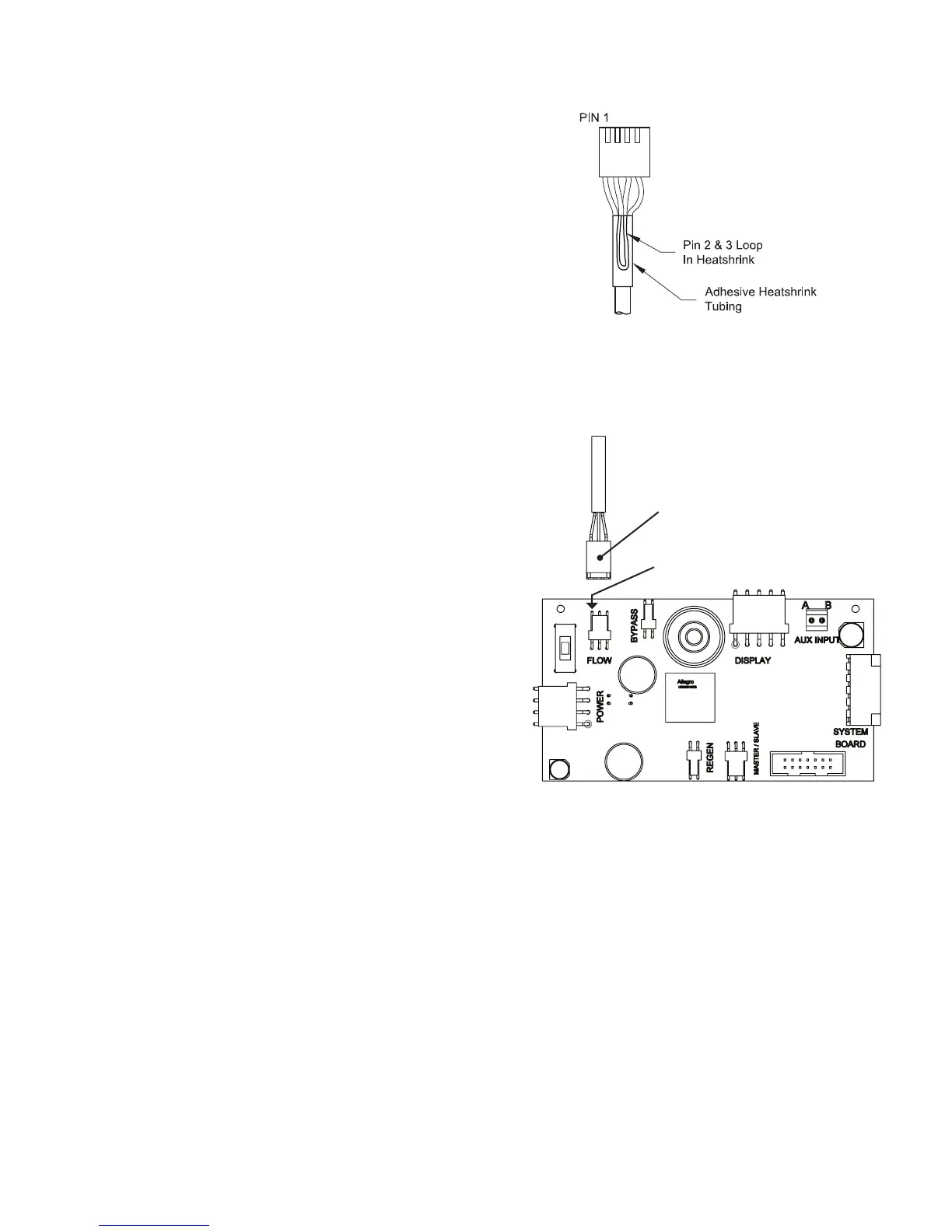

WIRING FOR CUSTOM AC ADAPTER
1. See Table 2 Software and Power Supply Compatibility.
2. Cable should be one unshielded pair of 22AWG, UV resistant
UL2464 compliant wire.
3. Connector details:
a. Terminate end with one Molex white housing,
P/N 09-50-8043 and four Molex pins, P/N 08-50-0108.
b. Pin 1 = AC from power supply (White)
Pin 2 = Jumper to Pin 3
Pin 3 = Jumper to Pin 2
Pin 4 = AV from power supply (Black)
CUSTOM METER WIRING
Molex
Housing
Pin 1
To Next Page
