Page 8 WS2H and WS3 Manual
TYPICAL SYSTEM EXAMPLES

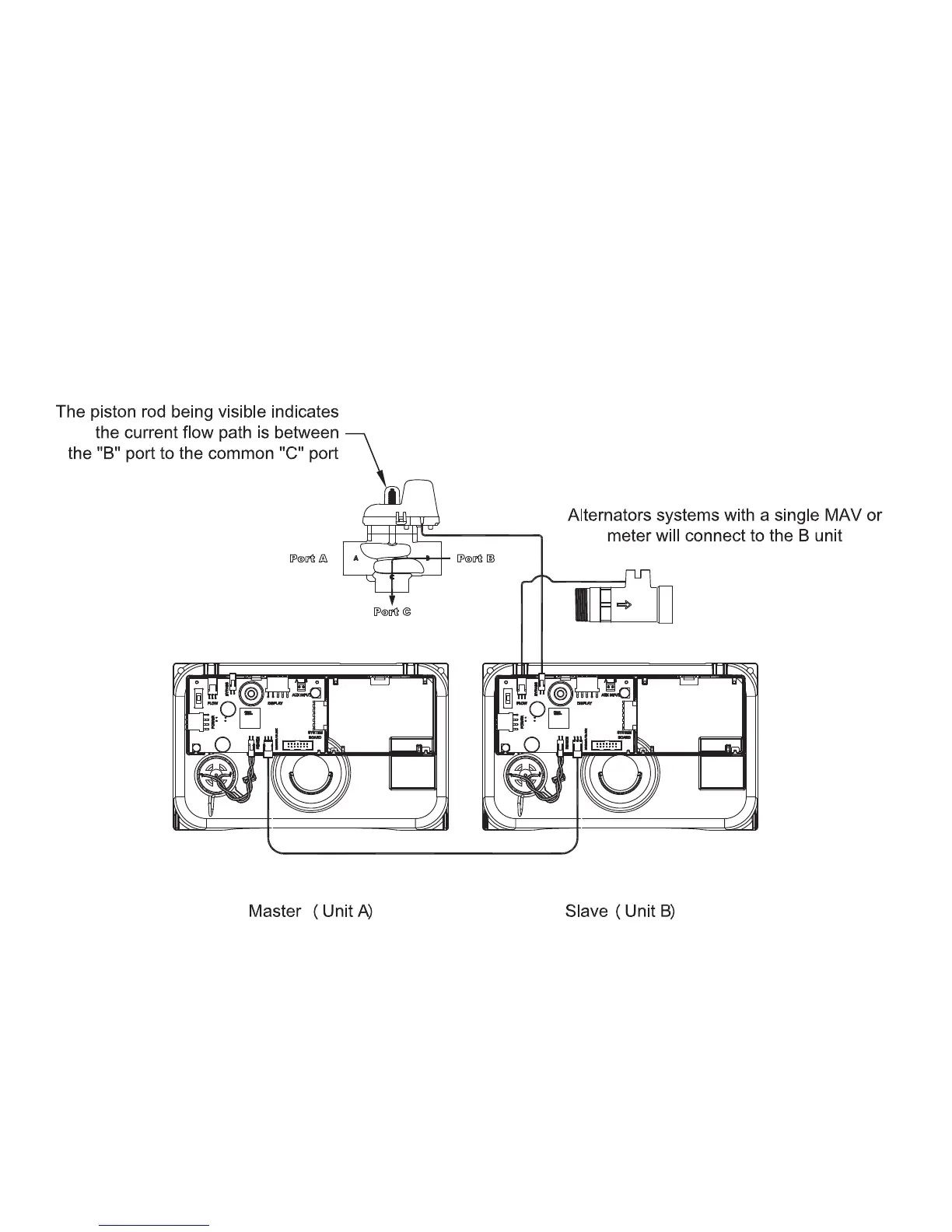

Twin Tank System, Simple Alternator (Sharing a MAV)
System consists of 2 power heads, 1 communication cable and 1 MAV
Electrical Connections:
• The MAV’s motor wire is connected to the 2-pin connector labeled BYPASS on Unit 2 (Unit B) PC board
• The communication cable is connected to each unit’s 3-pin connector labeled MASTER/SLAVE
• If a single external meter is used, it should be connected to the 3-pin connector on Unit 2 (Unit B) labeled FLOW.
NOTE: When using a single external meter, “SYSTEM PULSES” and the proper pulse rate must be selected in the
programming section.
Plumbing Connections:
• To regenerate with raw/untreated water, the outlet of each unit is piped to the MAV. Port A will be piped to the Master
(Unit A) , Port B to the slave (Unit B), and Port C to the common supply outlet.
• To regenerate with soft/treated water, the inlet of each unit is piped to the MAV. Port A will be piped to the Master
(Unit A), Port B to the slave (Unit B) and Port C to the common supply outlet.
