WS2H and WS3 Manual Page 49
Drawing No. Order No. Description Quantity
1 V3280 O-RING 332 1
2 V3260BSPT-01 WS2H SIDE MOUNT BASE BSPT 1
When using a side mount base with 2H or 2QC BSPT valves replace distributor
pilot o-ring V3452 O-RING 230 with V3280 O-RING 332. See exploded view of 2H
or 2QC valve for speci c location of distributor pilot o-ring.

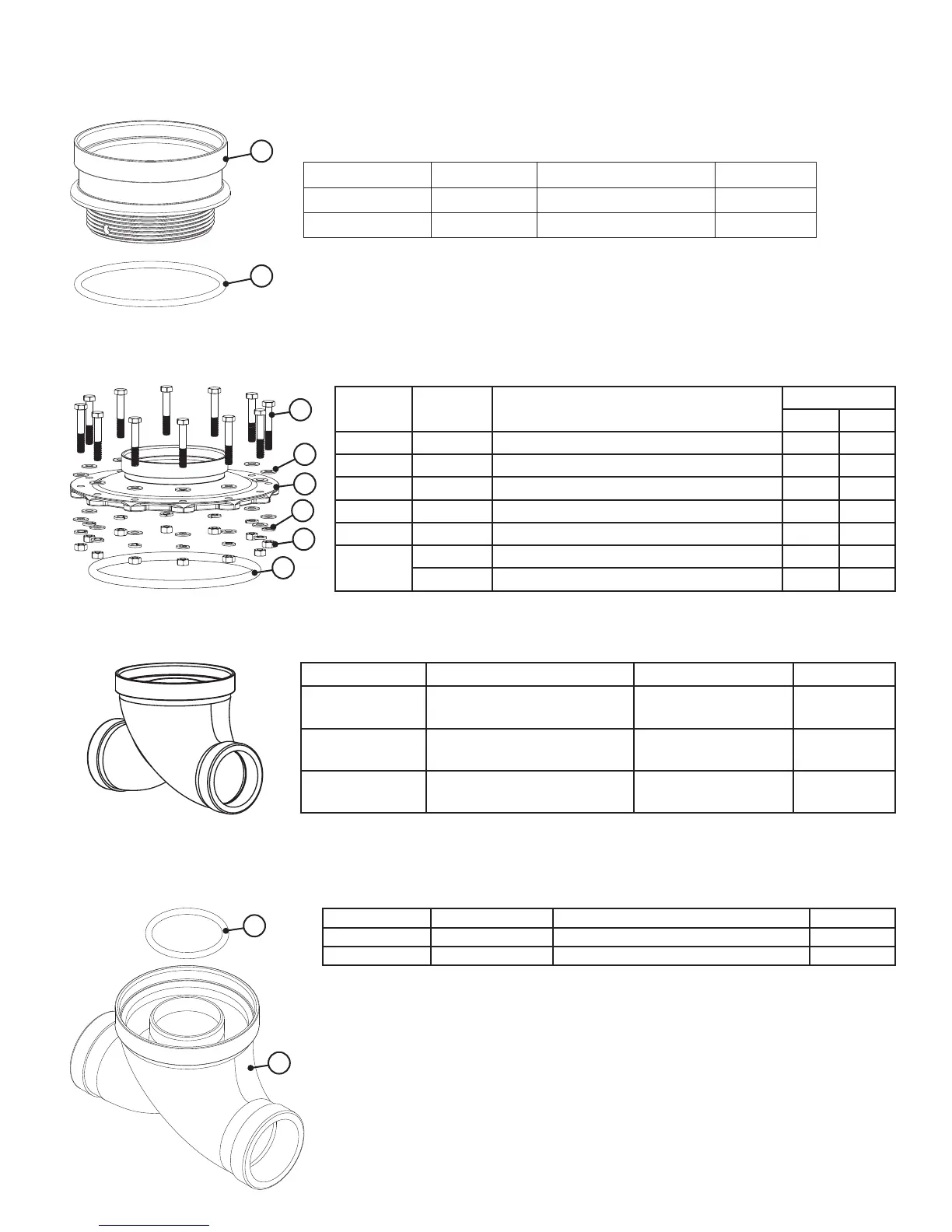

V3260BSPT-02 WS2H/2QC SIDE MOUNT BASE BSPT ASSEMBLY
Drawing
No.
Order
No.
Description
Quantity
V3055 V3090
1 V3444 WS2H SCREW HEXCAP 5/16-18X2 SS 12 12
2 V3293 WS2H WASHER SS 5/16 FLAT 24 24
3 V3445 WS2H WASHER SPLIT LOCK 5/16 SS 12 12
4 V3447 NUT HEX 5/16-18 SILICON BRASS 12 12
5 COR60FL O RING 6 FLANGE ADAPTER 1 1
6
V3261-01 WS2H FLANGE BASE 1
V3671-01 WS3 FLANGE BASE 1
V3055 WS2H/2QC 6 INCH FLANGE BASE ASY or V3090 WS3 6 INCH FLANGE BASE ASY
Drawing No. Order No. Description Quantity
1 V3202-01 WS2H BASE 1
2 V3419 O-RING 347 1
V3064 WS2H/2QC 4 INCH BASE ASY (FOR USE ON WS2H OR WS2QC ONLY)
Order No. Description Inlet/Outlet For Valve
V3260-02 WS2H/2QC SIDE MOUNT
NPT ASY
2” Female NPT or
2.5” Groove Lock
WS2H NPT
V3674-02 WS3 SIDE MOUNT
NPT ASY
3” Female NPT WS3 NPT
V3674BSPT-02 WS3 SIDE MOUNT
BSPT ASY
3” Female BSPT WS3 BSPT
2
1
WS2H/2QC SIDE MOUNT BASE ASSEMBLY
1
2
3
4
6
5
1
2
To Next Page
