Clack WS2H User Manual

Page 48 WS2H and WS3 Manual
Order No. V3010-2B
Metric Units
Total
Slow Rinse
Draw
0
3
6
9
12
15
18
21
100 200 300 400 500 600 700 800 900
Pressure (kPa)
Flow Rate (lpm)
Order No. V3010-2D
Metric Units
Total
Slow Rinse
Draw
0
5
10
15
20
25
30
35
40
100 200 300 400 500 600 700 800 900
Pressure (kPa)
Flow Rate (lpm)
Order No. V3010-2F
Metric Units
Total
Slow Rinse
Draw
0
10
20
30
40
50
60
70
100 200 300 400 500 600 700 800 900
Pressure (kPa)
Flow Rate (lpm)
Order No. V3010-2E
Metric Units
Total
Slow Rinse
Draw
0
10
20
30
40
50
60
100 200 300 400 500 600 700 800 900
Pressure (kPa)
Flow Rate (lpm)
Order No. V3010-2A
Metric Units
Total
Slow Rinse
Draw
0
2
4
6
8
10
12
14
16
100 200 300 400 500 600 700 800 900
Pressure (kPa)
Flow Rate (lpm)
Order No. V3010-2C
Metric Units
Total
Slow Rinse
Draw
0
3
6
9
12
15
18
21
24
27
100 200 300 400 500 600 700 800 900
Pressure (kPa)
Flow Rate (lpm)
Order No. V3010-2G
Metric Units
Total
Slow Rinse
Draw
0
10
20
30
40
50
60
70
80
90
100 200 300 400 500 600 700 800 900
Pressure (kPa)
Flow Rate (lpm)
Order No. V3010-2H
Metric Units
Pressure (kPa)
Total
Slow Rinse
Draw
100 200 300 400 500 600 700 800 900
Flow Rate (lpm)
20
40
60
80
100
120
140
160
0

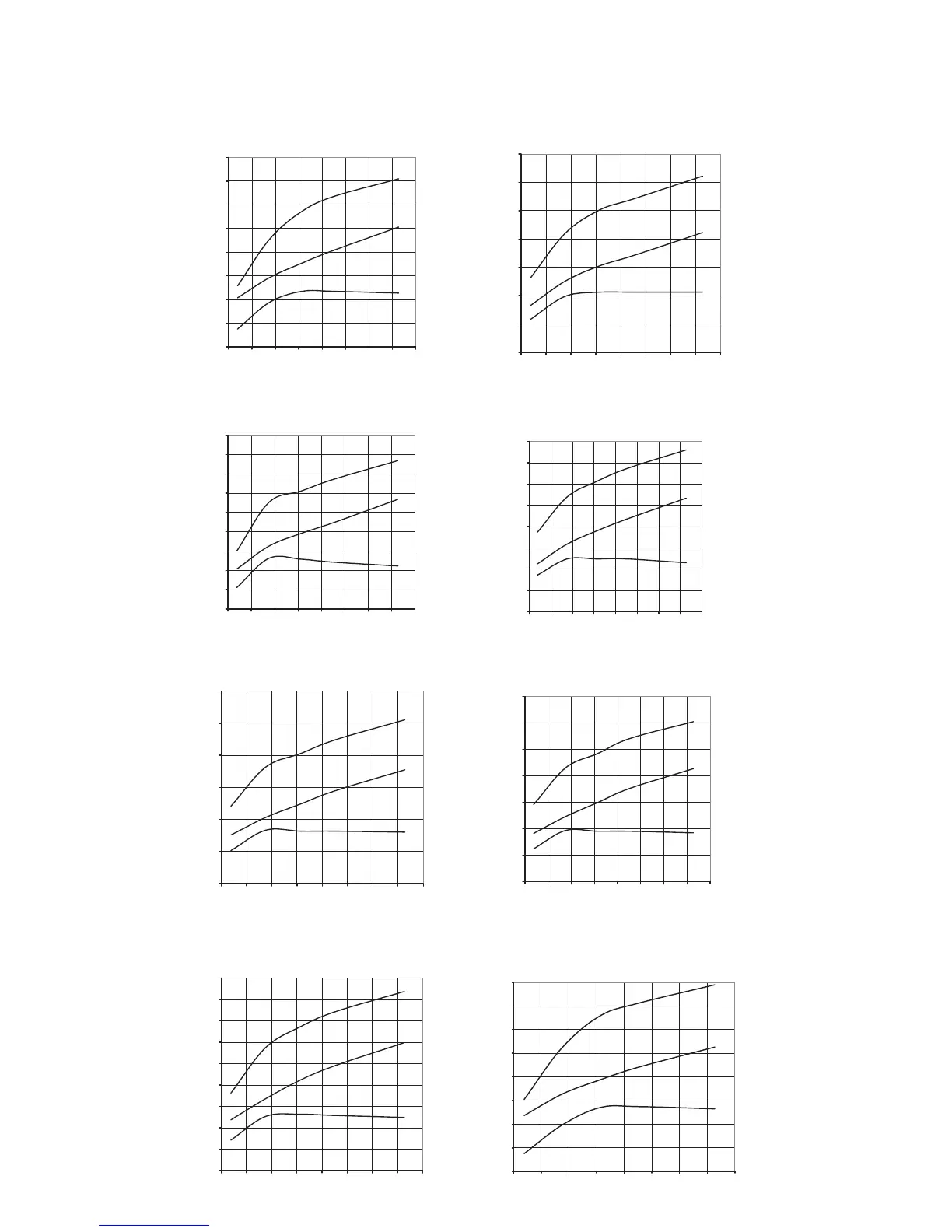

STANDARD INJECTOR GRAPHS (CONTINUED)
