Page 44 WS2H and WS3 Manual
Install D1300-01 upper diffuser (not shown) when using the 4” Quick Disconnect (V3064)
B or indent
indicates BSPT
N or no mark
indicates NPT
Typical meter retaining clip
installation. Ensure clip is fully
engaged in groove and tabs
positioned in slot as shown.

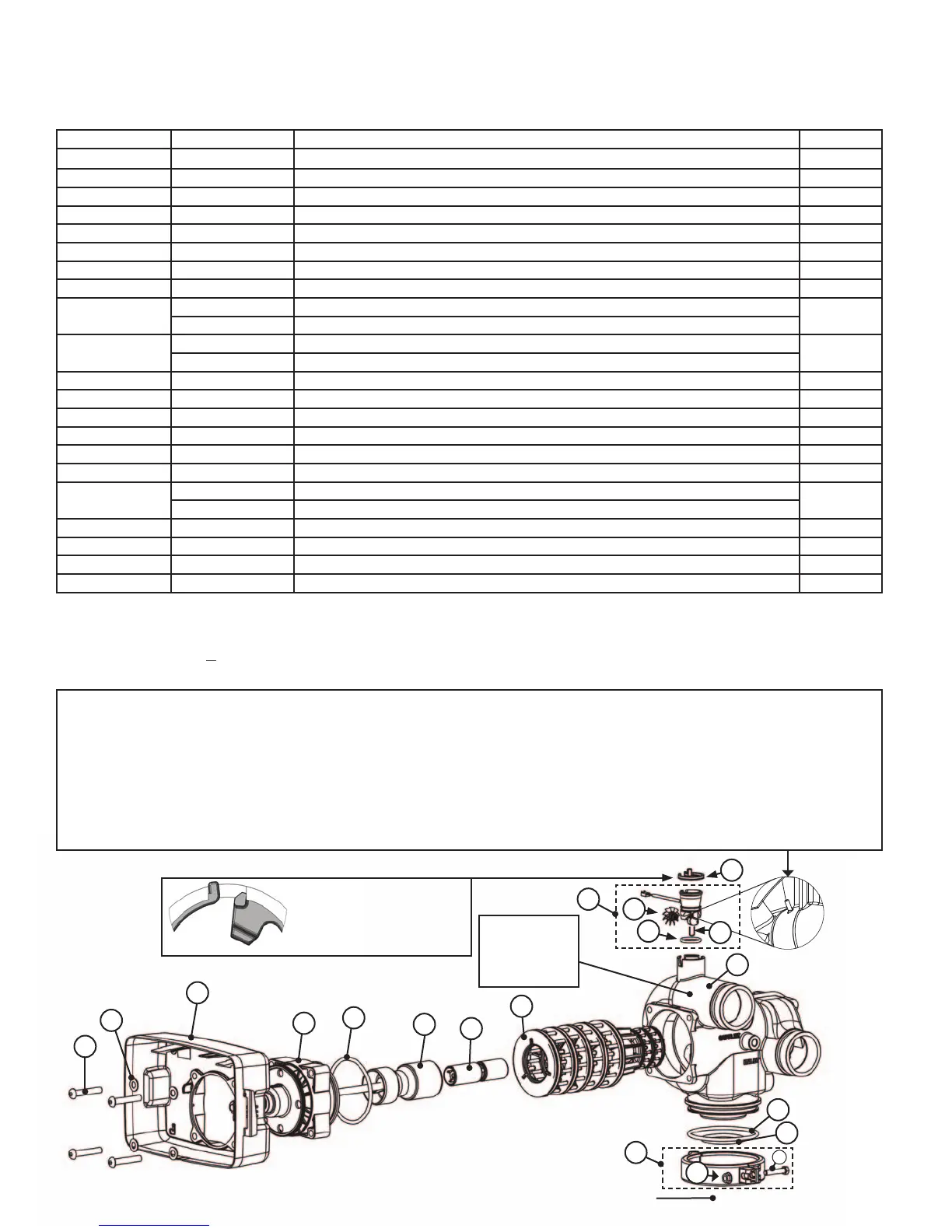

WS2H DRIVE CAP ASSEMBLY, DOWNFLOW PISTON, REGENERANT PISTON, SPACER
STACK ASSEMBLY, DRIVE BACK PLATE, MAIN BODY AND METER
Drawing No. Order No. Description Quantity
1 V3275 WS2H/3 SCW BSHD SS3/8-16X2-1/4 (7/32” hex allen wrench required) 4
2 V3291 WS2H/3 WASHER SS 3/8 4
3 V3225 WS2H/3 BACK PLATE 1
4 V3066 WS2H DRIVE ASY 1
5 V3289 O-RING 344 1
6 V3204-01 WS2H PISTON 1
7 V3238-01*** WS2H/3 BRINE PISTON 1
8 V3065 WS2H STACK ASY 1
Not Shown
V3468-04 WS15/2/3 PLUG 1/4NPT PLST TAPE
2
V3465-04 WS15/2/3 PLG 1/4BSPT PLST TAPE
9
V3201-03 WS15/2/3 PLG 1/4BSPT PLST TAPE
1
V3201BSPT-03 WS2H BSPT BODY W/V3465 PLUG
10 V3632* WS1.5/2/3 METER RETAINING CLIP 1
11 V3003-02 WS1.5/2H METER COMMERCIAL ASY 1
12 V3118-03 WS1.5/2 TURBINE ASY 1
13 V3105 O-RING 215 1
14 V3501 WS1.5/2 TURBINE CLIP 1
15 V3279 O-RING 346 1
16
V3280 O-RING 332 FOR VALVE BODIES WITH NPT THREADS
1
V3452 O-RING 230 FOR VALVE BODIES WITH BSPT THREADS
17 V3054** WS2H 4 IN BASE CLAMP ASY 1
18 V3276 WS2H/3 BOLT HEX SS 5/16-18X1-3/4 1
19 V3269 WS2H/3 NUT 5/16-18 SS HEX 1
Not Shown D1300-01 TOP BAFFLE DFSR CLACK 2/63MM 1
* In 2008 a modi cation was made to Meter Housings to use V3632 WS1.5/2/3 Meter Retaining Clip. Do not use V3632 on old style
housings which have holes through the castings to accept the U-shaped V3223 WS2 Meter Clip.
**V3054 WS2 4 IN BASE CLAMP ASY includes a V3276 WS2 BOLT HEX SS 5/16-18X1-3/4 and V3269 WS2 NUT 5/16-18 SS HEX.
***V3238-01 Brine Piston is used for Backwash Only valves.
THIS WATER METER SHOULD NOT BE USED AS THE PRIMARY MONITORING DEVICE FOR CRITICAL OR HEALTH EFFECT APPLICATIONS.
Service or replace the turbine by:
1. Turn the bypass for the system off and relieve the pressure on the system.
2. Press downward on the remote meter assembly to relieve tension on the retaining clip V3632 (or the U-shaped V3223 WS2 Meter Clip). Remove
the clip and take the meter assembly out of the housing.
3. Remove the bend from the two exposed tips of the retaining clip V3501 and remove clip.
4. Service or replace the V3118-03 WS15/2 Turbine Assembly and place it back in the turbine shaft.
5. Insert the V3501 WS15/2 Turbine Clip and re-bend the exposed ends of the clip. The V3118-03 turbine has a groove to line up with the V3501
WS15/2 Turbine Clip.
6. Insert meter assembly back into the meter housing.
7. Re-install the meter retaining clip V3632 as shown below (or the U-shaped V3223 WS2 Meter Clip).
8. Open the bypass for the system slowly to bring back into service and check to be sure you have no water leaks.
2
1
3
4
5
6
7
8
9
11
12
13
10
14
17
15
19
18
16
