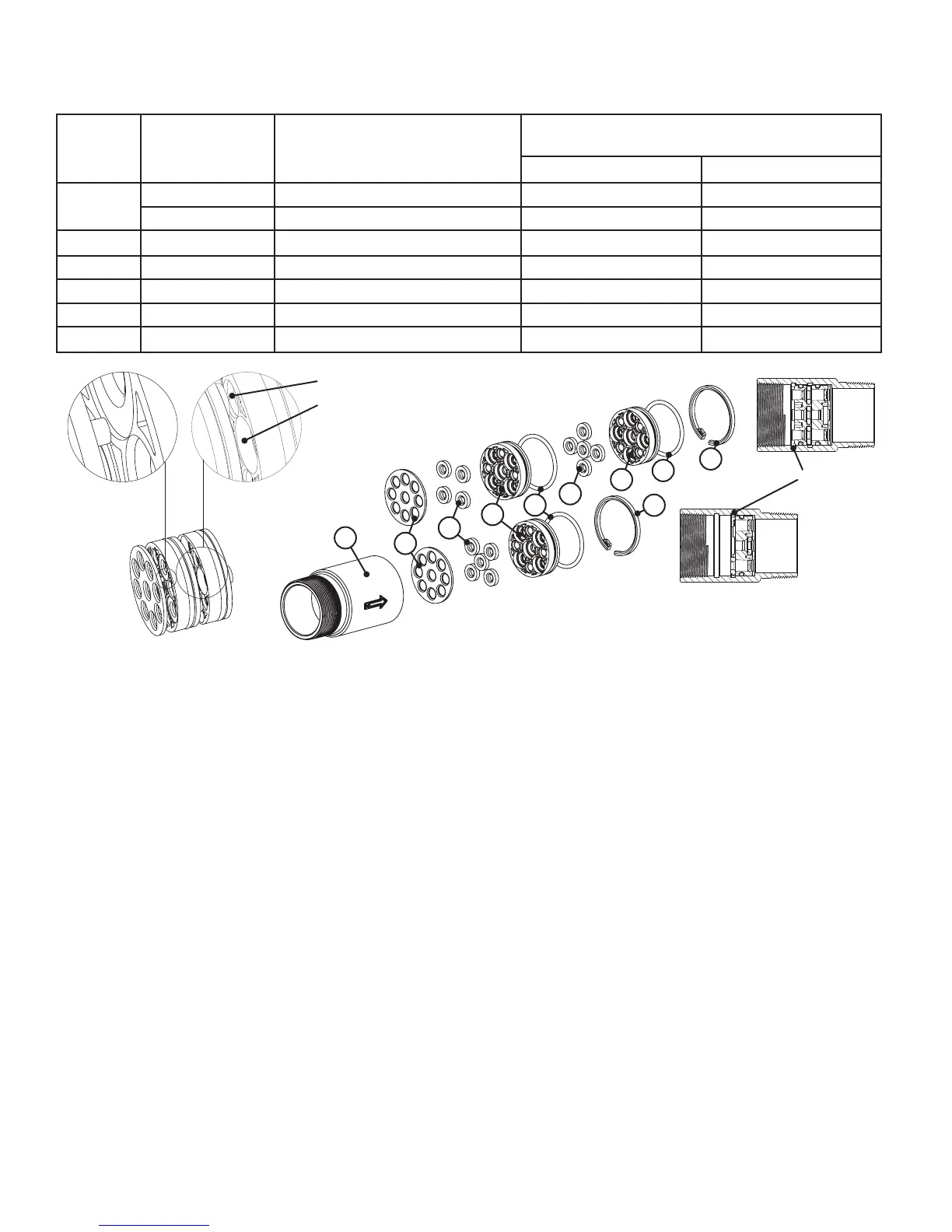

Page 52 WS2H and WS3 Manual
MXF STAINLESS STEEL, 9-225 GPM
Drawing
No.
Order No. Description
Quantity
V3764 V3764BSPT
1
V3765-01 WS3 DLFC HOUSING NPT 1
V3765BSPT-01 WS3 DLFC HOUSING BSPT 1
2 V3766 WS3 DLFC RETAINER 1
1
3 V3767 WS3 DLFC RETAINER COVER 1 1
4 V3768 WS3 DLFC RETAINER RING 1 1
5 V3769 O-RING 336 1-2 1-2
6 V3190-XX See DLFC table 1-9
1-9
Assembly instructions:
1. Determine the desired ow rate. Select a combination of V3190-XXX’s to arrive at the desired ow rate.
2. Using a drill or punch remove the desired knockout(s) in V3766. Each V3766 retainer contains two types of knock
outs. The larger knockouts are removed to install a DLFC. If two V3766 retainers are needed remove the smaller
diameter knockout that lines up with the DLFC installed in the other retainer. One or two V3766 retainers may be
used. When using one V3766 retainer V3190-XXX must be installed in the center hole. When using two V3766
retainers a V3190-XXX must be installed in the center hole of one of the retainers and the center hole on the other
retainer must remain open.
3. Smooth hole(s).
4. Install appropriate size(s) of drain line ow control washers. Pay close attention to proper DLFC orientation.
5. Assemble. Each V3766 retainer must have a V3769 o-ring installed. One each of the V3767 retainer cover and V3768
retainer ring must be used whether one or two V3766 retainers are used. The positioning of the V3768 retainer ring
varies depending on the number of V3766 retainer(s) used. Properly orientate the V3766(s) in the direction of ow.
6. Properly orientate the complete assembly in the direction of ow. Inlet and outlet threads are 3”.
Interlock between two V3766’s
1
4
1
3
6
1
3
6
5
5
V3768
retainer ring
position if
two V3766
are used
Assemblies are shipped without drain line ow control (DLFC) washers.
Larger hole for DLFC installation
Positioning
of V3767 into
V3766
To Next Page
