Clear-Com®
Tempest®2400 2-Channel Wireless Intercom System 53

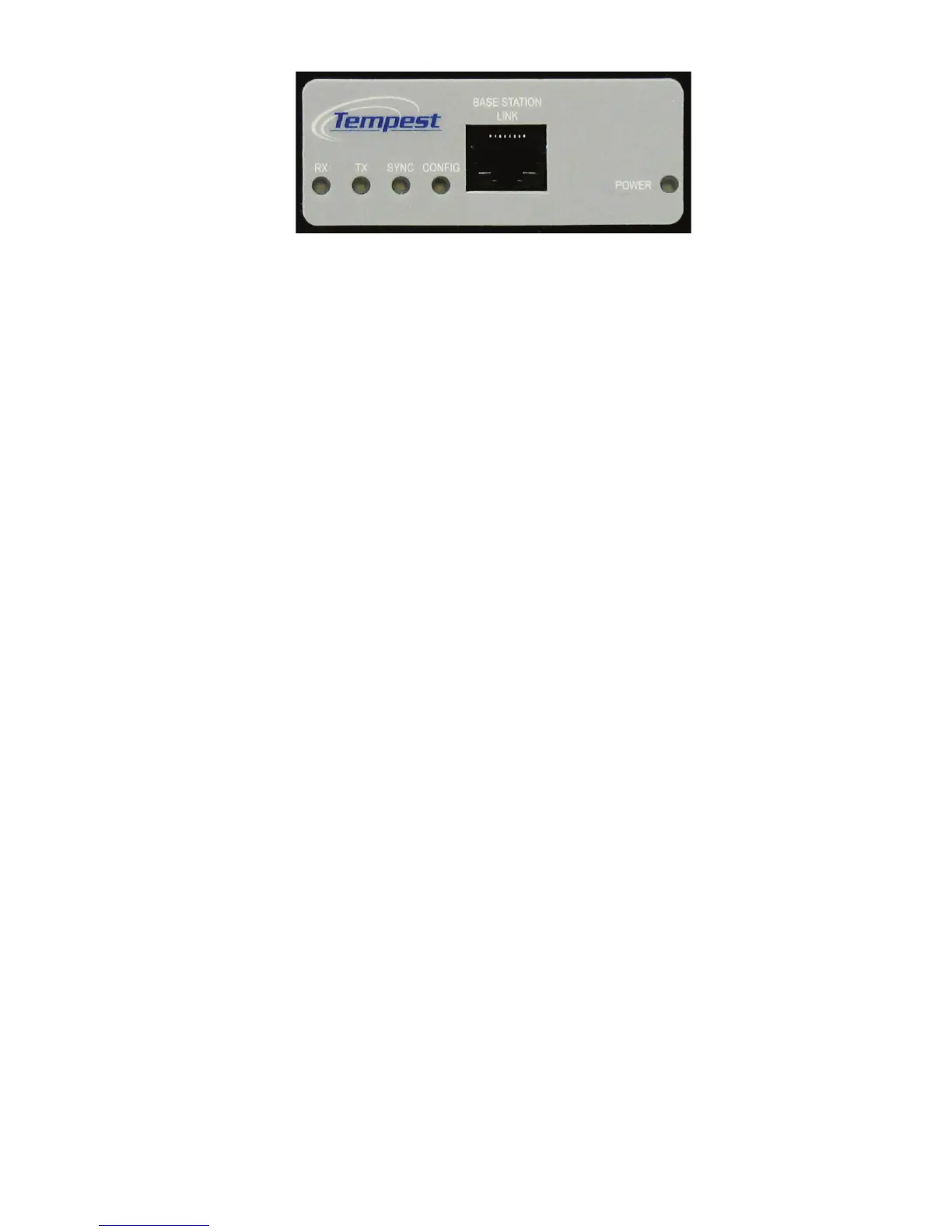

Boom view of the transceiver
Transceiver Controls
1- RX LED
The RX LED illuminates when data is being received by the Remote Transceiver. This LED will remain illuminated during
normal system operaon.
2- TX LED
The TX LED illuminates when data is being sent from the Remote Transceiver. This LED will remain illuminated during
normal system operaon.
3- SYNC LED
The Sync LED illuminates when the Transceiver Sync signal is present. This LED will remain illuminated during normal
system operaon.
4- CONFIG LED
The Cong LED illuminates only when the BaseStaon puts the Remote Transceiver into conguraon mode to change
sengs. This LED should be on for only a few seconds when rst powered on, and o during normal operaon.
5- BASESTATION LINK RJ-45 Connector
The BaseStaon Link RJ-45 connector is used to connect the Transceiver to the Tempest BaseStaon via standard CAT-5
cable with RJ-45 connectors.
6- Power LED
The Power LED illuminates whenever the BaseStaon is providing adequate power to the Transceiver over the CAT-5 cable.
If the Power LED does not light, The CAT-5 cable is damaged or too long to deliver adequate power for the Transceiver to
operate reliably.
Threaded Mounng Holes
Two Threaded Mounng Holes are provided on the back of the Remote Transceiver for use with the mounng bracket to
mount the Transceiver in a convenient locaon. The mounng holes are #8-32 thread and accept a #8-32 x 3/8” pan head
screw.
