IGS-NT Installation Guide
32
1 – 2 n.o.
1 – 3 n.c.
1
K
2 3

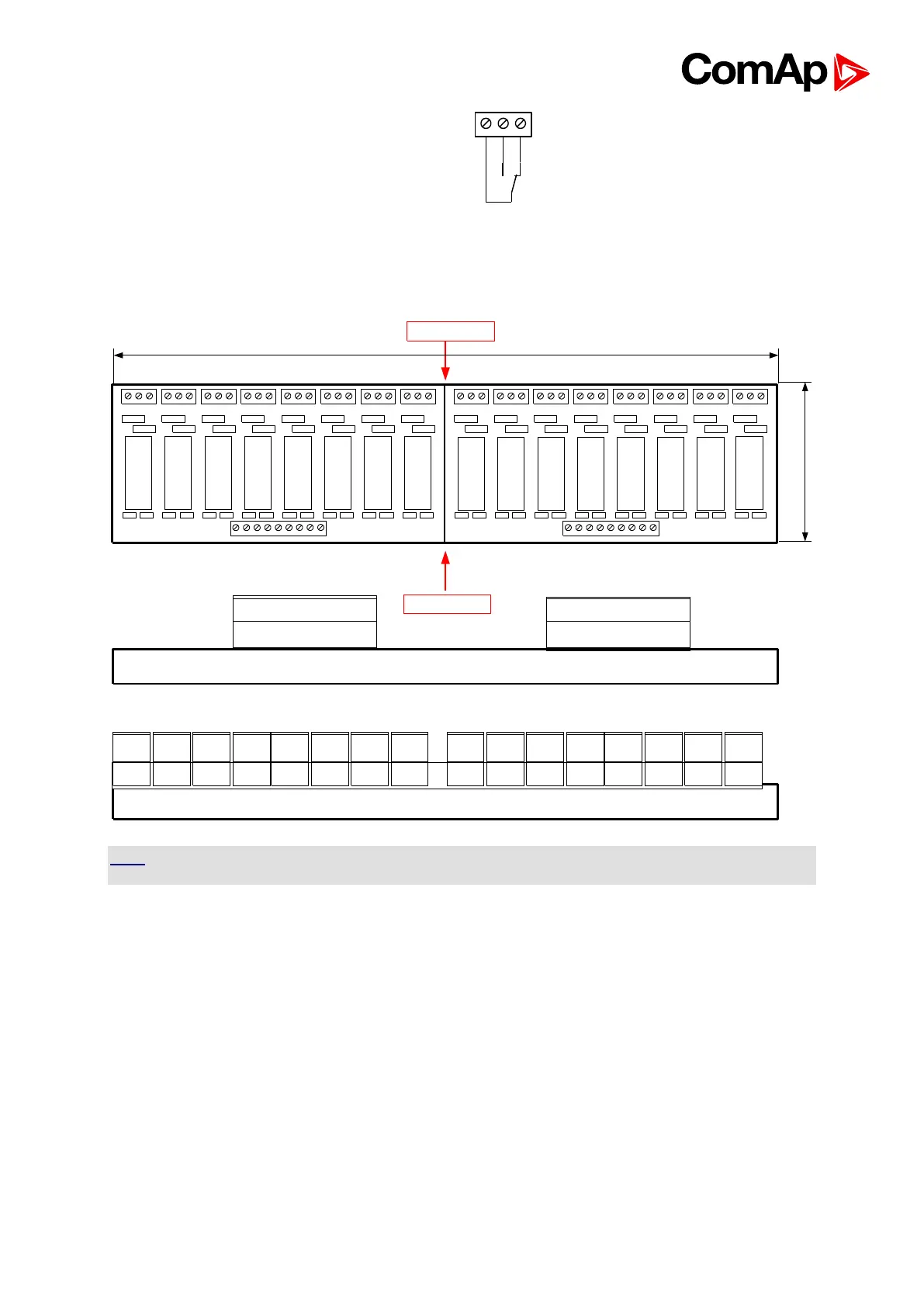

I-RB16/231 board contains relays that can switch 231 VAC load.
I-RB16 can be mounted on DIN rail (35 mm). One unit contains two parts (separate PCBs).
There are 8 relays on each part which is located on common plastic base.
I-RB16 is 60mm high from DIN rail base.
16
X17
11 1 11 1 11
1 +
X18
11 1 11 1 11
RE1
RE2 RE3 ER4 RE5 RE6 RE7 RE8
RE9
RE10 RE11 ER12 RE13 RE14 RE15 RE16
X3
X1
X2X6 X4X5X8 X7X11 X9X10X14 X12X13X16 X15
9 +
8
16 X18 9 +
View B
X18
8 X17 1 +
View B
3 X1 1
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16
View A
3 X2 1 3 X3 1 3 X4 1 3 X5 1 3 X6 1 3 X7 1 3 X8 1 3 X9 1 3 X10 1 3 X11 1 3 X12 1 3 X13 1 3 X14 1 3 X15 1 3 X16 1
View A
300
95
X17
HINT
I-RB contains two separate boards, 8 relays on each. It can be ordered as I-RB8 as well.
5.3.13. I-CR CAN Repeater
I-CR module enables to extend CAN bus line of
• extension modules CAN1 to more than 200 meters
• intercontroller CAN2 to more than 200/900 meters (in 32C/8C mode)
More application details are in separate manual “Extending the CAN bus” and in
Communication guide for IGS and IM controllers.
