Ld shed delay
Ld shed delay
Ld shed delay
BO LdShed stage 1
BO LdShed stage 2
BO LdShed stage 3
Ld shed level
Mains import or
gen-sets power
Time
Ld recon delay
Ld recon delay
Ld recon delay
BO LdShed stage 1
BO LdShed stage 2
BO LdShed stage 3
Ld recon level
Time
Mains import or
gen-sets power
Ld recon delay
Ld recon delay
Ld recon delay
BO LdShed stage 1
BO LdShed stage 2
BO LdShed stage 3
Ld recon level
Mains import or
gen-sets power
Time
BI ManualLdRecon

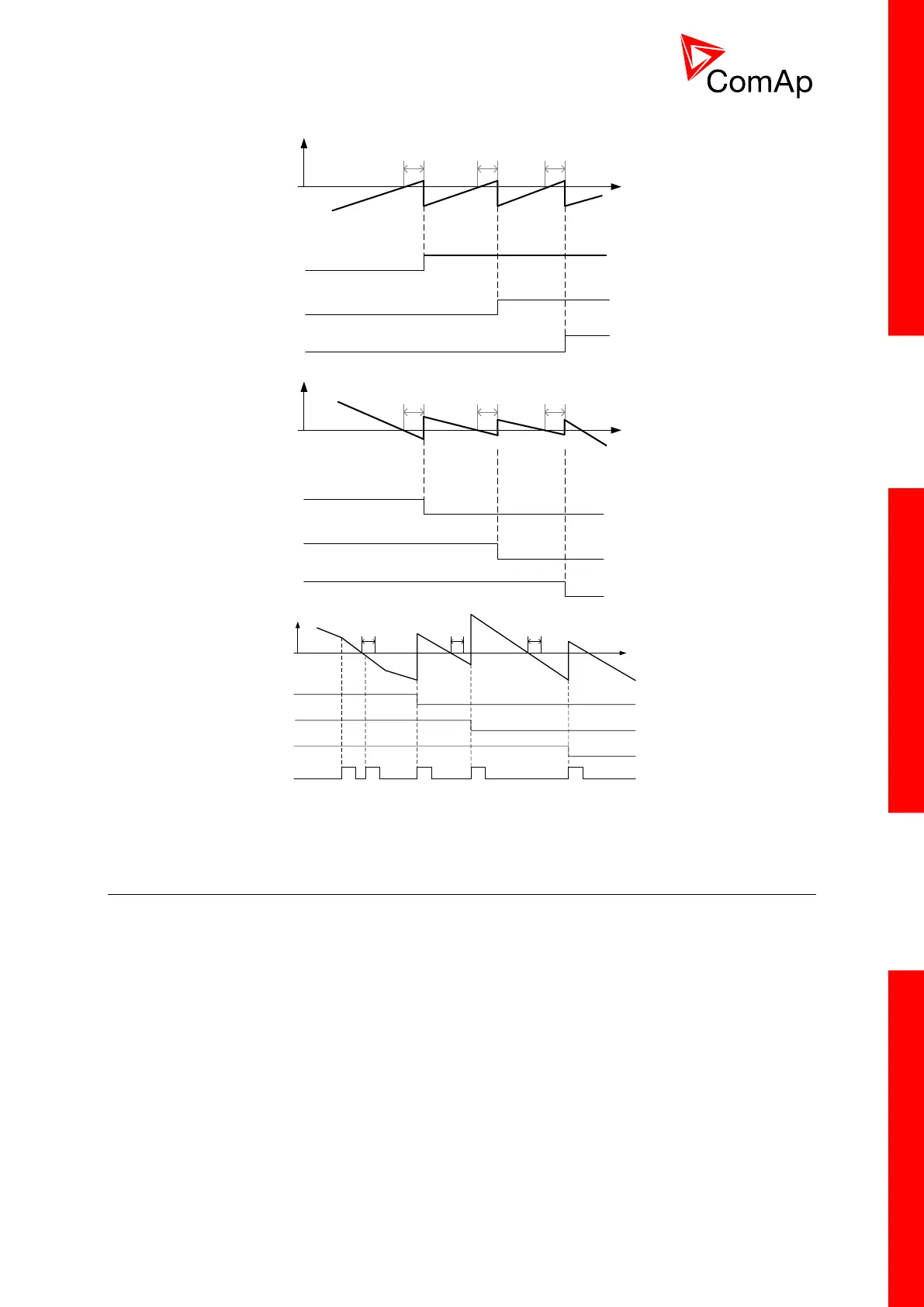

Figure: Examples of load shedding and load reconnection (load shed, load recon, manual load recon)
7.5 Remote Alarm Messaging
It is possible to use up to five channels for Active Call, Email and SMS upon defined type of Alarm. It
is possible to define protection type for all ENABLED channels to react. All the possibilities in
InteliMains are: History record, Alarm only, Warning, Breaker open and BrkOpen w/Reset. Find more
information about alarm types in the chapter Protections and alarm management.
7.5.1 Communication Types for Remote Alarm Messaging
Below there all types of communication available for each Active Call channel.

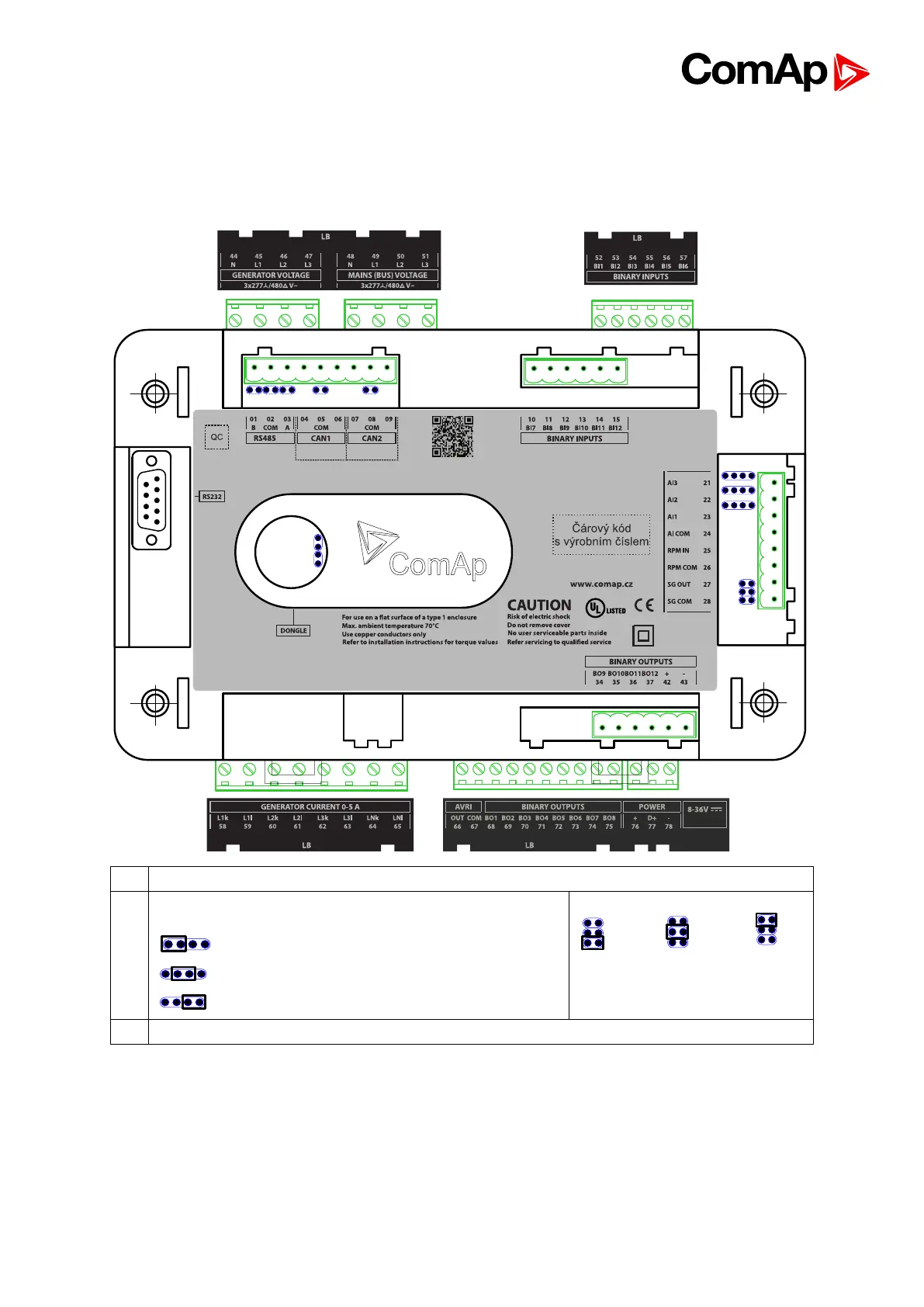

DATA-ANA: This option sends a complete archive to the recipient's PC via analog modem. An analog
modem must be connected either to one of controller COM ports or to one of I-LB modules connected
to the controller via CAN2 bus. The channel address must contain complete telephone number of the
recipient's PC where InteliMonitor is running in Active call receiving mode.
