InteliMains
NT
, SW version 3.0
InteliMains-NT-BTB-3.0-Reference Guide.pdf, ©ComAp – June 2013

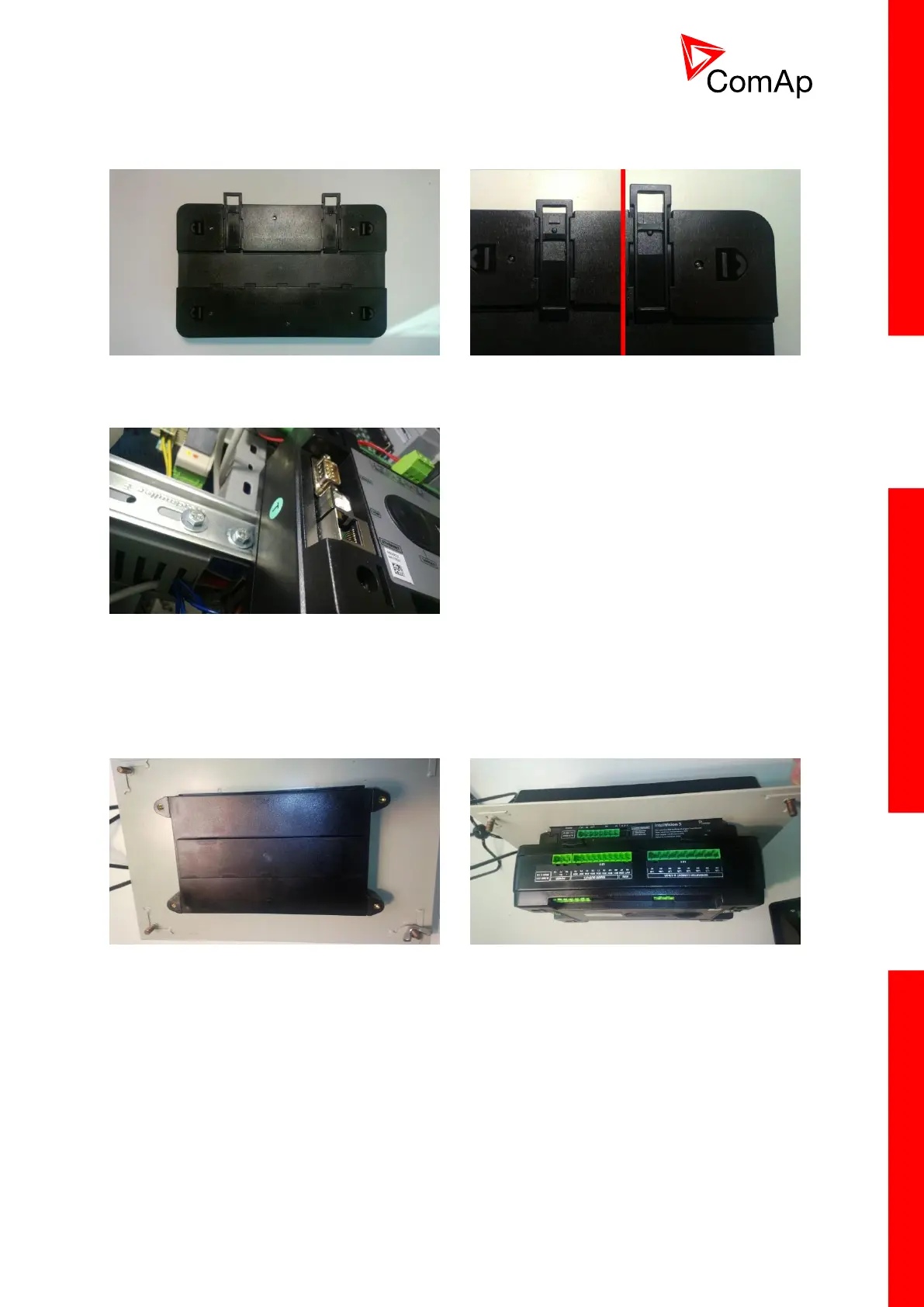

3.2.1 Mounting
BaseBox units are prepared for mounting on DIN rain mount (35mm).
Locate two plastic holders on the back side of the
controller
Make sure both holders are in open position (right
image). If not (left image) open them by pulling
them slightly out
Mount the unit on the DIN rail and secure by
pressing two plastic holder until they click and fix
the unit into position
BaseBox units may also be mounted on InteliVision 5 and together with it mounted into cut-out
in a switchboard.
Mount InteliVision 5 into the switchboard cut-out
(for more information on InteliVision 5 mounting
please refer to the InteliVision 5 Reference
Guide)
Use the rail provided on the back side of
InteliVision 5 and mount the controller to it while
following the same steps when mounting on
standard rail (rail openings on InteliVision 5 are
fixed so there is only one possible way how to
mount the controller to it)
