The binary inputs for external buttons may be the following: GCBButton,
MCBButton, FaultResButton, HornResButton, StartButton, StopButton etc.

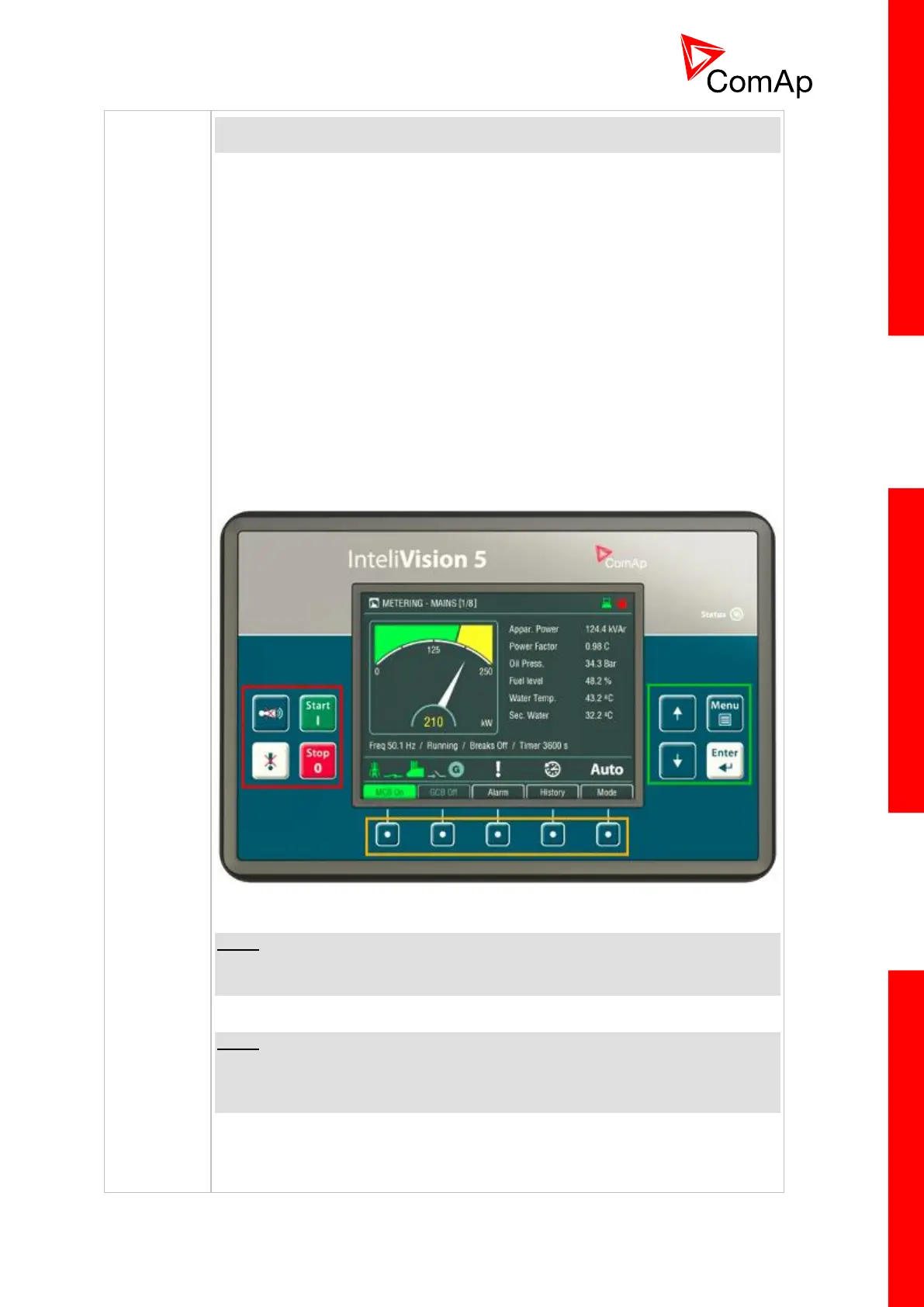

IGS-NT-BB with IV-5 display
Situation is depicted in the following figure.
Buttons in red box are inactive when EXTBUTTONS option is selected
and active when PANEL or BOTH option is selected.
Buttons in green box are active when any option is selected.
Behavior of buttons in orange box depends on functions assigned to
each button individually. If any function in the list in the note below is
assigned to these buttons then it behaves as buttons in the red box, if
any other function is assigned to these buttons it behaves as buttons in
the green box.
The binary inputs for external buttons are affected in the same way as in
the case of IGS-NT (built-in monochrome display) by this setpoint.
NOTE:
In the case that more IV displays are connected they all behave the same (they
are all clones of each other).
NOTE:
The binary inputs for external buttonst may be the following (depending on used
application): GCBButton, MCBButton, MGCBButton, FDRButton, BTBButton,
FaultResButton, HornResButton, StartButton, StopButton etc.
IGS-NT-BB with IV-8 display
