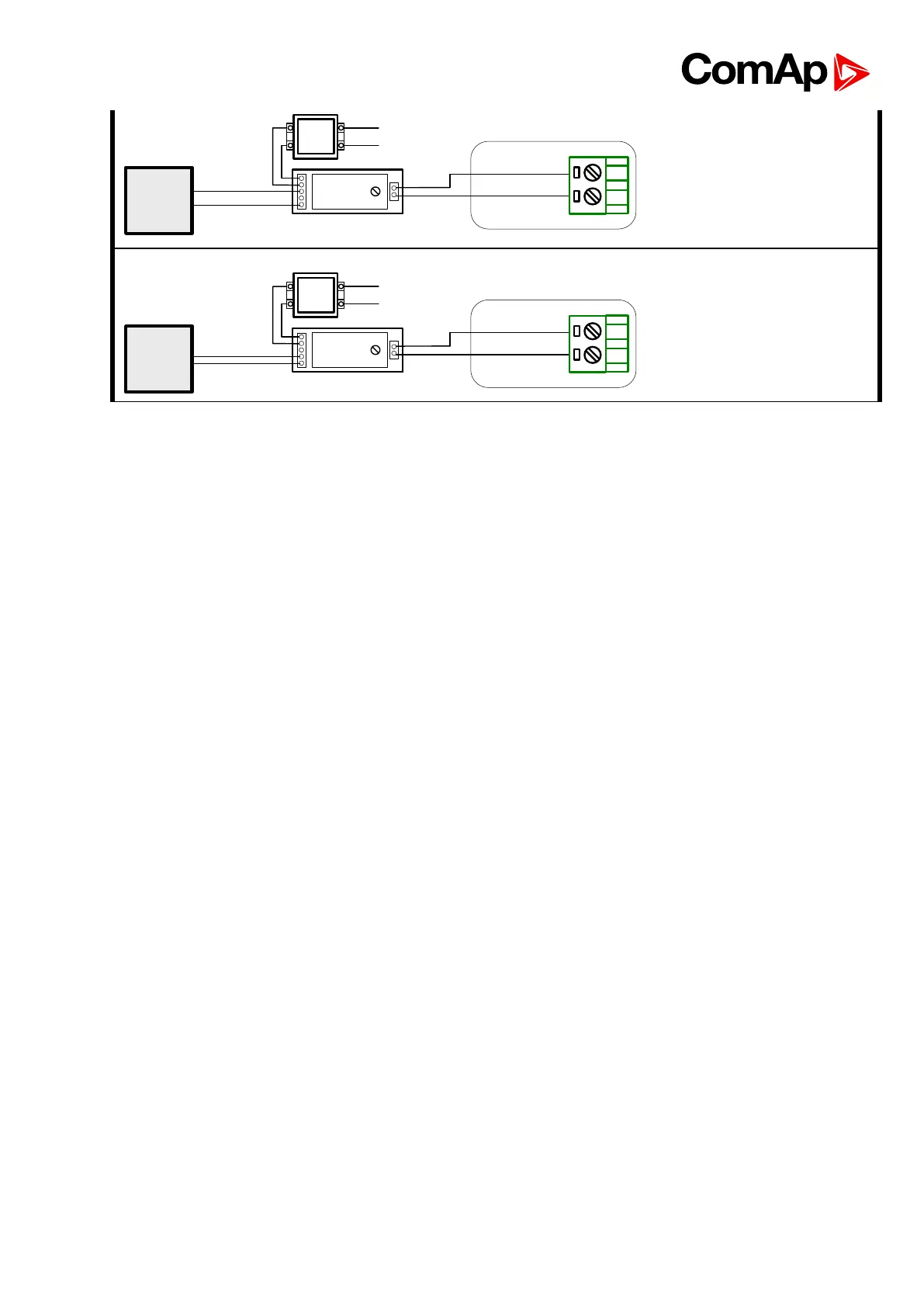

IGS-NT Installation Guide
137
AVRi+
AVRi-
18VAC
From
generator
OUT1
AVRi
230/400VAC
0VAC
AVRI COM
AVRI OUT
IG- AVRi
TRANS
IG-
OUT2
A2
A1
Volt/PF ctrl:
AVR DCout bias = 50%
VoltRegChar = POSITIVE
SINCRO AVR BL4 or AVR BL3
AVRi+
AVRi-
18VAC
From
generator
OUT1
AVRi
230/400VAC
0VAC
AVRI COM
AVRI OUT
IG- AVRi
TRANS
IG-
COM
POT
EXT
AVRi trim to middle position
Volt/PF ctrl:
AVR DCout bias = 20%
VoltRegChar = NEGATIVE
