IGS-NT Installation Guide
96
A
B
C
D
+
R1
R2

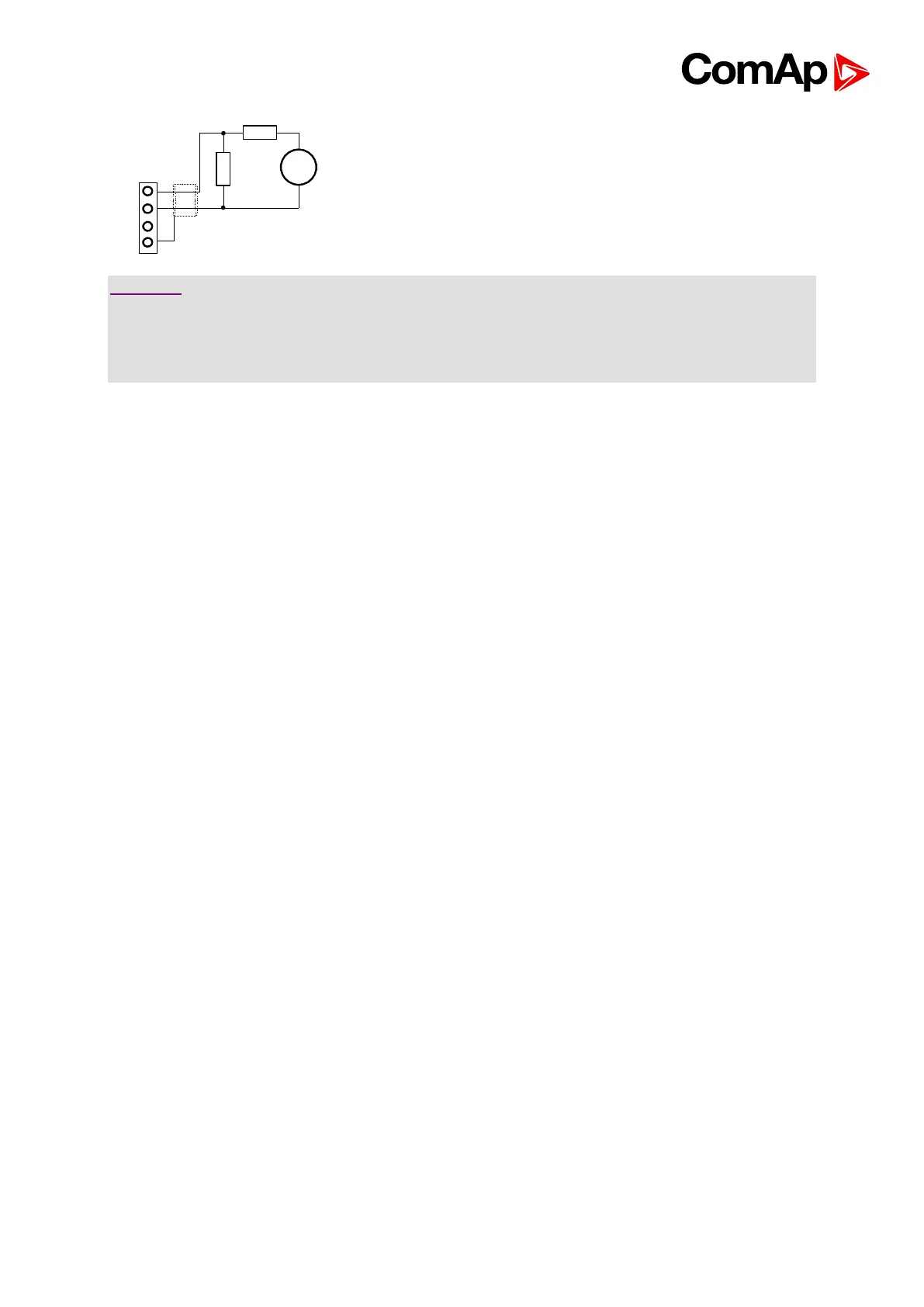

For 10V input voltage range connect external resistors
R1, R2 and select sensor characteristic 10V.
R1=10 kohm, R2=2,7 kohm.
D terminal is shielding
CAUTION!
Thermocouples connected to IS-AIN8 hardware versions below 5.0 must be galvanically
separated from the frame.
If the thermocouples are connected to IS-AIN8, appropriate jumpers must be removed (see
rear sticker).
