4.6.7 MRS application: Split Phase
G
L1 L2 N
L2
L1
N
N
Figure 4.15

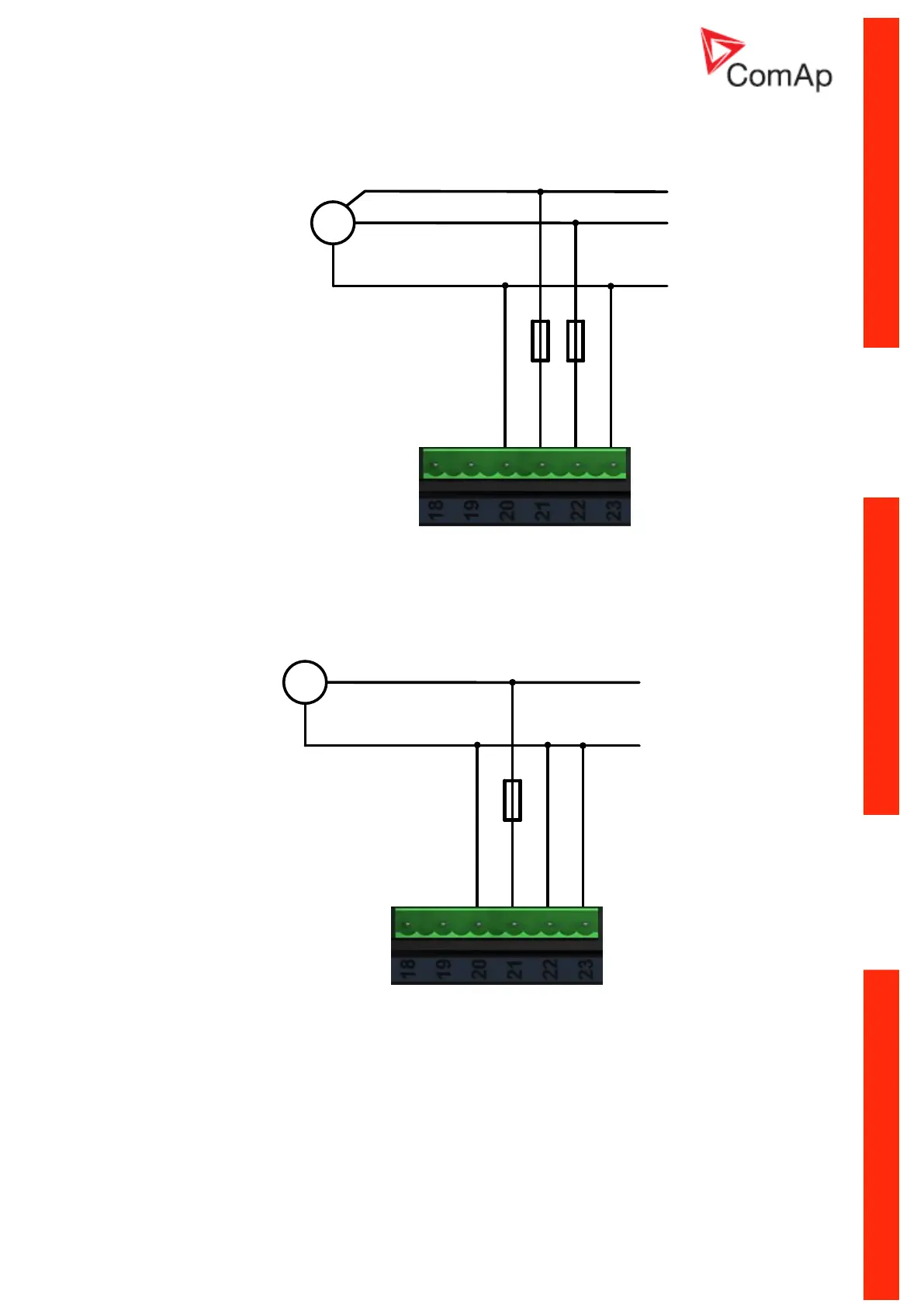

MRS APPLICATION SPLIT PHASE TERMINALS CONNECTION
4.6.8 MRS application: Mono Phase
G
L1 N N
L1
N
N
Figure 4.16
MRS APPLICATION MONO PHASE TERMINALS CONNECTION
