ComAp InteliNano NT Plus

InteliNano-NT Plus, SW version 2.0.1.x, ©ComAp – July 2015
28

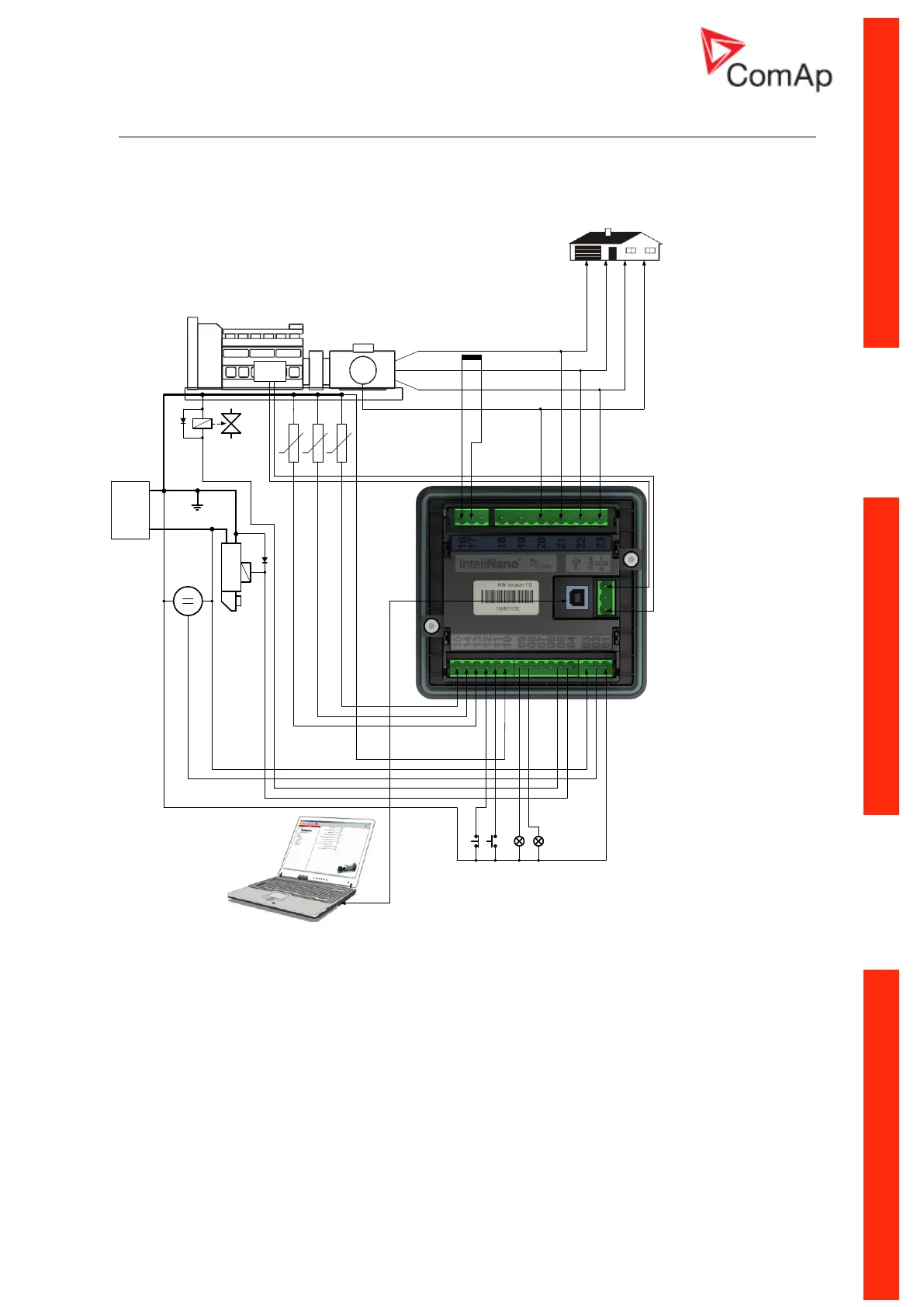

MRS application wiring diagram 5.2
G
ECU
DIESEL / GASOLINE ENGINE GENERATOR
LOAD
Fuel Solenoid
Battery
Sarter
Fuel Level Analog Coolant Temperature Analog Oil Pressure Analog
D+
-
+
Ready To Load Fuel Solenoid Starter COM Remote Start And Load Emergency Stop
CAN
L COM H
USB
Battery + Battery - D +
L1
L2
L3
N
k l
Alarm
PC
Figure 5.2
TYPICAL WIRING DIAGRAM OF MRS APPLICATION
