Analog inputs 4.10
The analog inputs are designed for resistive automotive type sensors like VDO or DATCON. The
sensors are connected either by one wire (the second pole is sensor body) or by two wires.
CAUTION!
In case of grounded sensors connect the terminal T10 to the engine body as near the sensor as
possible!
CAUTION!
In case of isolated sensors connect the terminal T10 to the negative power supply terminal of the
controller as well as the opposite poles of the sensors!
NOTE:
Value #### is displayed when measured value is out of range or sensor’s wire is broken.
+ -

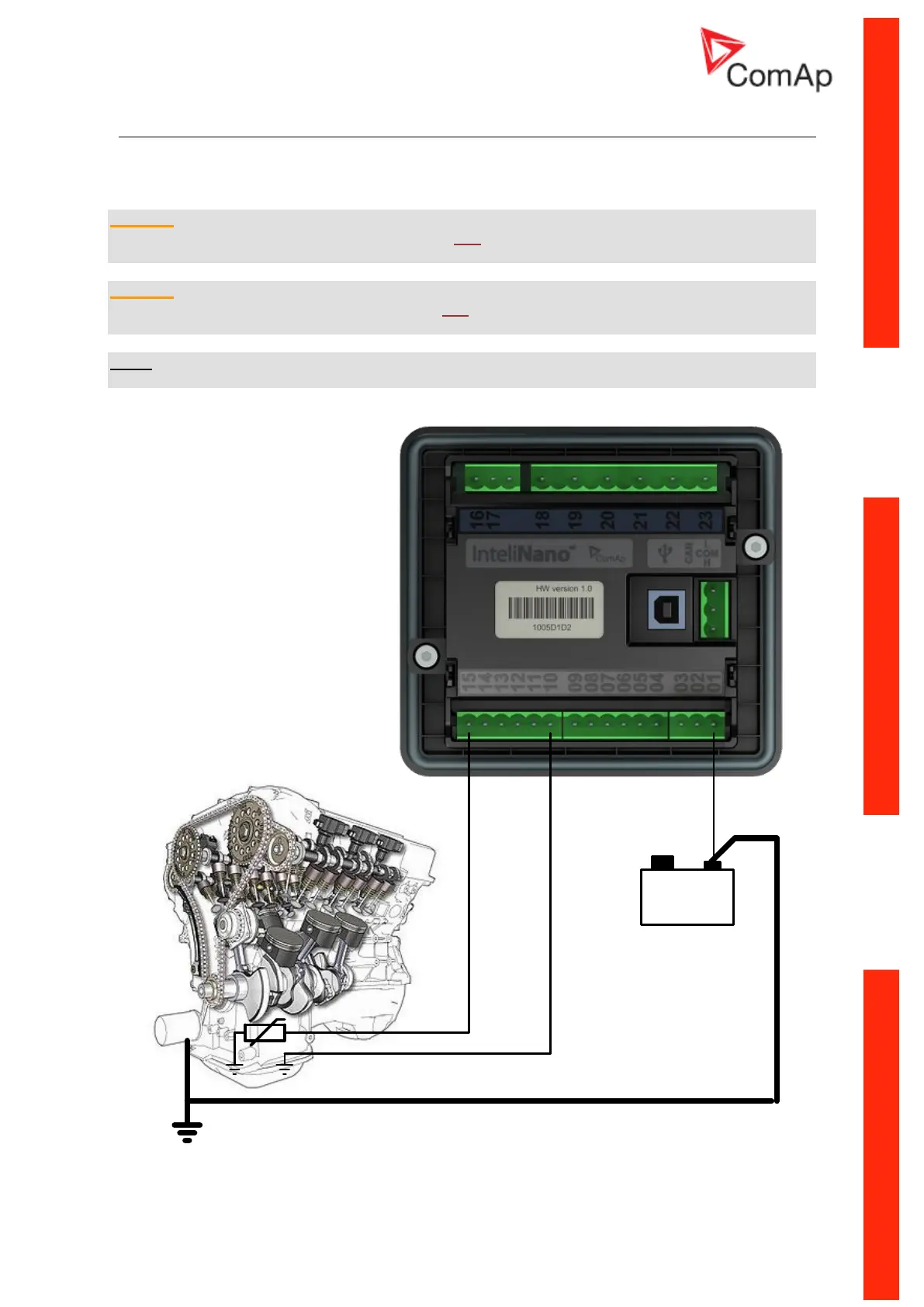

Oil Pressure (T15)
Analog COM (T10)
Figure 4.20
WIRING OF ANALOG INPUTS - GROUNDED SENSORS
