ComAp InteliNano NT Plus

InteliNano-NT Plus, SW version 2.0.1.x, ©ComAp – July 2015
8

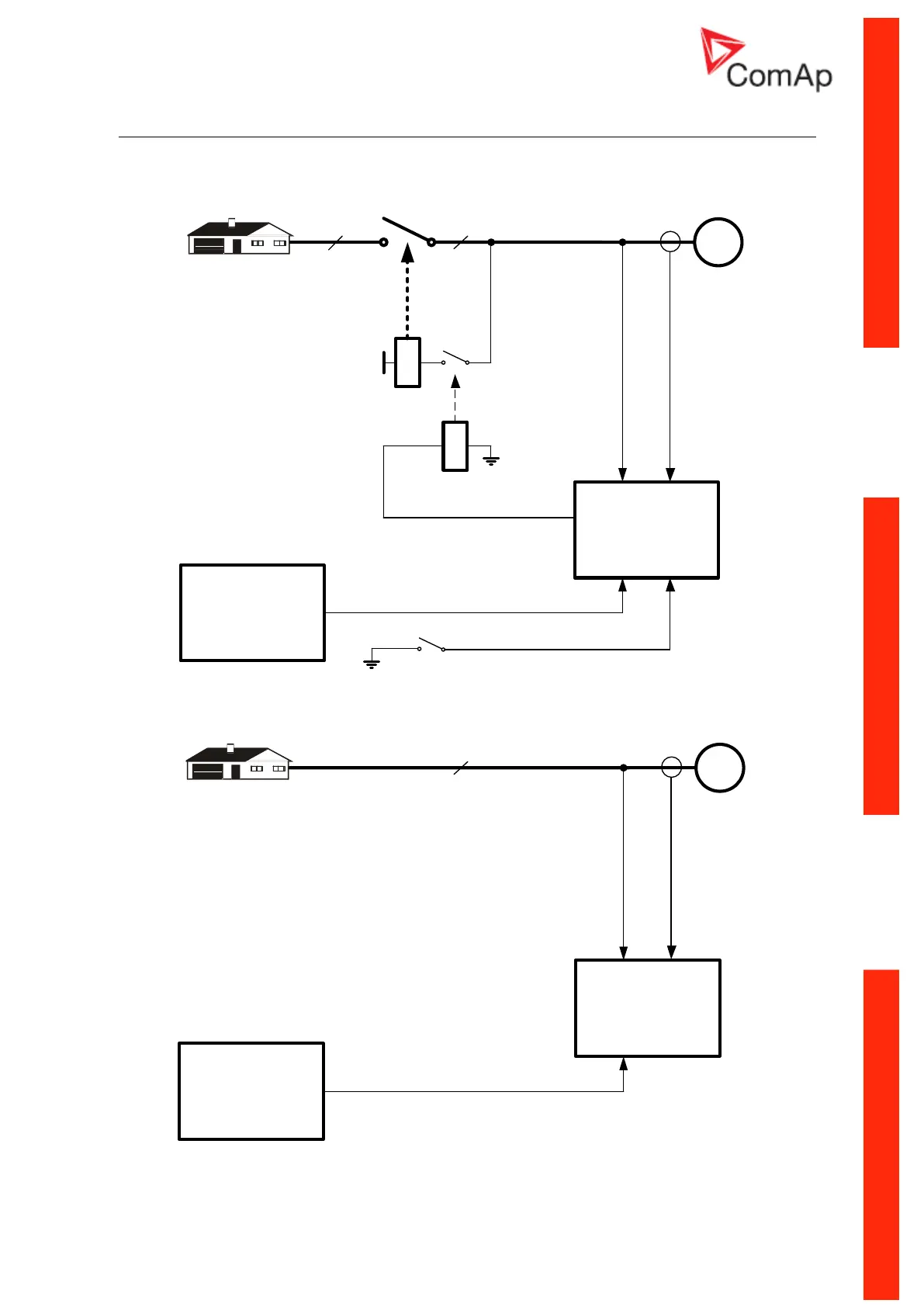

MRS – Manual Remote Start 3.2
The InteliNano
NT
Plus can be used as an MRS controller with a generator circuit breaker – GCB
(Figure 3.2) or without a breaker (Figure 3.3).
GCB
3x
K1
GCB
K1
GCB CLOSE/OPEN
GCB
REMOTE START/STOP
GCB FEEDBACK
G
3Ph GENERATOR VOLTAGE
3x
InteliNano
BO
BI
ATS
BO
1Ph GENERATOR CURRENT
Figure 3.2
MRS APPLICATION WITH GCB CONTROL
REMOTE START/STOP
G
3Ph GENERATOR VOLTAGE
3x
InteliNano
BI
ATS
BO
1Ph GENERATOR CURRENT
Figure 3.3
SIMPLE MRS APPLICATION
