InteliNano-NT Plus, SW version 2.0.1.x, ©ComAp – July 2015
24
Binary outputs 4.9
Use minimal 1 mm
2
cables for wiring of binary outputs T06, T07, T08 and T09. 2,5 mm
2
cables are
required for high current outputs T04 and T05. For more technical detail see chapter 13.5 Binary
outputs.
WARNING!
Controller outputs switch high side! Never connect any analog sensor to this output to avoid
sensor damage. All outputs are short circuit protected.
Use suppression diodes on all relays and other inductive loads!

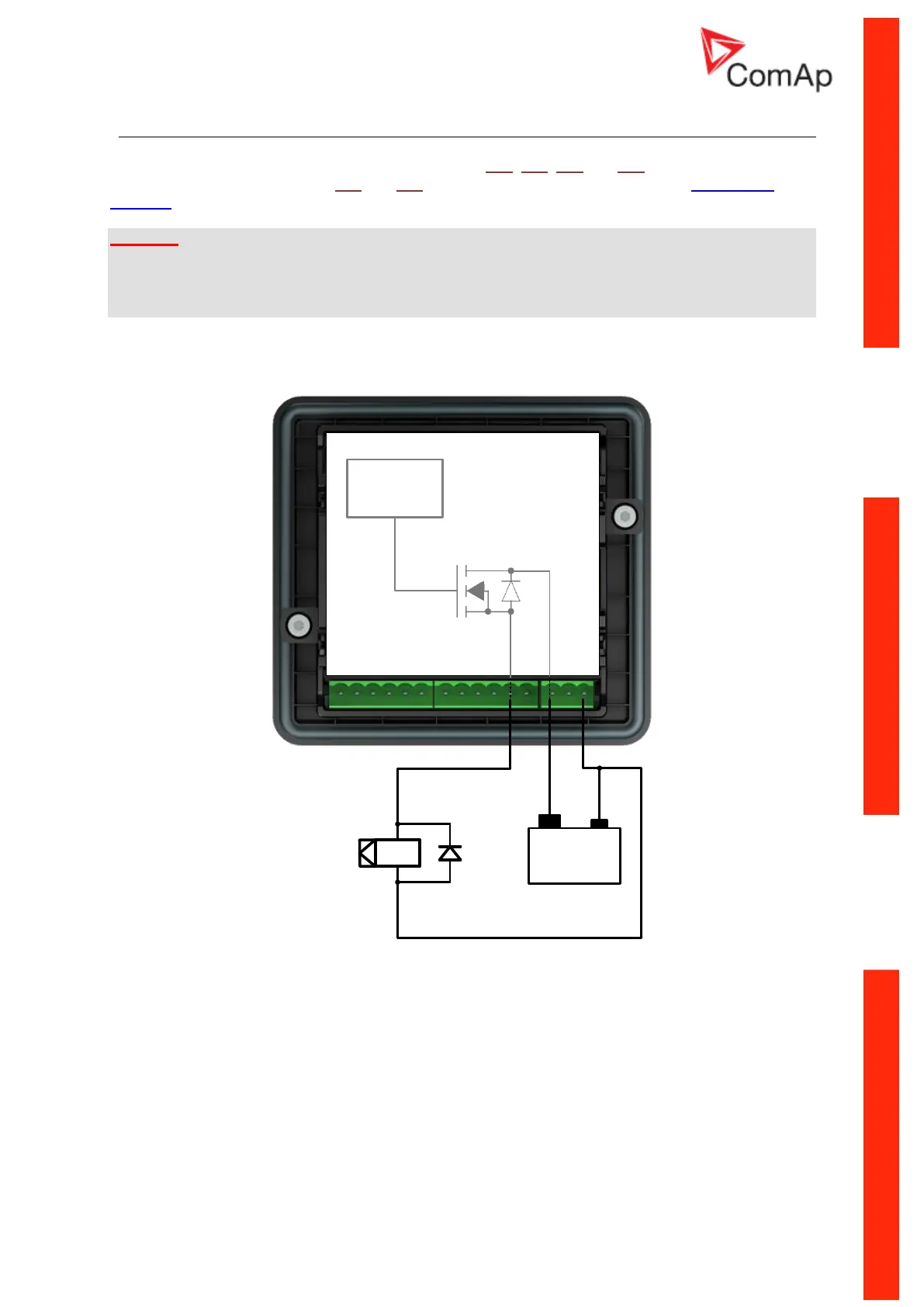

Figure 4.19
RECOMMENDED BINARY OUTPUT WIRING
